Radial Insert Ball Bearings with Eccentric Locking Collar

INA from Schaeffler classic radial insert ball bearings are located on the shaft with a locking collar. They are suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation.

The locking collar is preferably tightened in the direction of rotation and secured with a grub screw. This location method prevents damage to the shaft and can be easily loosened again.

The P seal is two zinc-coated sheet steel washers with intermediate NBR part, seal lip axially preloaded.

The R seal is two zinc-coated sheet steel washers extended outwards and angled downwards with intermediate NBR part and radially preloaded seal lip. Better protection against mechanical damage.
Substantial grease reservoir due to the space between the extended and angled sheet steel washers. Used in radial insert ball bearings with inner ring extended on both sides.

To protect the seal lip from mechanical damage, the outer sheet steel washer extends a considerable distance down towards the bearing inner ring.

In addition to bearings with a spherical outer ring (GRAE..-NPP-B and GE..-KRR-B), there are also cylindrical (RAE..-NPP and RALE..-NPP)

Features and Benefits

• Lower operating costs

• Reduced maintenance due to improved lubrication

• Lower heat generation

• Less noise

• Protected against fretting corrosion

• Shaft diameters from 12 mm to 60 mm (RAE..NPP) and (GRAE..-NPP-B)

• Shaft diameters from 20 mm to 30 mm (RALE..NPP)

• Shaft diameters from 17 mm to 120 mm (GE..-KRR-B)

Suffixes

FA106 - Bearing subjected to special noise testing

B - Bearing with special outer ring

NPP - Lip seals on both sides (P type seal)

KRR - Lip seals on both sides (R type seal)

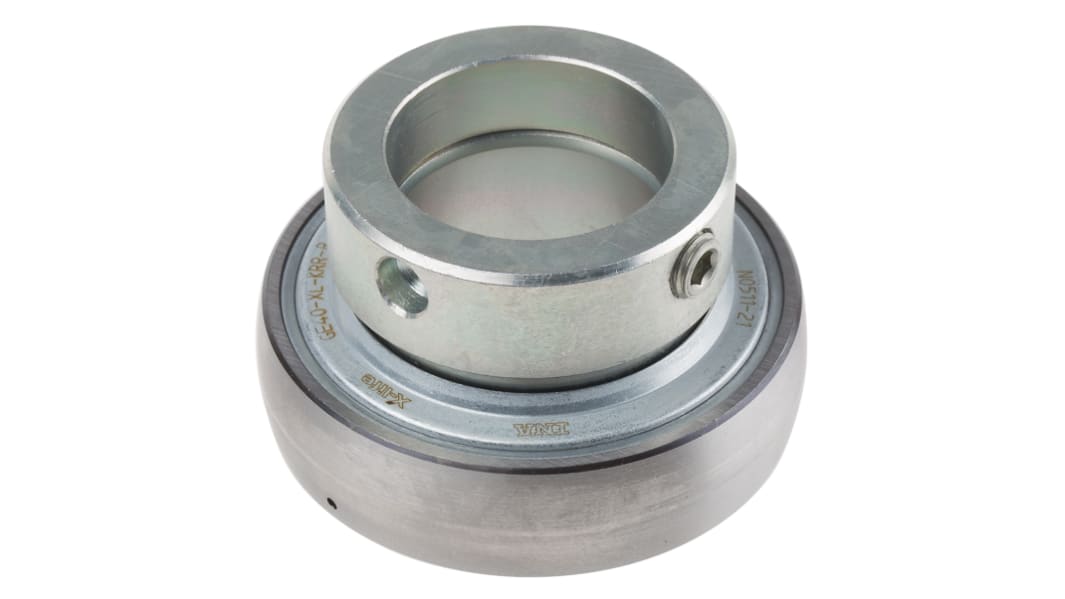

Schaeffler Bearing Inserts, 40mm Inside Diameter, 80mm Outside Diameter - GE40-XL-KRR-B

This bearing insert is designed for high-performance applications in various industrial settings. With an inside diameter of 40mm and an outside diameter of 80mm, it effectively handles demanding conditions. Constructed from steel, this product combines durability with exceptional engineering for optimal performance.

Features & Benefits

• High static load rating of 19,800N for reliability
• Dynamic load rating reaches 32,500N for robust performance
• Steel construction ensures longevity and strength
• Precision design for smooth operation and reduced friction
• Compatible with a variety of industrial applications
• Ideal for automation and mechanical use

Applications

• Used with machinery in automation systems
• Suitable for in electrical and mechanical engineering
• Effective in low to high speed and load conditions
• Utilised in high-performance bearing configurations
• Integrates seamlessly with various industrial setups

What load capacities are supported by this bearing insert?

The bearing insert offers a static load rating of 19,800N and a dynamic load rating of up to 32,500N, making it suitable for diverse load conditions.

How does the steel material contribute to its performance?

The steel construction enhances durability and resistance to wear, ensuring reliable operation across various industrial environments while maintaining precision.

In what situations would this product be preferred over others?

It is preferred in applications where both high load capacities and precision are required, especially in automation and mechanical systems where reliability is crucial.

Can this insert be used in high-speed applications?

Yes, its dynamic load rating and precision design make it suitable for high-speed applications, ensuring smooth operation without excessive wear.

INA

Units	Per unit
1 - 4	£48.33
5 - 9	£46.98
10 - 24	£45.72
25 +	£44.51

Select all	Attribute	Value
	Brand	INA
	Inside Diameter	40mm
	Outside Diameter	80mm
	Material	Steel
	Static Load Rating	19800N
	Dynamic Load Rating	32500N

	Select all
	Brand INA
	Inside Diameter 40mm
	Outside Diameter 80mm
	Material Steel
	Static Load Rating 19800N
	Dynamic Load Rating 32500N

INA Bearing Inserts 40mm ID 80mm OD GE40-XL-KRR-B
