Radial Insert Ball Bearings with Rubber Interliner

INA from Schaeffler radial insert ball bearings with rubber interliners are on the shaft using an eccentric locking collar. The outer ring is encased in a thick-walled NBR interliner which absorbs vibrations and shocks. The interliners have either a spherical or cylindrical outside surface.

The P seal is two zinc-coated sheet steel washers with intermediate NBR part, seal lip axially preloaded.

To protect the seal lip from mechanical damage, the outer sheet steel washer extends a considerable distance down towards the bearing inner ring.

Used in narrow radial insert ball bearings with inner ring extended on one side.

Features and Benefits

• Lower operating costs

• Reduced maintenance due to improved lubrication

• Lower heat generation

• Less noise

• Inner ring and locking collar have anti-corrosion protection

• Shaft diameters from 12 mm to 50 mm (RABRB)

• Shaft diameters 20 mm (RCRA) 25 mm (RCRB)

• Shaft diameters 30 mm (RCSMA) 15 mm to 25 mm (RCSMB)

Product Application Information

Bearings with rubber interliners cannot be lubricated.

Suffixes

FA106 - Bearing subjected to special noise testing

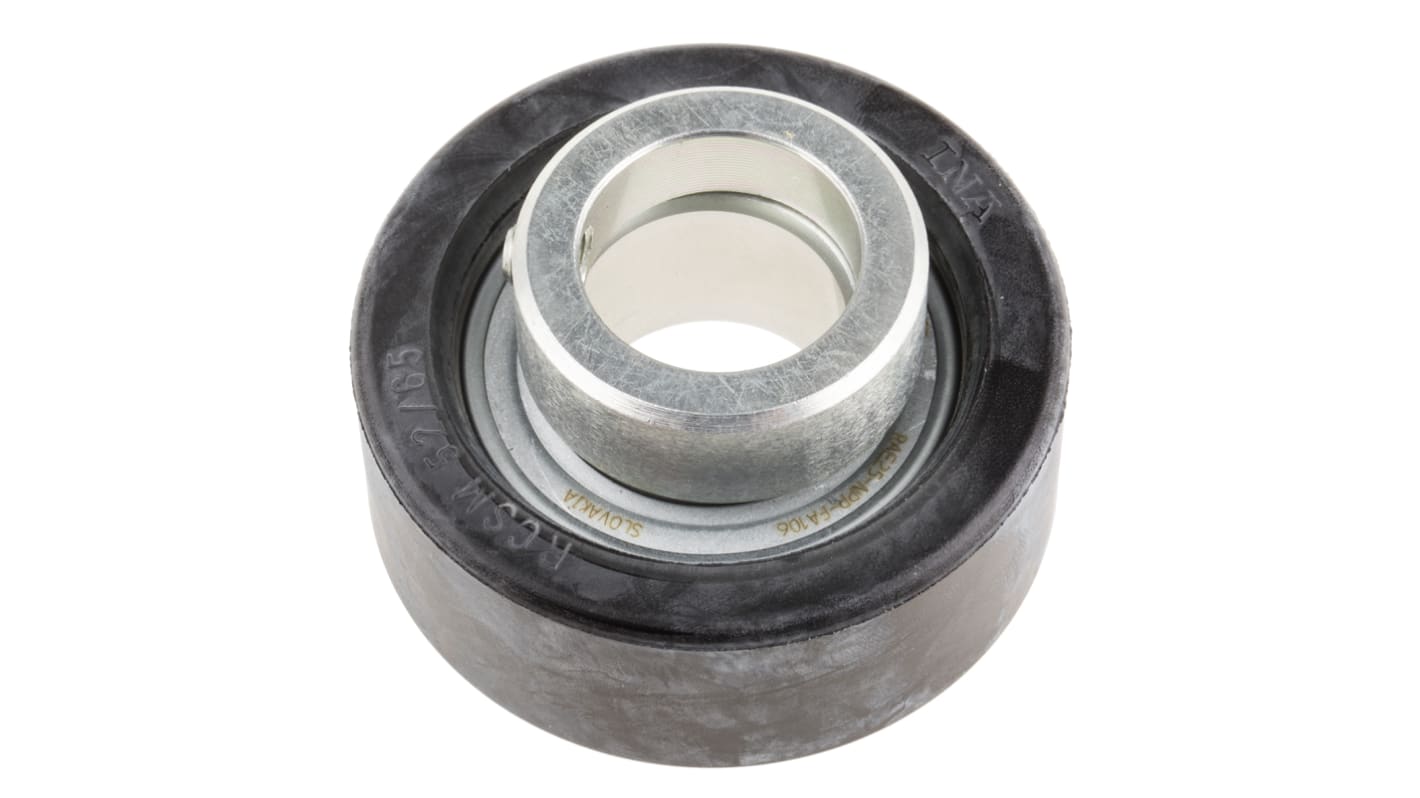

Schaeffler Bearing Inserts, 25mm Inside Diameter, 65.1mm Outside Diameter - RCSMB25/65-XL-FA106

This bearing insert is designed for superior performance in various industrial applications. With an inside diameter of 25mm and an outside diameter of 65.1mm, these steel bearing inserts are suitable for demanding environments. Offering high load ratings, they are ideal for use in automation, electronics, and mechanical sectors, ensuring durability and precision in operations.

Features & Benefits

• High static load rating of 7800N supports heavy loads
• Dynamic load rating of 14000N enhances operational efficiency
• Constructed from robust steel for increased longevity
• Precision engineering ensures optimal fit and functionality

Applications

• Used with automated machinery for enhanced reliability
• Suitable for electrical equipment requiring precision components
• Ideal for mechanical systems needing high load capacity
• Applicable in settings where durability is crucial
• Utilised in assembling parts for electrical and electronic devices

What are the load handling capabilities of this insert?

The insert features a static load rating of 7800N and a dynamic load rating of 14000N, making it ideal for handling both stationary and moving loads effectively in industrial applications.

How does the steel construction benefit its performance?

The steel material enhances durability and wear resistance, ensuring longevity even in high-demand environments, which reduces maintenance frequency and costs.

Can this insert be used in varied machinery setups?

Yes, the design of this bearing insert allows it to fit a wide range of machinery, making it highly versatile for different industrial requirements and configurations.

What makes this product suitable for automation applications?

Its high load ratings and precise engineering ensure reliable performance in automation systems, where consistent and precise operations are critical for efficiency.

INA

Units	Per unit
1 - 4	£42.76
5 - 9	£41.04
10 - 24	£40.18
25 +	£39.33

Select all	Attribute	Value
	Brand	INA
	Inside Diameter	25mm
	Outside Diameter	65.1mm
	Material	Steel
	Static Load Rating	7800N
	Dynamic Load Rating	14000N

	Select all
	Brand INA
	Inside Diameter 25mm
	Outside Diameter 65.1mm
	Material Steel
	Static Load Rating 7800N
	Dynamic Load Rating 14000N

INA Bearing Inserts 25mm ID 65.1mm OD RCSMB25/65-XL-FA106
