Moflash LEDES100 Series Amber Flashing Beacon, 40 → 380 V dc, 85 → 285 V ac, Surface Mount, Wall Mount,
- RS Stock No.:
- 865-1710
- Mfr. Part No.:
- LEDES100-05-01
- Brand:
- Moflash
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 865-1710
- Mfr. Part No.:
- LEDES100-05-01
- Brand:
- Moflash
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Moflash | |
| Supply Voltage | 40 → 380 V dc, 85 → 285 V ac | |
| Light Effect | Flashing | |
| Lens Colour | Amber | |
| Mounting Style | Surface Mount, Wall Mount | |
| Bulb Type | LED | |
| Current Type | AC, DC | |
| Base Diameter | 72mm | |
| Housing Colour | Black | |
| Lamp Included | Yes | |
| Series | LEDES100 | |
| Multifunction | No | |
| Height | 107mm | |
| Base Length | 33mm | |
| IP Rating | IP65 | |
| Minimum Temperature | -25°C | |
| Maximum Temperature | +55°C | |
| Special Features | Dust Proof, Low Current Consumption, Water Resistant | |
Select all | ||
|---|---|---|
Brand Moflash | ||
Supply Voltage 40 → 380 V dc, 85 → 285 V ac | ||
Light Effect Flashing | ||
Lens Colour Amber | ||
Mounting Style Surface Mount, Wall Mount | ||
Bulb Type LED | ||
Current Type AC, DC | ||
Base Diameter 72mm | ||
Housing Colour Black | ||
Lamp Included Yes | ||
Series LEDES100 | ||
Multifunction No | ||
Height 107mm | ||
Base Length 33mm | ||
IP Rating IP65 | ||
Minimum Temperature -25°C | ||
Maximum Temperature +55°C | ||
Special Features Dust Proof, Low Current Consumption, Water Resistant | ||
- COO (Country of Origin):
- GB

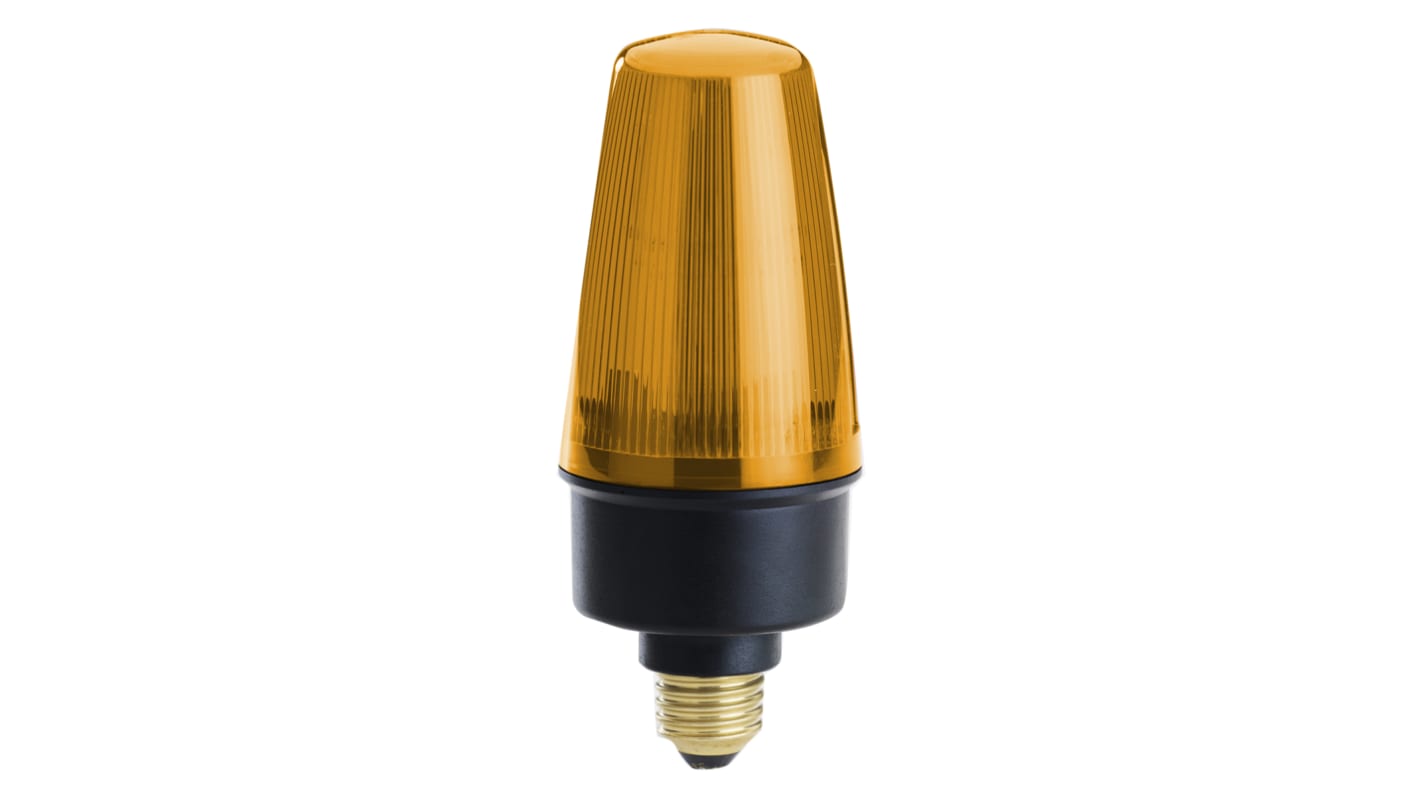

Moflash ECO LED Beacon - LEDES100 Series
The LEDES100 economy series from Moflash has an E27 Edison screw cap fitted into the base of the beacon. This design lends itself for use in temporary signalling locations where a warning or hazard is not normally present, or has the ability to be installed in an area using existing electrical lighting points, avoiding any additional wiring.
The ECO LEDES beacons have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.
The ECO LEDES beacons have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.
Continuously rated
LED long life
Low current consumption
2 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
IP65 protection
RoHS compliant
CE marked
LED long life
Low current consumption
2 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
IP65 protection
RoHS compliant
CE marked
