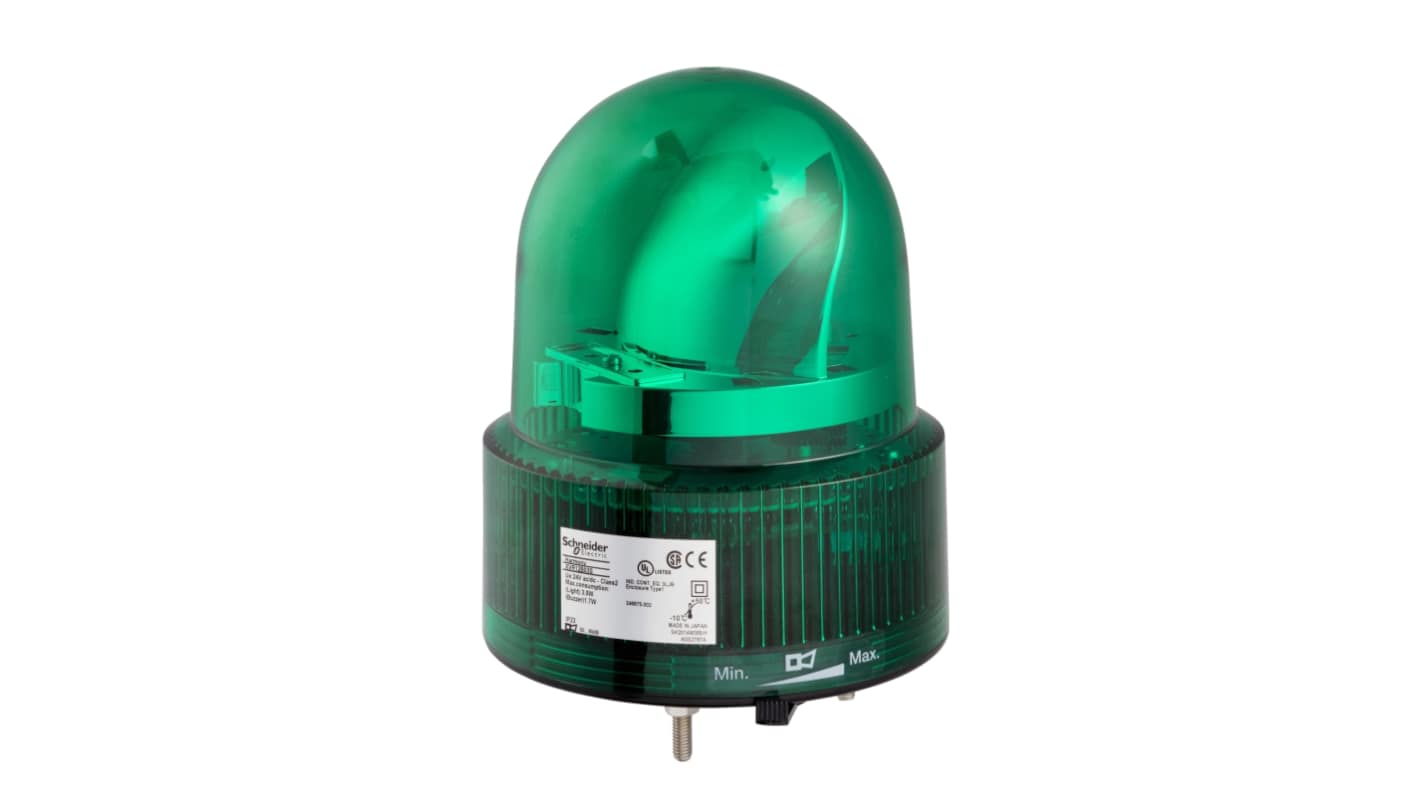

Schneider Electric XVR Series Green Rotating Beacon, 24 V ac/dc, Screw Mount, LED Bulb

View all Beacons
Unavailable
RS will no longer stock this product.
RS Stock No.:
814-6895
Mfr. Part No.:
XVR12B03
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Supply Voltage

24 V ac/dc

Light Effect

Rotating

Lens Colour

Green

Mounting Style

Screw Mount

Bulb Type

LED

Current Type

AC, DC

Base Diameter

120mm

Housing Colour

Green

Lamp Included

Yes

Series

XVR

Base Length

120mm

Minimum Temperature

-10°C

Base Width

120mm

Maximum Temperature

+50°C

RoHS Status: Exempt

Schneider XVR Rotating Beacons


The Harmony XVR rotating mirror beacons are pre-wired with super bright LEDs for long-distance visual signalling. These beacons can be used on fork lifts, cranes, hoists and most other industrial applications.

Designed for long distance signalling applications
Motor life>2000 hours
Super-bright LEDs
Flash frequency: 814-6895 is 2.3 Hz
Protection rating: 814-6895 is IP23
ABS base with polycarbonate lens

Standards

EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508, CSA 22.2 No. 14.

Approvals

CE, UL recognized EI64353 CCN NKCR, CSA LR44087 Class 3211-03, RoHS.
