MPN

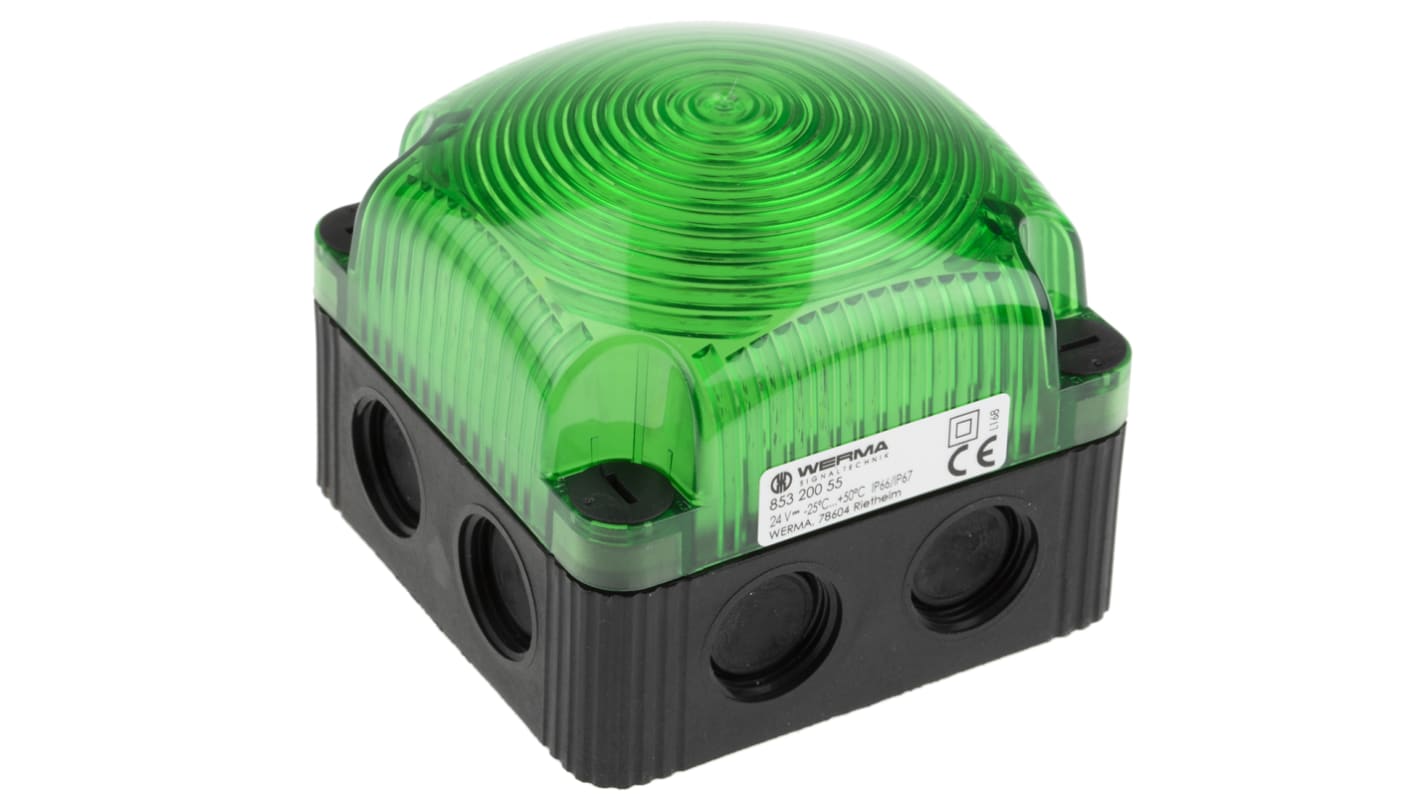

Werma FlexSQUARE Series Green Beacon 24V dc Steady Wall, Base, LED Bulb, IP67, IP66

RS Stock No.:: 746-5003
Distrelec Article No.:: 133-66-799
Mfr. Part No.:: 853.200.55
Brand:: Werma

Werma FlexSQUARE Series Green Beacon 24V dc Steady Wall, Base, LED Bulb, IP67, IP66

Subtotal (1 unit)*

£94.19

(exc. VAT)

£113.03

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 43 unit(s) shipping from 14 September 2026
Plus 60 unit(s) shipping from 14 September 2026
Plus 44 unit(s) shipping from 22 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£94.19

*price indicative

RS Stock No.:: 746-5003
Distrelec Article No.:: 133-66-799
Mfr. Part No.:: 853.200.55
Brand:: Werma

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Werma
	Product Type	Beacon
	Light Effect	Steady
	Lens Colour	Green
	Housing Material	Polycarbonate
	Bulb Type	LED
	Current Type	DC
	Mount Type	Wall, Base
	Current Consumption	80mA
	Terminal Type	Screw
	Housing Colour	Black
	Maximum Supply Voltage	24V dc
	Lamp Included	Yes
	Minimum Operating Temperature	-25°C
	Series	FlexSQUARE
	Maximum Operating Temperature	50°C
	Height	72mm
	IP Rating	IP67, IP66
	Standards/Approvals	WEEE, EAC, UKCA, CE

	Select all
	Brand Werma
	Product Type Beacon
	Light Effect Steady
	Lens Colour Green
	Housing Material Polycarbonate
	Bulb Type LED
	Current Type DC
	Mount Type Wall, Base
	Current Consumption 80mA
	Terminal Type Screw
	Housing Colour Black
	Maximum Supply Voltage 24V dc
	Lamp Included Yes
	Minimum Operating Temperature -25°C
	Series FlexSQUARE
	Maximum Operating Temperature 50°C
	Height 72mm
	IP Rating IP67, IP66
	Standards/Approvals WEEE, EAC, UKCA, CE

COO (Country of Origin):: DE

Werma FlexSQUARE Series Beacon, 24V Supply Voltage, Green Lens - 853.200.55

This beacon provides a compact, visible indication solution for industrial settings, delivering a continuous green LED signal for status or warning purposes. It is intended for fixed installation on walls or bases and is built to withstand outdoor and harsh indoor environments while operating from a low-voltage DC supply.

Features and Benefits:

• 24V DC supply reduces installation complexity and safety risk
• 80mA consumption minimises power draw on control circuits
• LED illumination offers long service life and steady indication
• Polycarbonate enclosure resists impact while remaining lightweight
• IP67 IP66 ingress protection enables washdown and dust resistance
• Screw terminals simplify secure electrical connections during installation

Applications

• Suitable for signalling machine status on production lines
• Ideal for outdoor indicator use in exposed process areas
• Used with control panels requiring low-power visual alerts
• Can be used for safety indication in washdown environments
• Used for retrofit indicator upgrades where compact size is needed

What operating temperature range can I expect during continuous use?

It is rated to function between -25°C and 50°C, allowing reliable performance across typical industrial temperature variations.

How is the unit mounted to surfaces for permanent installations?

Mounting is via wall or base options and electrical connection is made with screw-type terminals for fixed attachment.

Which approvals cover its regulatory acceptability?

The device holds WEEE, EAC, UKCA and CE approvals relevant to disposal and conformity requirements.

What are the lamp characteristics and signal behaviour while powered?

The integral LED provides a green, non-flashing steady light that remains constant while supplied.
