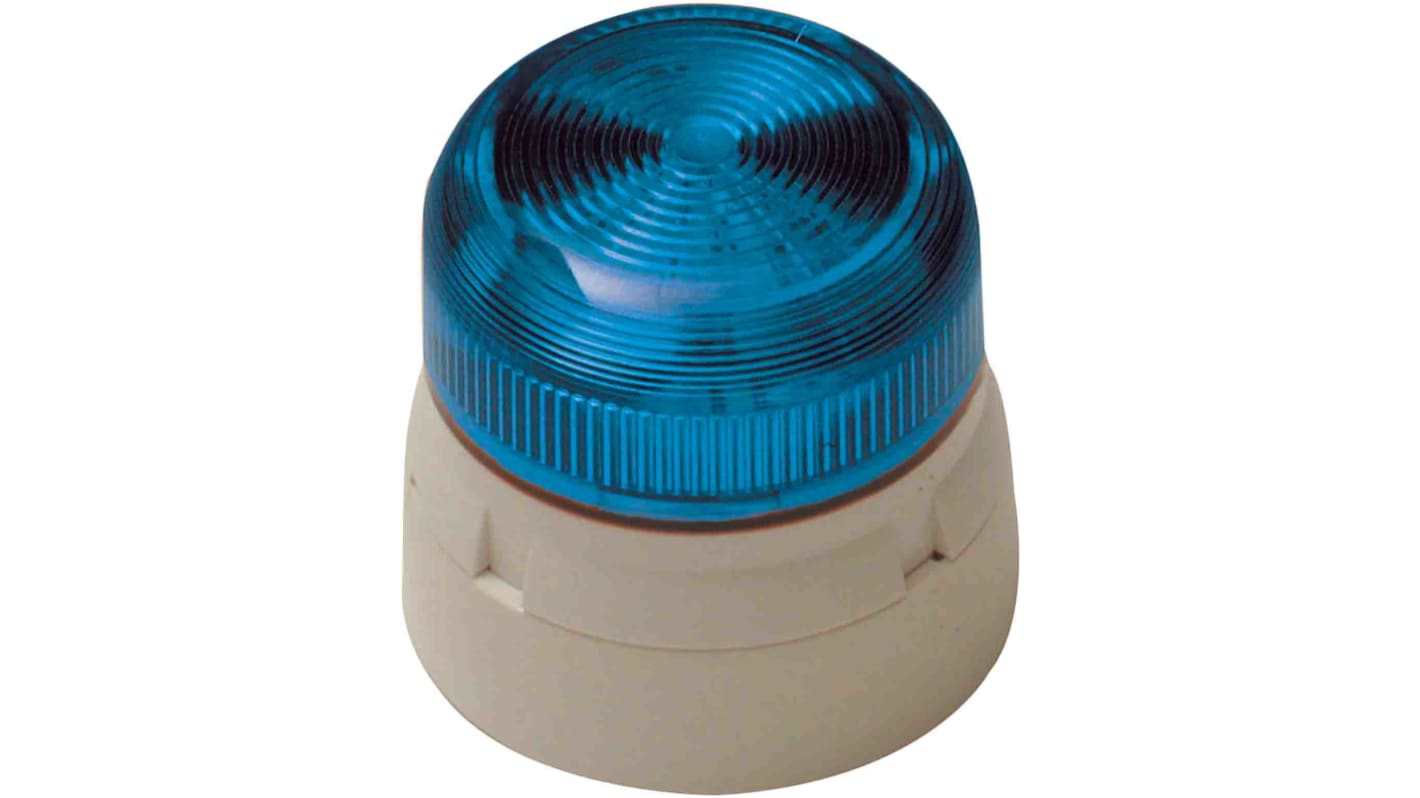

Klaxon Blue Flashing Beacon 230V, Xenon Bulb Surface, IP65
- RS Stock No.:
- 183-3859
- Mfr. Part No.:
- QBS-0047
- Brand:
- Klaxon
Subtotal (1 unit)*
£28.96
(exc. VAT)
£34.75
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £28.96 |
*price indicative
- RS Stock No.:
- 183-3859
- Mfr. Part No.:
- QBS-0047
- Brand:
- Klaxon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Klaxon | |
| Lens Colour | Blue | |
| Light Effect | Flashing | |
| Product Type | Beacon | |
| Maximum Supply Voltage | 230 V | |
| Bulb Type | Xenon | |
| Mount Type | Surface | |
| IP Rating | IP65 | |
| Base Diameter | 85 mm | |
| Current Consumption | 70 mA | |
| Current Type | DC | |
| Height | 81 mm | |
| Housing Colour | White | |
| Housing Material | Polycarbonate | |
| Lamp Included | Yes | |
| Maximum Operating Temperature | 40 °C | |
| Minimum Operating Temperature | 20 °C | |
| Standards/Approvals | CE, RoHS | |
| Terminal Type | Terminal Block | |
| Select all | ||
|---|---|---|
Brand Klaxon | ||
Lens Colour Blue | ||
Light Effect Flashing | ||
Product Type Beacon | ||
Maximum Supply Voltage 230 V | ||
Bulb Type Xenon | ||
Mount Type Surface | ||
IP Rating IP65 | ||
Base Diameter 85 mm | ||
Current Consumption 70 mA | ||
Current Type DC | ||
Height 81 mm | ||
Housing Colour White | ||
Housing Material Polycarbonate | ||
Lamp Included Yes | ||
Maximum Operating Temperature 40 °C | ||
Minimum Operating Temperature 20 °C | ||
Standards/Approvals CE, RoHS | ||
Terminal Type Terminal Block | ||
- COO (Country of Origin):
- GB
Flashguard weatherproof xenon beacons are ideal visual indicators in a variety of applications. All Flashguard beacons are fitted with a diffuser for greater visibility and spread of light. Two styles are available, Standard and Ultra Low Profile. Standard: includes a terminal block and a 27mm deep base supplied with a seal and grommet. Ultra Low Profile: comes complete with a screw and nylon wing nut and is supplied with mounting gasket and 40cm of cable.
Compact, ultra modern sleek appearance
Ease of installation with first-fix option on standard models
Weatherproof (with cable connector)
White, high quality polycarbonate housing
12V and 24V DC options in one user-selectable unit
Vandal-resistant safety locking mechanism
Applications - Fire alarm, security alert, emergency warning, process control alarm
