Klaxon PNC Series Green Beacon, IP66 60V Fixed 120 dB @ 1m
- RS Stock No.:
- 642-880
- Mfr. Part No.:
- PNC-0215
- Brand:
- Klaxon
Subtotal (1 box of 8 units)*
£1,464.33
(exc. VAT)
£1,757.20
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 1 unit(s), ready to ship
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £1,464.33 | £183.041 |
*price indicative
- RS Stock No.:
- 642-880
- Mfr. Part No.:
- PNC-0215
- Brand:
- Klaxon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Klaxon | |
| Product Type | Sounder Beacon | |
| Lens Colour | Green | |
| Minimum Sound Level | 105dB | |
| Current Type | DC | |
| Light Effect | Continuous | |
| Sounder Type | Nexus 120 Sounder | |
| Mount Type | Fixed | |
| Current Consumption | 550mA | |
| Series | PNC | |
| Terminal Type | Wire | |
| Maximum Supply Voltage | 60V | |
| Bulb Type | LED | |
| Housing Colour | Red | |
| Sound Level at 1m | 120dB | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 65°C | |
| Maximum Sound Level | 120dB | |
| IP Rating | IP66 | |
| Hazardous Area Certification | No | |
| Number of Tones | 64 | |
| Standards/Approvals | EN54-3 Type B | |
| Select all | ||
|---|---|---|
Brand Klaxon | ||
Product Type Sounder Beacon | ||
Lens Colour Green | ||
Minimum Sound Level 105dB | ||
Current Type DC | ||
Light Effect Continuous | ||
Sounder Type Nexus 120 Sounder | ||
Mount Type Fixed | ||
Current Consumption 550mA | ||
Series PNC | ||
Terminal Type Wire | ||
Maximum Supply Voltage 60V | ||
Bulb Type LED | ||
Housing Colour Red | ||
Sound Level at 1m 120dB | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 65°C | ||
Maximum Sound Level 120dB | ||
IP Rating IP66 | ||
Hazardous Area Certification No | ||
Number of Tones 64 | ||
Standards/Approvals EN54-3 Type B | ||
- COO (Country of Origin):
- GB

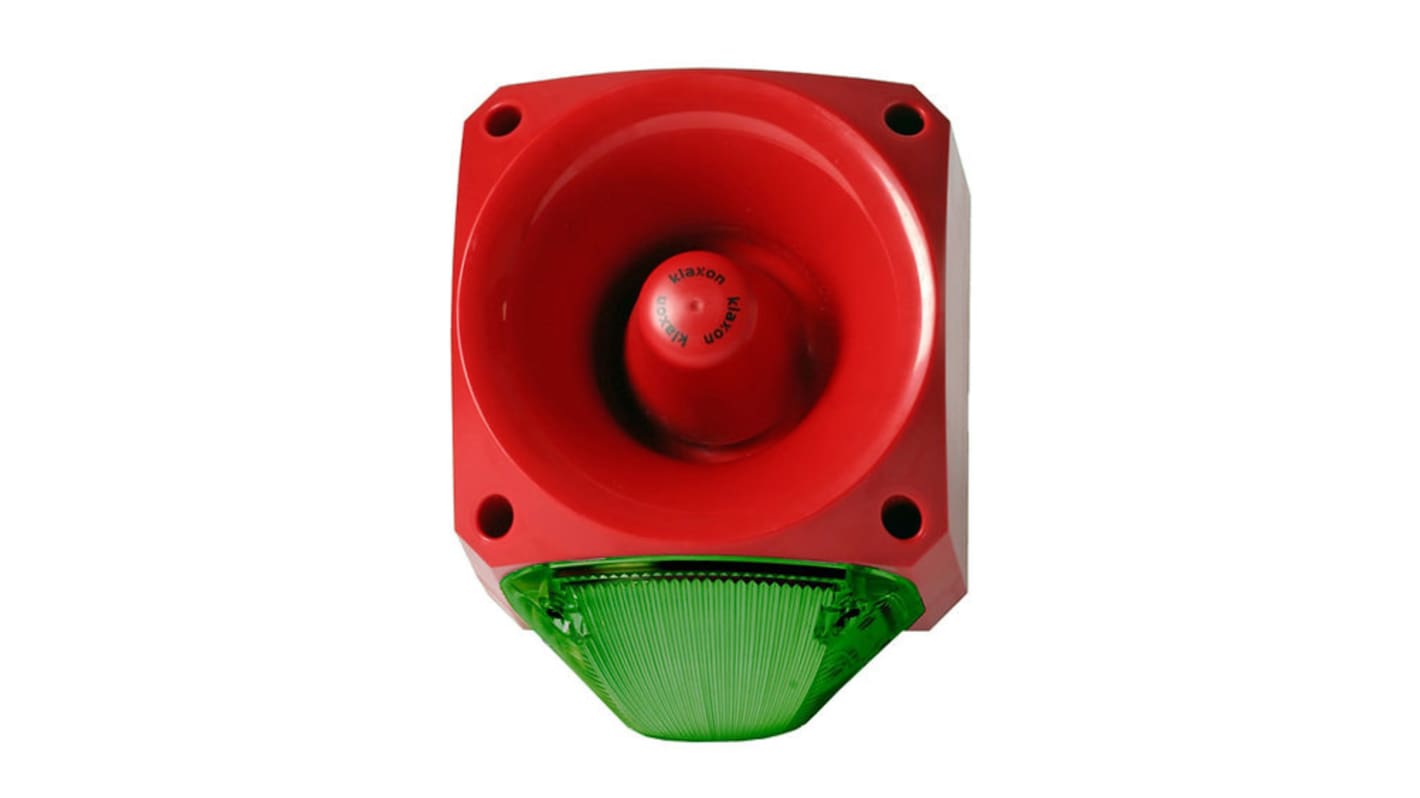

The Klaxon Nexus 120 Sounder Beacon is a very high output sounder beacon designed for fire and industrial applications. Connections are made to the base during the initial wiring phase which results in faster and more reliable installation. In addition, the head is fixed by quarter turn fasteners enabling faster installation and accurate seal compression for weatherproofing.
High output LED beacon
IP66 rated
Three alarm stages
Low in rush current
Volume control for greater flexibility
Separate connections for sounder and beacon
