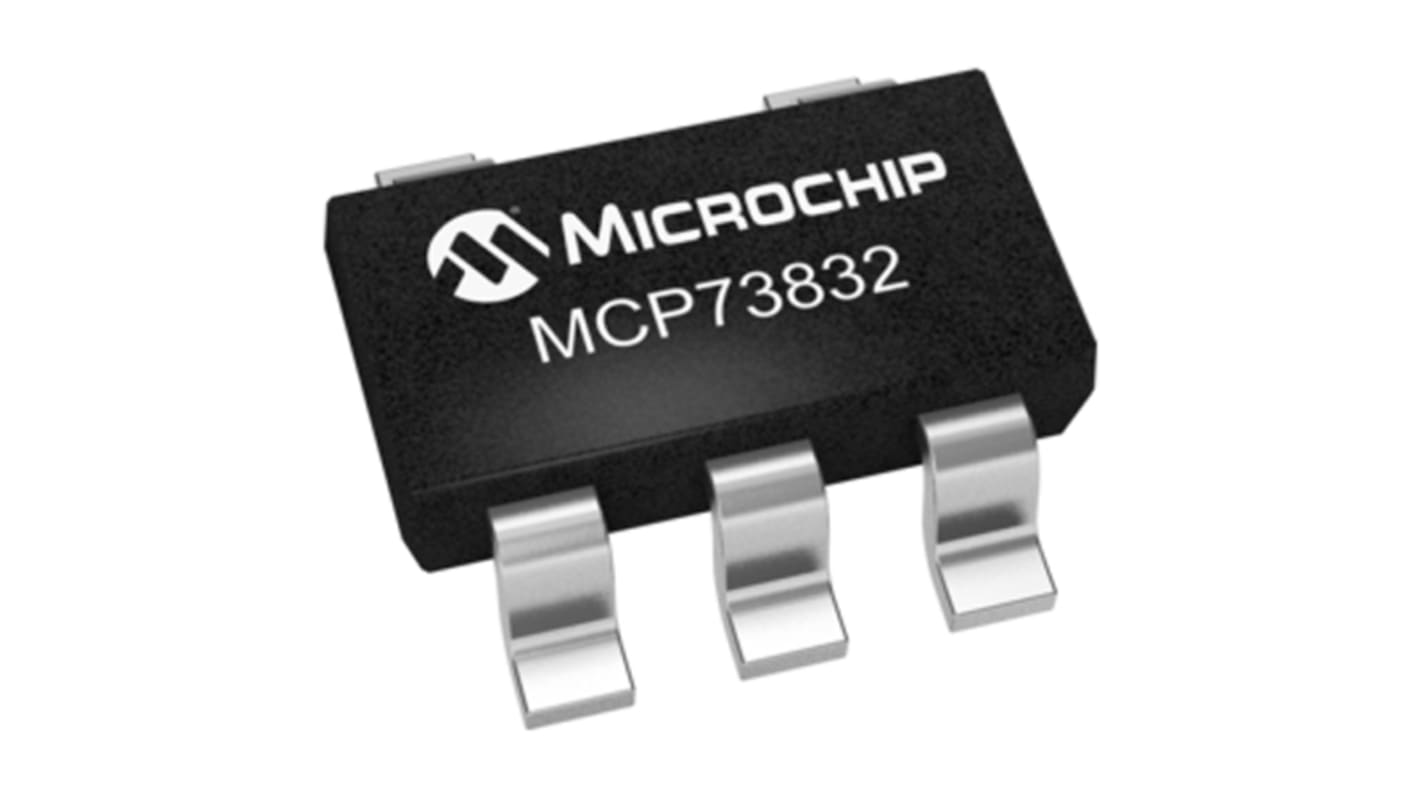

Microchip MCP73832T-2ATI/OT, Lithium-Ion, Lithium-Polymer, Battery Charge Controller, 500mA 5-Pin, SOT-23
- RS Stock No.:
- 738-6626
- Mfr. Part No.:
- MCP73832T-2ATI/OT
- Brand:
- Microchip
Discontinued
- RS Stock No.:
- 738-6626
- Mfr. Part No.:
- MCP73832T-2ATI/OT
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Battery Type | Lithium-Ion, Lithium-Polymer | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-23 | |
| Pin Count | 5 | |
| Typical Operating Supply Voltage | 3.75 → 6 V | |
| Dimensions | 3.1 x 1.8 x 1.3mm | |
| Length | 3.1mm | |
| Width | 1.8mm | |
| Height | 1.3mm | |
| Maximum Operating Temperature | +85 °C | |
| Maximum Output Current | 500mA | |
| Maximum Output Voltage | 4.232 V | |
| Minimum Operating Temperature | -40 °C | |
| Minimum Output Current | 15mA | |
| Minimum Output Voltage | 4.168 V | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Battery Type Lithium-Ion, Lithium-Polymer | ||
Mounting Type Surface Mount | ||
Package Type SOT-23 | ||
Pin Count 5 | ||
Typical Operating Supply Voltage 3.75 → 6 V | ||
Dimensions 3.1 x 1.8 x 1.3mm | ||
Length 3.1mm | ||
Width 1.8mm | ||
Height 1.3mm | ||
Maximum Operating Temperature +85 °C | ||
Maximum Output Current 500mA | ||
Maximum Output Voltage 4.232 V | ||
Minimum Operating Temperature -40 °C | ||
Minimum Output Current 15mA | ||
Minimum Output Voltage 4.168 V | ||
- COO (Country of Origin):
- TH
Battery Charging & Monitoring Controllers, Microchip
Battery Management, Microchip
