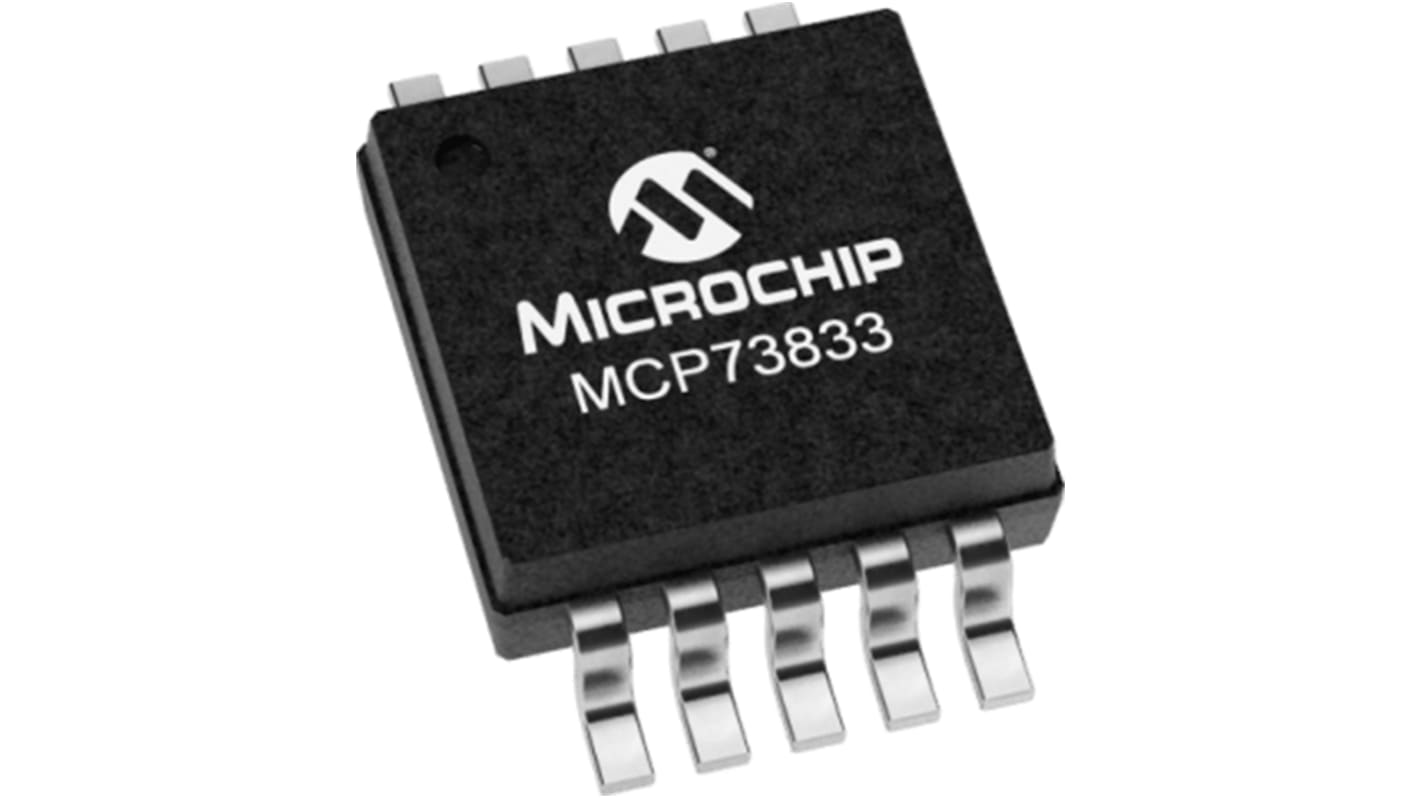

Microchip MCP73833T-AMI/UN, Battery Charge Controller IC, 6 V, 1A 10-Pin, MSOP
- RS Stock No.:
- 177-3360P
- Mfr. Part No.:
- MCP73833T-AMI/UN
- Brand:
- Microchip
Subtotal 10 units (supplied on a continuous strip)*
£7.17
(exc. VAT)
£8.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,440 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
10 + | £0.717 |
*price indicative
- RS Stock No.:
- 177-3360P
- Mfr. Part No.:
- MCP73833T-AMI/UN
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Battery Type | Lithium-Ion, Lithium-Polymer | |
Mounting Type | Surface Mount | |
IC Type | Battery Charge Controller IC | |
Package Type | MSOP | |
Pin Count | 10 | |
Typical Operating Supply Voltage | 6 V | |
Dimensions | 3 x 3 x 0.95mm | |
Length | 3mm | |
Width | 3mm | |
Height | 0.95mm | |
Maximum Operating Temperature | +125 °C | |
Maximum Output Current | 1A | |
Maximum Output Voltage | 4.53 V | |
Minimum Operating Temperature | -40 °C | |
Minimum Output Voltage | 4.16 V | |
Select all | ||
---|---|---|
Brand Microchip | ||
Battery Type Lithium-Ion, Lithium-Polymer | ||
Mounting Type Surface Mount | ||
IC Type Battery Charge Controller IC | ||
Package Type MSOP | ||
Pin Count 10 | ||
Typical Operating Supply Voltage 6 V | ||
Dimensions 3 x 3 x 0.95mm | ||
Length 3mm | ||
Width 3mm | ||
Height 0.95mm | ||
Maximum Operating Temperature +125 °C | ||
Maximum Output Current 1A | ||
Maximum Output Voltage 4.53 V | ||
Minimum Operating Temperature -40 °C | ||
Minimum Output Voltage 4.16 V | ||
1A output current linear charge management controller. Includes integrated pass transistor, integrated current sensing, and reverse discharge protection. Also includes safety features such as cell temperature monitoring, on-chip thermal regulation and safety timers. Available in 10-pin 3mm x 3mm DFN package and 10-pin MSOP package
High accuracy preset output voltage regulation
Regulated output voltage options
User-programmable charge current up to 1A
Two open-drain Status outputs
Preconditioning and end-of-charge ratio options
Under-voltage lockout
Power Good output
Regulated output voltage options
User-programmable charge current up to 1A
Two open-drain Status outputs
Preconditioning and end-of-charge ratio options
Under-voltage lockout
Power Good output
