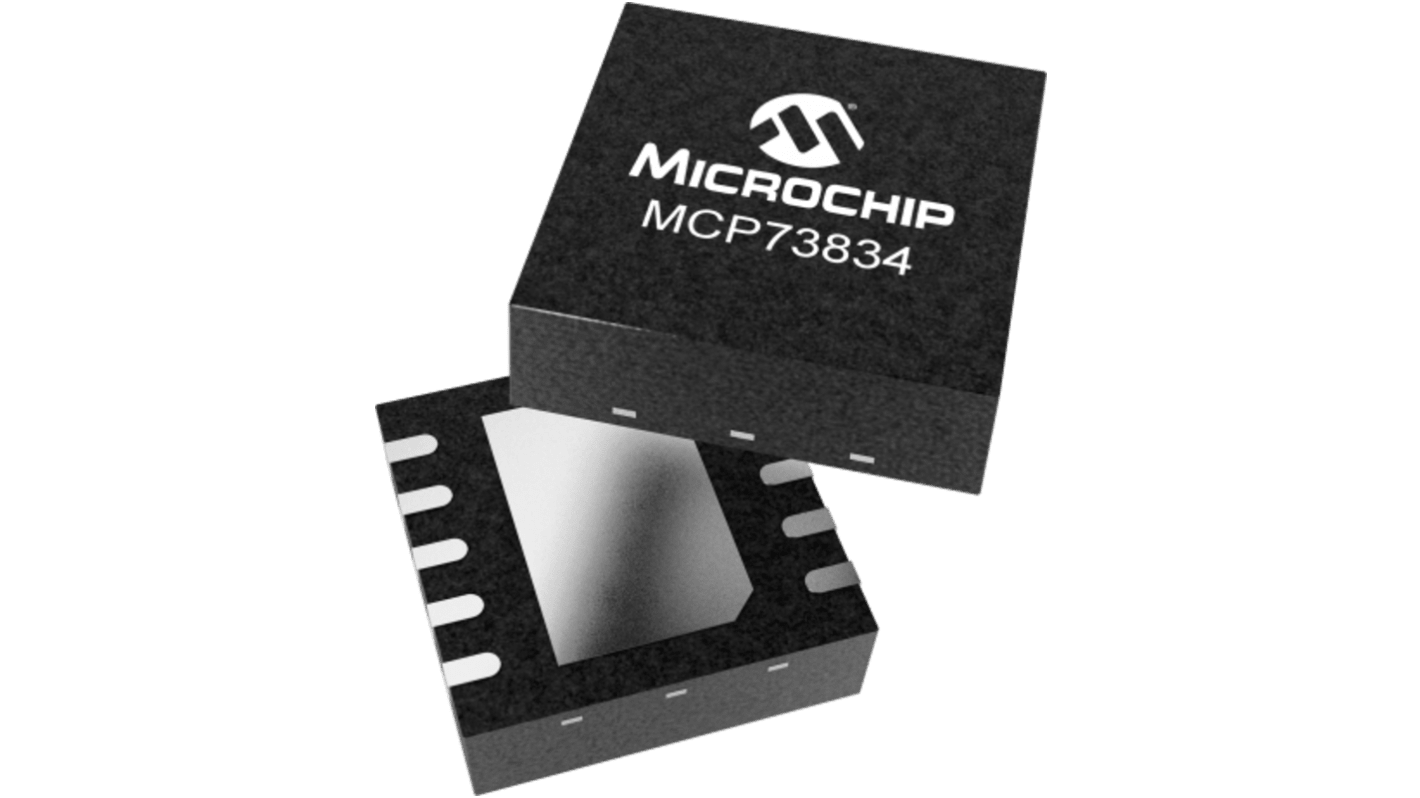

Microchip MCP73834T-FCI/MF, Battery Management, 3.75 V to 6 V Input 4.5 V Output 1 A, DFN 10-Pin
- RS Stock No.:
- 598-319
- Mfr. Part No.:
- MCP73834T-FCI/MF
- Brand:
- Microchip
Subtotal (1 reel of 3300 units)*
£2,970.00
(exc. VAT)
£3,564.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3300 + | £0.90 | £2,970.00 |
*price indicative
- RS Stock No.:
- 598-319
- Mfr. Part No.:
- MCP73834T-FCI/MF
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Battery Management | |
| Mount Type | Surface | |
| Package Type | DFN | |
| Pin Count | 10 | |
| Minimum Supply Voltage | 3.75V | |
| Output Current | 1A | |
| Maximum Supply Voltage | 6V | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Height | 1mm | |
| Length | 3mm | |
| Series | MCP73834 | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Battery Management | ||
Mount Type Surface | ||
Package Type DFN | ||
Pin Count 10 | ||
Minimum Supply Voltage 3.75V | ||
Output Current 1A | ||
Maximum Supply Voltage 6V | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Height 1mm | ||
Length 3mm | ||
Series MCP73834 | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard No | ||
The Microchip Stand-alone linear charge management controller designed for single-cell Li-Ion or Li-Polymer batteries. It integrates features like constant current/constant voltage charging, thermal regulation, and reverse discharge protection for safe and efficient battery management. With built-in cell temperature monitoring, safety timers, and automatic end-of-charge control, it’s ideal for portable applications. Its compact packaging and minimal external component requirements make it well-suited for space-constrained designs.
Two open-drain status outputs
Preconditioning and end-of-charge ratio options
Under voltage lockout
Power good output
