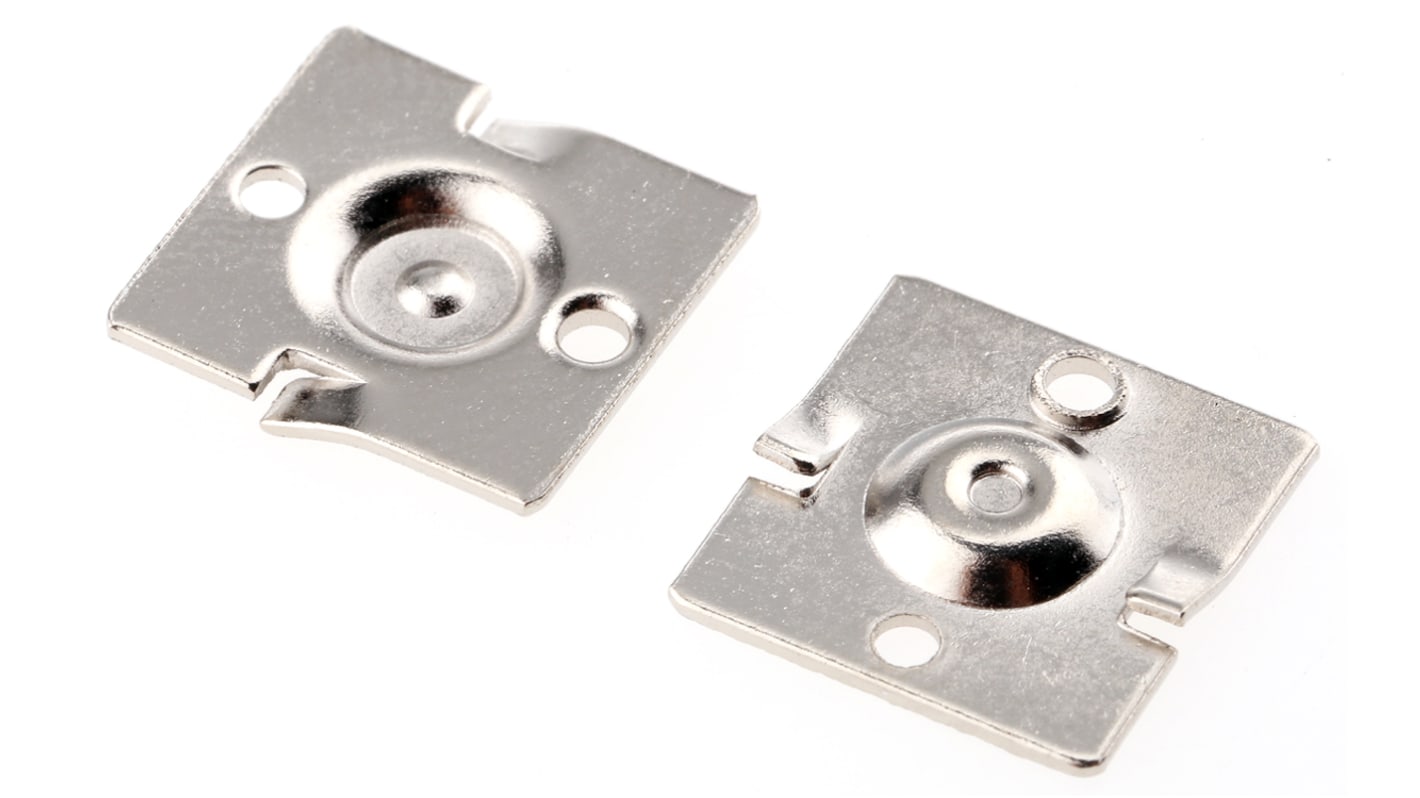

Keystone A, AA Battery Contact, Button Contact

  • RS Stock No. 324-7325
  • Mfr. Part No. 5224
  • Brand Keystone
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Contacts for battery types A; AA / AAA; AAAA; N

Single contacts for wires type A; AA (5224, 5202) or AAA; AAAA; N (5225, 52039)
Double contacts for wires type A; AA (5212) or AAA; AAAA; N (5213 with pole + right or 5214 with pole + left)
Compact size:  8 mm2 for 5225 // 5204 and 10.8 mm2 for 5224 // 5202.

Specifications
Attribute Value
For Battery Size A, AA
Number of Cells 1
Mount PCB
Type Contact
Dimensions 11.3 x 10.8mm
Terminal Contact Type Button
Terminal Contact Material Steel
930 In stock for delivery within 1 working days
Price Each (In a Bag of 10)
£ 0.20
(exc. VAT)
£ 0.24
(inc. VAT)
Units
Per unit
Per Bag*
10 - 190
£0.20
£2.00
200 - 590
£0.189
£1.89
600 +
£0.181
£1.81
*price indicative
