Keystone A, AA Battery Contact, Leaf Spring Contact

  • RS Stock No. 172-5980
  • Mfr. Part No. 209
  • Brand Keystone
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Snap-On Contacts

Ideal for use on plastic boxes
Push fit with barbed retention
Spring contact compensates for variation in battery lengths
Positive pole contacts has location facility
Solder tag to permit attachment of wire lead

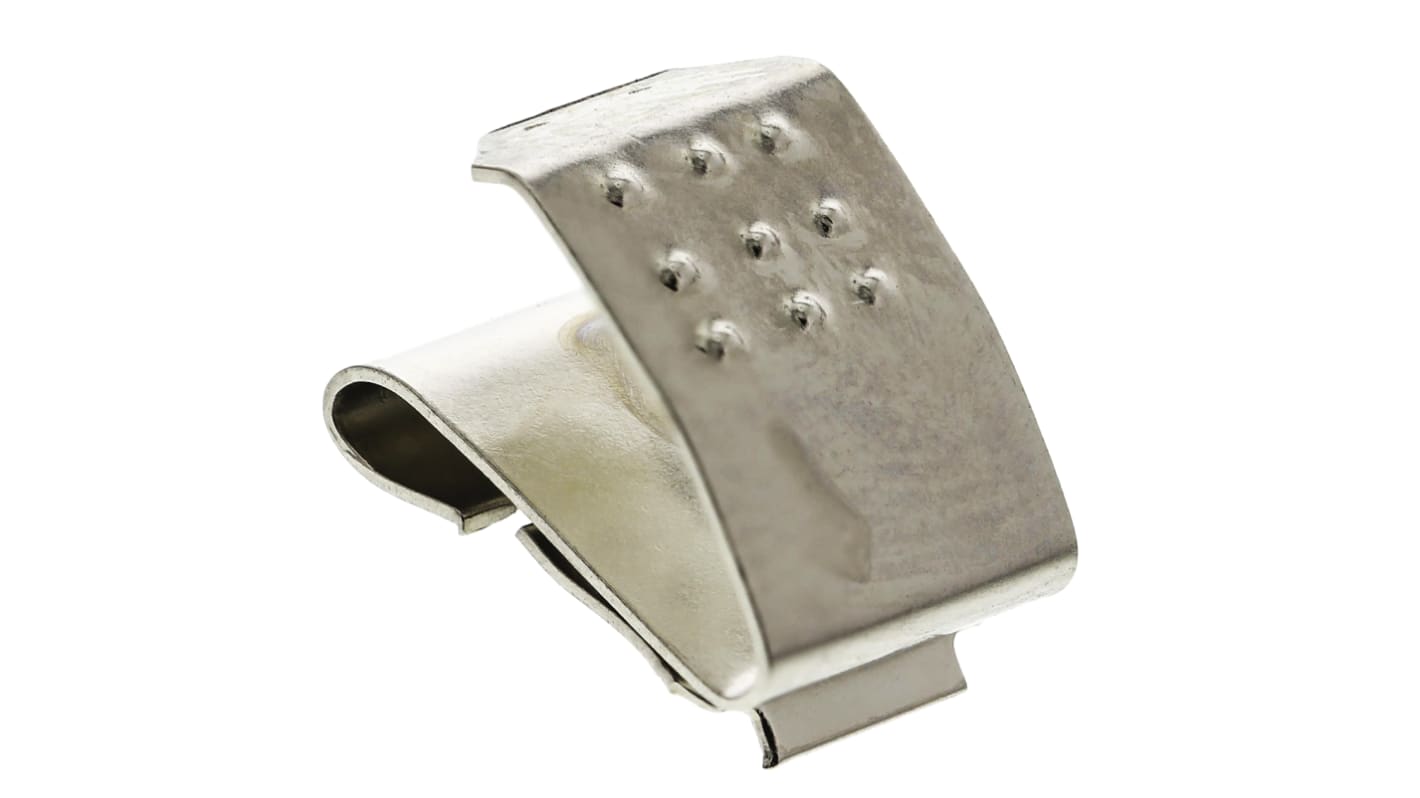

Keystone Battery Contact

The Keystone leaf-spring contact cell holder is made of nickel-plated spring steel. This holder is 7.9mm x 11.4mm in size. It is suitable for A and AA type cells.

Features and Benefits

Ideal for use on plastic boxes Push fit with barbed retention Spring contact compensates for variation in battery lengths Positive pole contacts has location facility Solder tag to permit attachment of wire lead

Specifications
Attribute Value
For Battery Size A, AA
Number of Cells 1
Mount Snap-In
Type Contact
Dimensions 7.9 x 11.4mm
Terminal Contact Type Leaf Spring
Terminal Contact Material Nickel Plated Spring Steel
1320 in stock for FREE next working day delivery
7010 available from Europe for delivery within 1 working day(s)
Price Each (In a Pack of 10)
£ 0.28
(exc. VAT)
£ 0.34
(inc. VAT)
Units
Per unit
Per Pack*
10 - 190
£0.28
£2.80
200 - 590
£0.264
£2.64
600 +
£0.253
£2.53
*price indicative
