RS PRO Male 2 Way Modular Battery Contact, Cable Mount, 200A, 600 V
- RS Stock No.:
- 237-8779
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£23.64
(exc. VAT)
£28.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 27 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £23.64 |
10 - 24 | £21.28 |
25 + | £20.21 |
*price indicative
- RS Stock No.:
- 237-8779
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Gender | Male | |
Number of Contacts | 2 | |
Mounting Type | Cable Mount | |
Body Orientation | Straight | |
Contact Material | Copper | |
Contact Plating | Silver | |
Current Rating | 200A | |
Voltage Rating | 600 V | |
Colour | Red | |
Series | BMC | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Gender Male | ||
Number of Contacts 2 | ||
Mounting Type Cable Mount | ||
Body Orientation Straight | ||
Contact Material Copper | ||
Contact Plating Silver | ||
Current Rating 200A | ||
Voltage Rating 600 V | ||
Colour Red | ||
Series BMC | ||
- COO (Country of Origin):
- TW

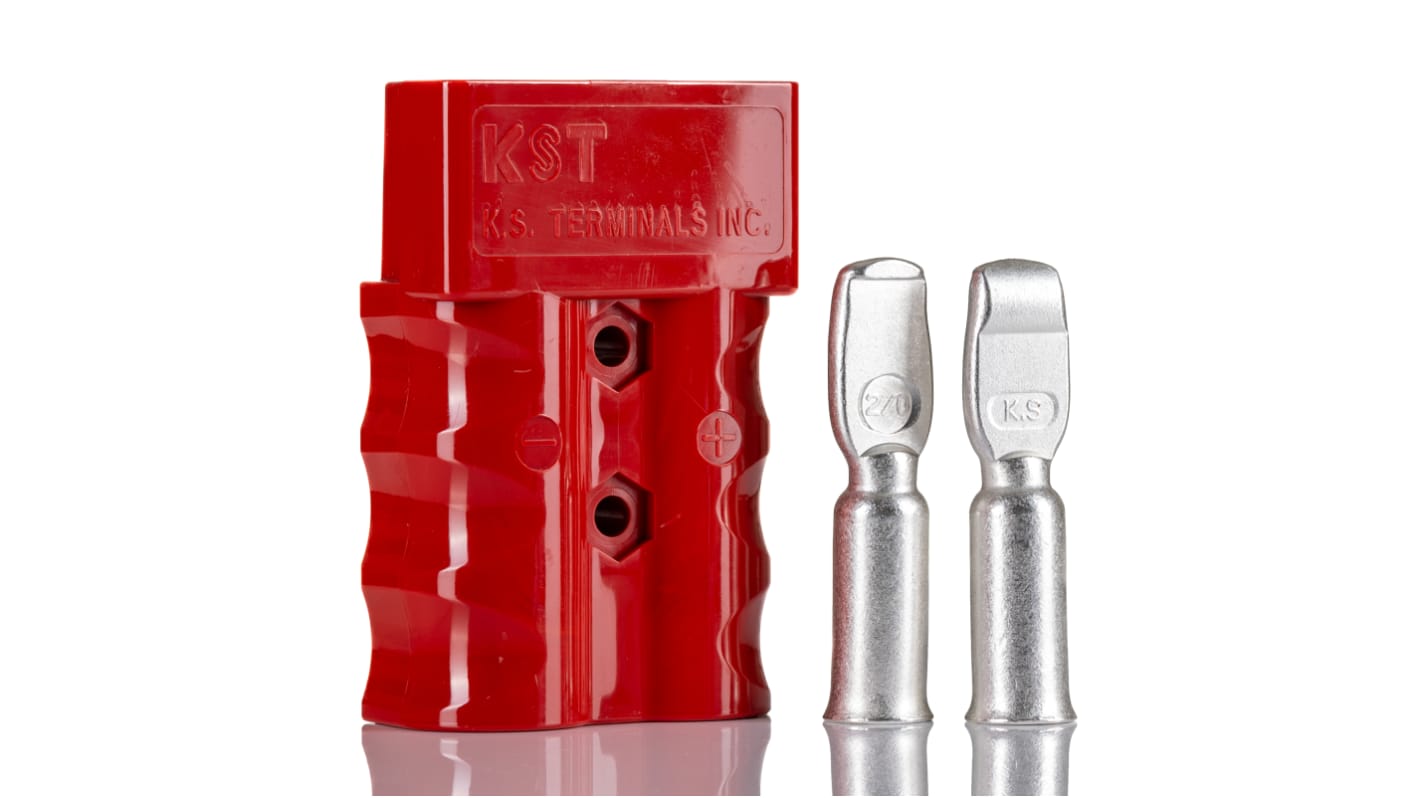

RS PRO Red Battery Modular Connector (BMC)
RS PRO Battery Modular Connectors (BMC) enable the enforcement of colour management systems and are designed to dramatically reduce accidental pairing increasing user safety using a combination of colour and design specifically formed to only mate with the same colour connector.
Robust Polycarbonate construction for strength and impact resistance with Silver Plated Copper contacts delivering excellent conductivity and increased connector life. With a high voltage resistance of 600 Volts continuous AC or DC operation, these battery connectors are ideal for a wide range of commercial applications.
Typical Applications:
- UPS Systems
- Telecommunication
- Forklift Trucks
- Electric Vehicles and Chargers
- 2 Pole Power Connector
- Housing Current Rating: 350 A / Contact Current Rating: 200 A
- Wire size: 70mm
- Operating Temp erature: -20 to +125 °C
- Dimensions (LxWxD): 108 x 69.8 x 33.3 mm
Approvals
UL, UL 94 V-0, RoHS, REACH
