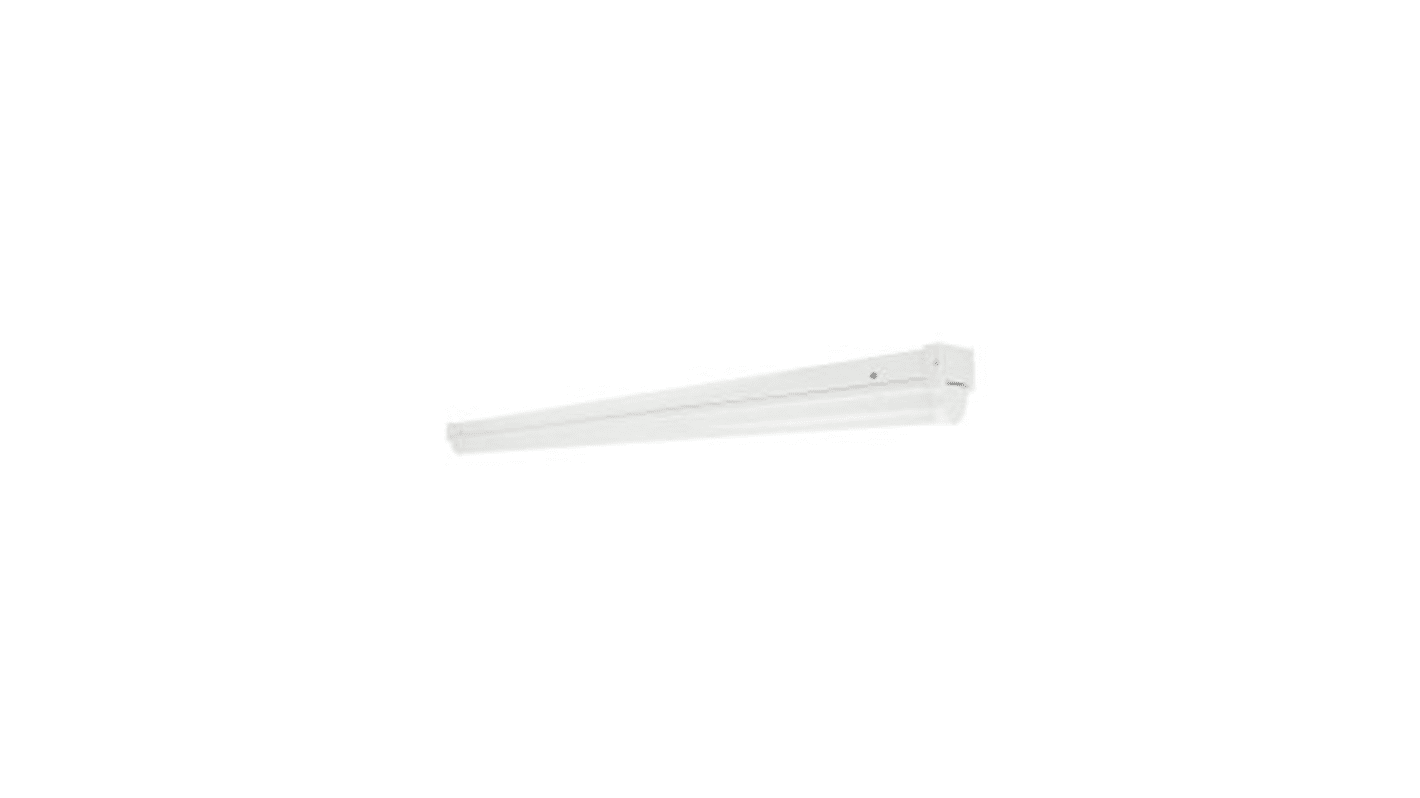

Osram 30 W LED Batten Light, 220 → 240 V LED Luminaire, 1 Lamp, 1.46 m Long, IK08, IP20
- RS Stock No.:
- 179-8541
- Mfr. Part No.:
- 4058075122185
- Brand:
- Osram
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 179-8541
- Mfr. Part No.:
- 4058075122185
- Brand:
- Osram
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Osram | |
Type | LED Luminaire | |
Batten Type | Single | |
Length | 1.46 m | |
Width | 62 mm | |
Depth | 74 mm | |
Wattage | 30 W | |
Number of Lamps | 1 | |
Colour Tone | Warm White | |
Lamp Type | LED | |
Life Hours | 50000h | |
Colour Temperature | 3000K | |
Colour Reference | 830 | |
Voltage Rating | 220 → 240 V | |
IP Rating | IK08, IP20 | |
Standards Met | CB, CE, EAC, ENEC, TUV SUD | |
Select all | ||
---|---|---|
Brand Osram | ||
Type LED Luminaire | ||
Batten Type Single | ||
Length 1.46 m | ||
Width 62 mm | ||
Depth 74 mm | ||
Wattage 30 W | ||
Number of Lamps 1 | ||
Colour Tone Warm White | ||
Lamp Type LED | ||
Life Hours 50000h | ||
Colour Temperature 3000K | ||
Colour Reference 830 | ||
Voltage Rating 220 → 240 V | ||
IP Rating IK08, IP20 | ||
Standards Met CB, CE, EAC, ENEC, TUV SUD | ||
- COO (Country of Origin):
- CN
LEDVANCE LED Linear Lighting & Batten
The LEDVANCE LED linear lighting is a 30W ceiling light. It produces warm white kelvin that creates a nice and pleasant atmosphere, suitable for one's living space. It has a colour temperature of 3000K and colour rendering of 80 to 89. This tube has an optional reflector accessory and multiple wiring possibilities for flexible applications. It required voltage rating ranges between 220V and 240V.
Features and Benefits:
• Replacement of conventional T8 Luminaries with up to 7100lm
• Energy savings up to 60% (compared to luminaries that use fluorescent lamps)
• Availability of versions with luminous flux between 3500lm and 7100lm
• High luminous efficacy of up to 125lm/W
• Robust metal housing and PC diffusor
• Wiring is present at the rear of luminaire
• Through wiring possible
• Direct replacement for luminaries with fluorescent lamps
• Energy savings up to 60% (compared to luminaries that use fluorescent lamps)
• Availability of versions with luminous flux between 3500lm and 7100lm
• High luminous efficacy of up to 125lm/W
• Robust metal housing and PC diffusor
• Wiring is present at the rear of luminaire
• Through wiring possible
• Direct replacement for luminaries with fluorescent lamps
Applications:
• Indoor application
• Industrial and commercial hall
• Public area
• Corridors, stairwells and basements
• Garages
• Industrial and commercial hall
• Public area
• Corridors, stairwells and basements
• Garages
Certifications:
• IK08 rated
• IP20 rated
• IP20 rated
