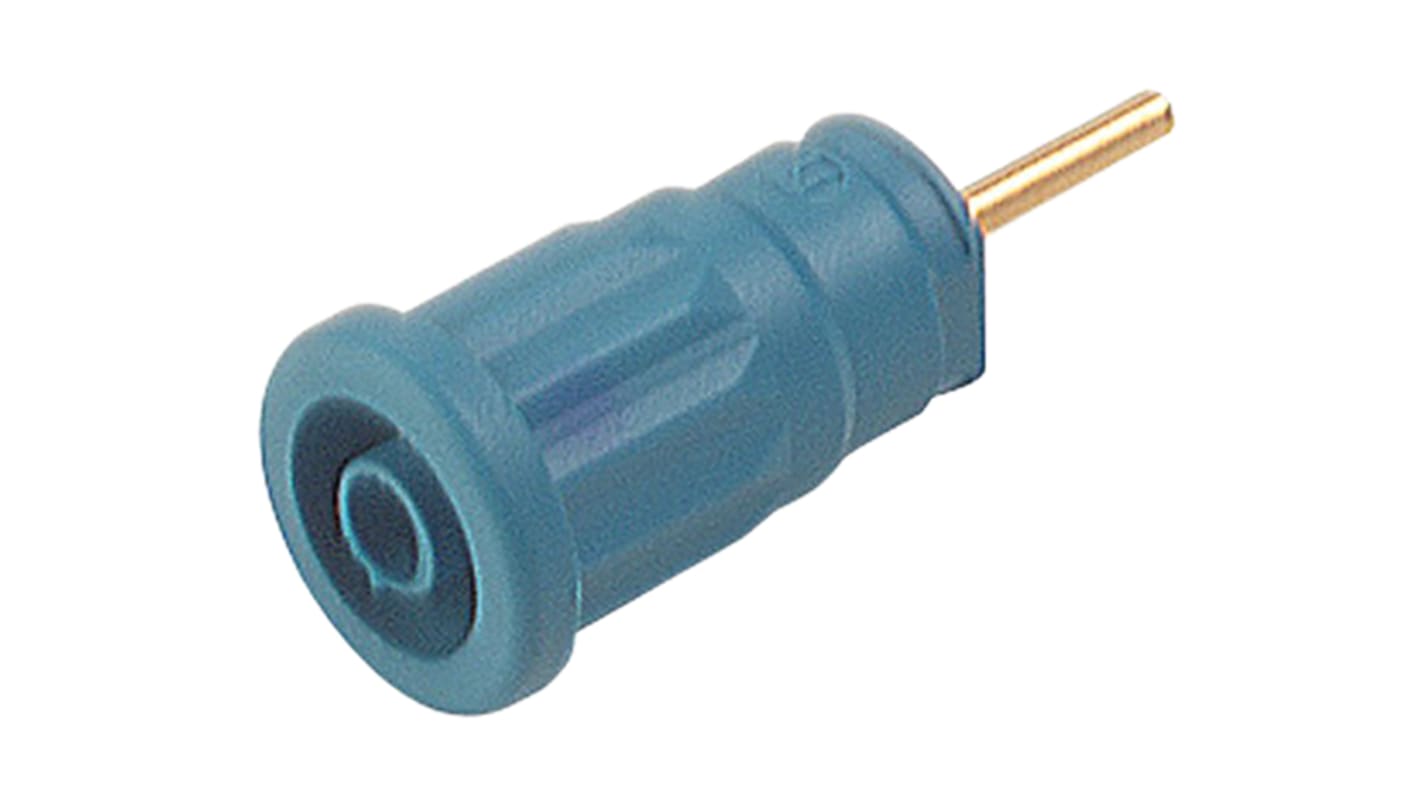

Hirschmann Test & Measurement Blue Female Banana Socket, 4 mm Connector, Solder Termination, 1000 V ac/dc, 24A, Gold

View all Banana Connectors
Bulk discount available

Subtotal (1 pack of 5 units)*

£9.81

(exc. VAT)

£11.77

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 45£1.962£9.81
50 - 120£1.814£9.07
125 - 245£1.672£8.36
250 +£1.52£7.60

*price indicative

RS Stock No.:
884-9058
Mfr. Part No.:
972363102
Brand:
Hirschmann Test & Measurement
Find similar products by selecting one or more attributes.
Select all

Brand

Hirschmann Test & Measurement

Colour

Blue

Product Type

Banana Socket

Gender

Female

Termination Method

Solder

Current

24A

Voltage

1000 V ac/dc

Connector Size

4 mm

Contact Plating

Gold

Length

36mm

Contact Material

Brass

Connector Type

Banana Socket

Insulation Material

Polyamide

Standards/Approvals

CEI 61010, IEC 61010

COO (Country of Origin):
DE

Safety base with solder lug


SEP 2630 S1.9, Hirschmann CAT II 4mm safety system socket that is contact-protected, and with a 1.9 mm soldering spike of gold-plated brass construction. These safety connectors are ideal for installation into switchpanels and equipment chassis with wall thicknesses from 1 to 10 mm. The soldering spike can be soldered into printed boards if desired.

4 mm flush-mount safety base, with 1.9 mm soldering pin

Quick mounting on front faces with thicknesses between 1 and 10 mm

Installation hole 12.2mm

Temperature range -40 to +80° C

Approvals

  CEI 61010

Standards

IEC 61010
