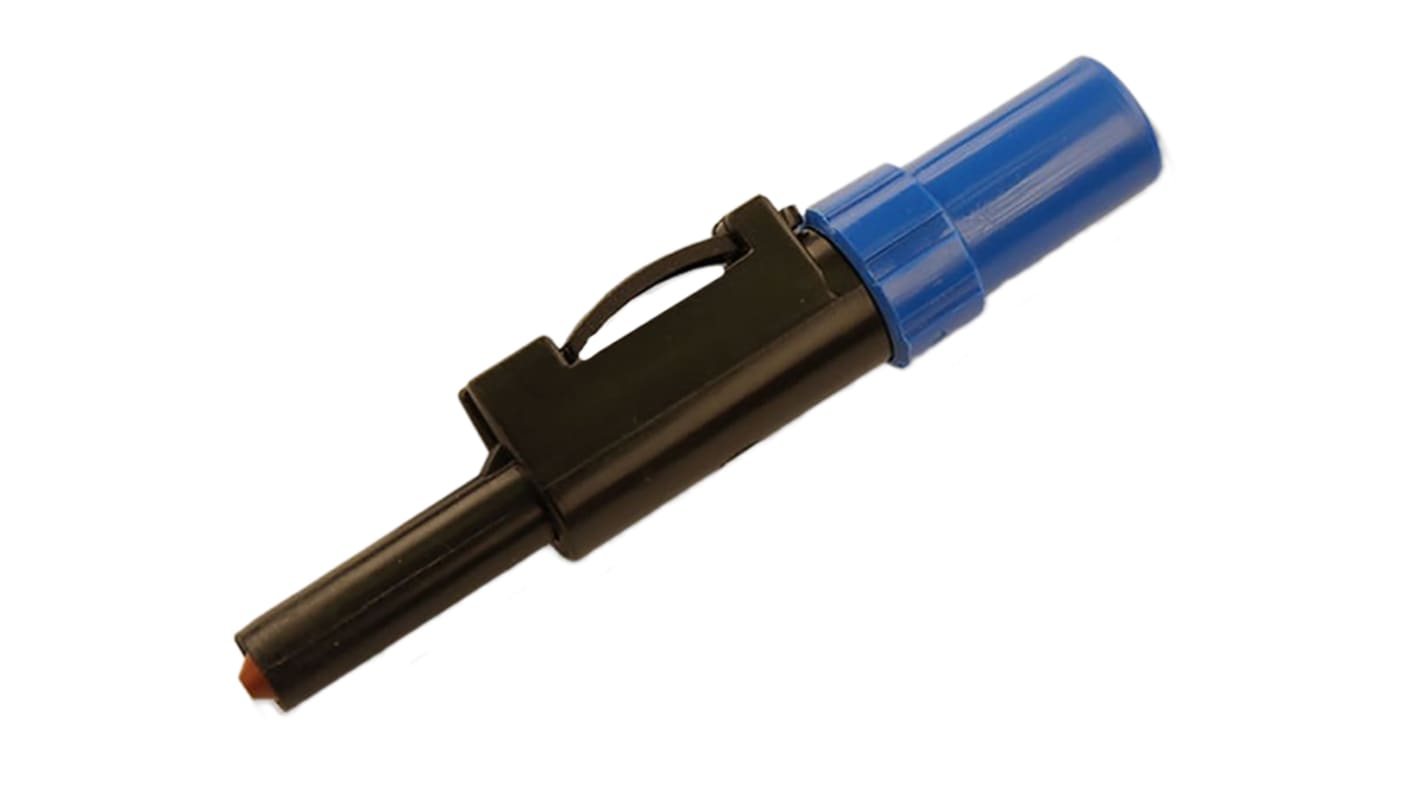

Hirschmann Test & Measurement Blue Male Banana Plug, 4 mm Connector, Solder Termination, 30A, 30 V ac, 60V dc, Nickel

RS Stock No.:: 884-8819
Mfr. Part No.:: 931824102
Brand:: Hirschmann Test & Measurement

Hirschmann Test & Measurement Blue Male Banana Plug, 4 mm Connector, Solder Termination, 30A, 30 V ac, 60V dc, Nickel

6 In stock - FREE next working day delivery available

Added

Price Each

£4.03

(exc. VAT)

£4.84

(inc. VAT)

Units	Per unit
1 - 9	£4.03
10 - 24	£3.72
25 - 49	£3.43
50 +	£3.12

RS Stock No.:: 884-8819
Mfr. Part No.:: 931824102
Brand:: Hirschmann Test & Measurement

Technical Reference

SLS 4mm Retractable Cable Plug

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

SLS 10B Hirschmann CAT I 4mm Cable Plug

Hirschmann 4mm CAT I, safety cable plug, touch-safe and fully insulated by the click and spring insulating sleeve, which is only released by applying pressure to the side locking springs. Nickel-plated contact spring made from copper-beryllium. Maximum screw connection 2.5 mm².

Features

Rated at 16A 30VAC/60VDC
CAT I
Nickel plated brass
5 mΩ contact resistance
Temperature range -25 to +70° C

Specifications

Attribute	Value
Colour	Blue
Gender	Male
Termination Method	Solder
Voltage Rating	30 V ac, 60V dc
Current Rating	30A
Connector Size	4 mm
Contact Plating	Nickel
Spring Contact	Yes
Length	67mm
Type	Banana Plug
Contact Material	Beryllium Copper (Spring), Brass (Pin)
Insulation Material	POM
