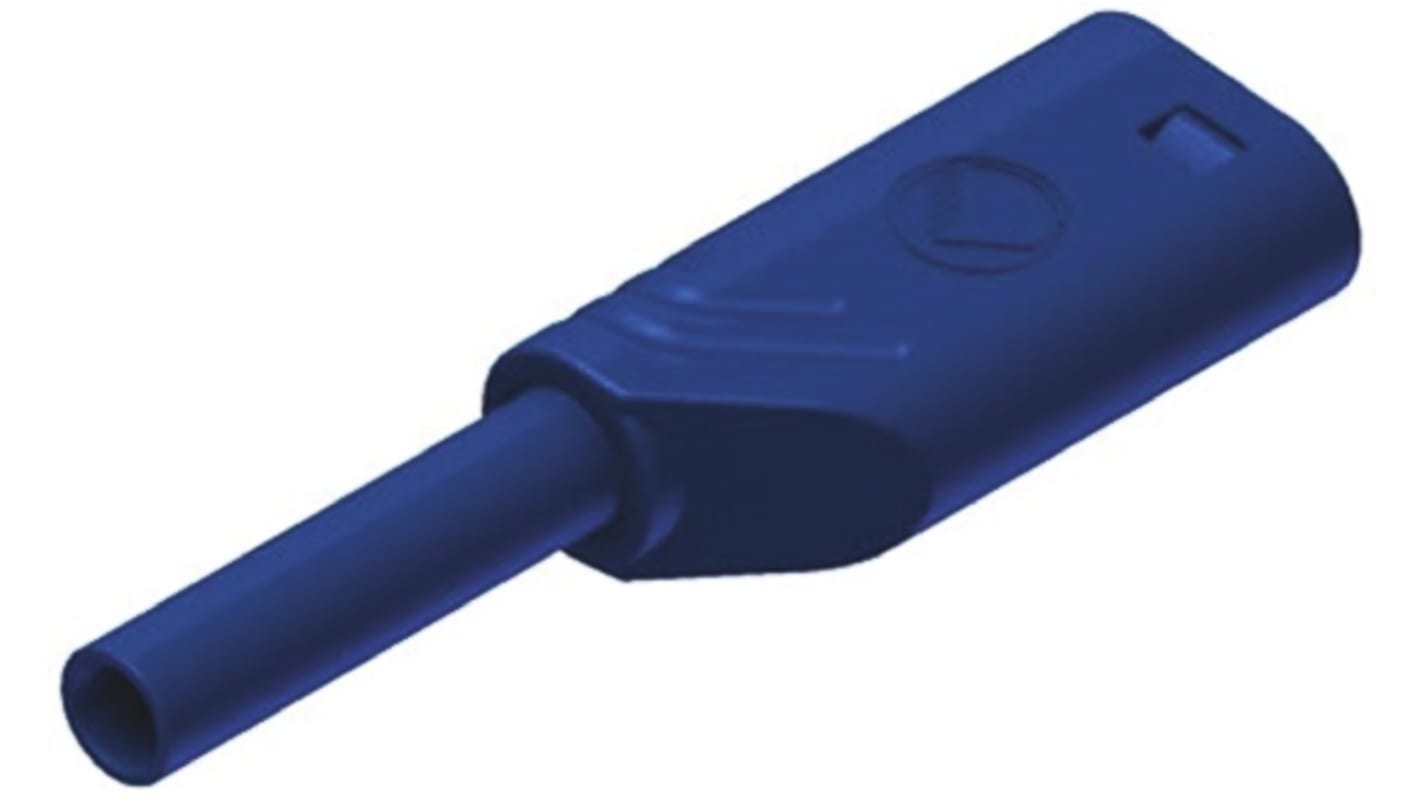

Hirschmann Test & Measurement Blue Male Banana Plug, 2mm Connector, Solder Termination, 10A, 1000V ac/dc, Gold Plating
- RS Stock No.:
- 787-2896
- Mfr. Part No.:
- 975090702
- Brand:
- Hirschmann Test & Measurement
Bulk discount available
Subtotal (1 unit)*
£3.05
(exc. VAT)
£3.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 61 unit(s) shipping from 13 October 2025
- Plus 31 unit(s) shipping from 13 October 2025
- Plus 220 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.05 |
| 10 - 24 | £2.81 |
| 25 - 49 | £2.62 |
| 50 + | £2.36 |
*price indicative
- RS Stock No.:
- 787-2896
- Mfr. Part No.:
- 975090702
- Brand:
- Hirschmann Test & Measurement
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirschmann Test & Measurement | |
| Colour | Blue | |
| Gender | Male | |
| Termination Method | Solder | |
| Voltage Rating | 1000V ac/dc | |
| Connector Size | 2mm | |
| Current Rating | 10A | |
| Contact Plating | Gold | |
| Spring Contact | Yes | |
| Length | 41.5mm | |
| Contact Material | Beryllium Copper, Brass | |
| Type | Banana Plug | |
| Insulation Material | Polyamide | |
Select all | ||
|---|---|---|
Brand Hirschmann Test & Measurement | ||
Colour Blue | ||
Gender Male | ||
Termination Method Solder | ||
Voltage Rating 1000V ac/dc | ||
Connector Size 2mm | ||
Current Rating 10A | ||
Contact Plating Gold | ||
Spring Contact Yes | ||
Length 41.5mm | ||
Contact Material Beryllium Copper, Brass | ||
Type Banana Plug | ||
Insulation Material Polyamide | ||
- COO (Country of Origin):
- DE
MST S WS 30 Au CAT III Stackable Safety Plugs with 2mm Rear Socket
Hirschmann Test and Measurement CAT III safety stackable plugs with a solder connection for cables with a cross section from 0.5mm2 to 1mm2 and a maximum outer diameter including insulation of 2.9mm. These stackable plugs feature a spring loaded plug and a unsprung 2mm rear socket for onward connectivity in a wide range of colours.
CAT III
Spring loaded pin and unsprung 2mm rearsocket
Rated at 1000 VAC/DC
Current rating 10A
Contact resistance 2mΩ
Spring loaded pin and unsprung 2mm rearsocket
Rated at 1000 VAC/DC
Current rating 10A
Contact resistance 2mΩ
2mm Hirschmann Test Connectors
