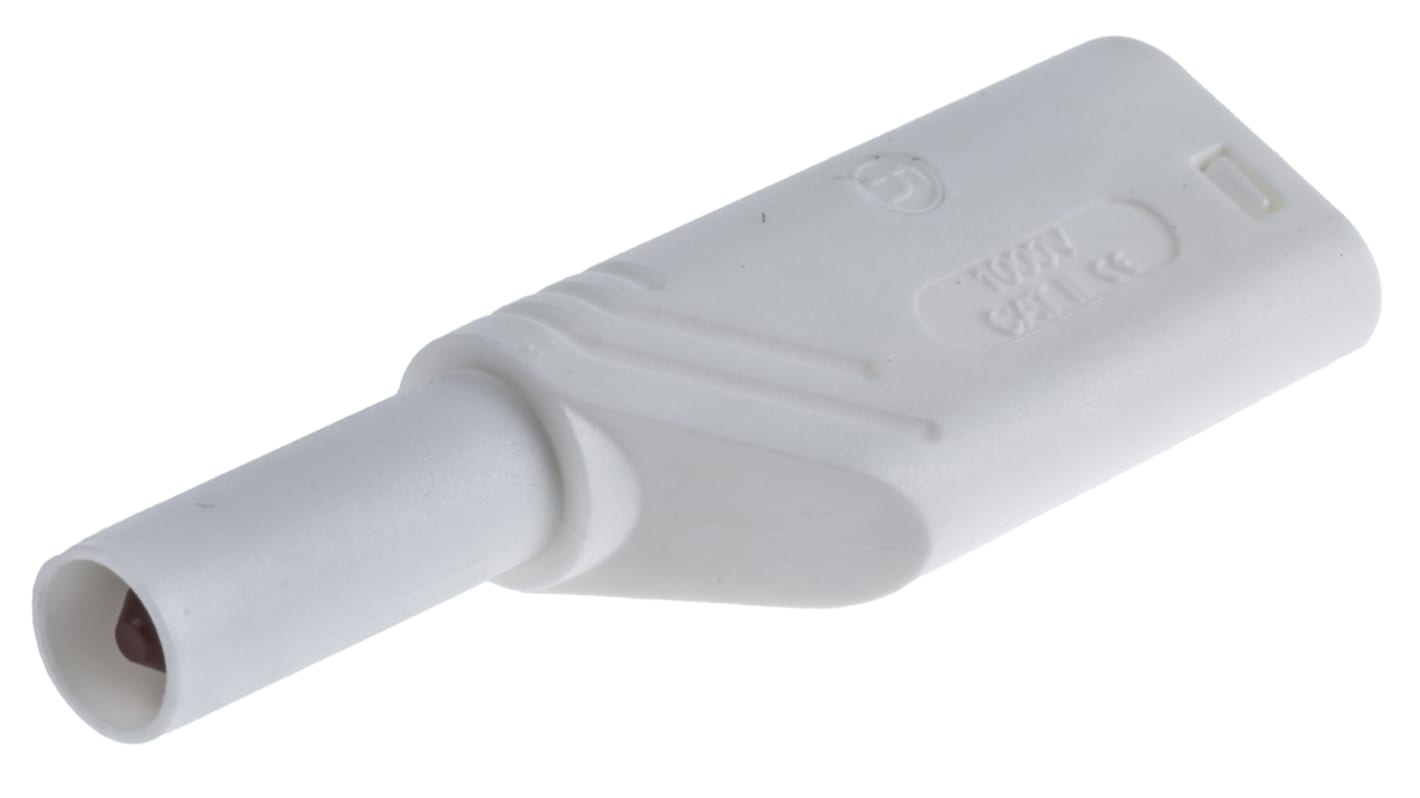

Hirschmann Test & Measurement White Male Banana Plug, 4 mm Connector, Screw Termination, 24A, 1000V ac/dc, Nickel
- RS Stock No.:
- 787-2748
- Mfr. Part No.:
- 934099107
- Brand:
- Hirschmann Test & Measurement
Bulk discount available
Subtotal (1 unit)*
£2.86
(exc. VAT)
£3.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 315 unit(s) ready to ship
- Plus 147 unit(s) ready to ship from another location
- Plus 300 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £2.86 |
10 - 24 | £2.68 |
25 - 49 | £2.44 |
50 + | £2.21 |
*price indicative
- RS Stock No.:
- 787-2748
- Mfr. Part No.:
- 934099107
- Brand:
- Hirschmann Test & Measurement
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hirschmann Test & Measurement | |
Colour | White | |
Gender | Male | |
Termination Method | Screw | |
Voltage Rating | 1000V ac/dc | |
Current Rating | 24A | |
Connector Size | 4 mm | |
Contact Plating | Nickel | |
Spring Contact | Yes | |
Length | 58.3mm | |
Contact Material | Beryllium Copper, Brass | |
Type | Banana Plug | |
Insulation Material | Polyamide | |
Select all | ||
---|---|---|
Brand Hirschmann Test & Measurement | ||
Colour White | ||
Gender Male | ||
Termination Method Screw | ||
Voltage Rating 1000V ac/dc | ||
Current Rating 24A | ||
Connector Size 4 mm | ||
Contact Plating Nickel | ||
Spring Contact Yes | ||
Length 58.3mm | ||
Contact Material Beryllium Copper, Brass | ||
Type Banana Plug | ||
Insulation Material Polyamide | ||
- COO (Country of Origin):
- DE
LAS S WS series stackable 4 mm sockets
Hirschmann Test and Measurement LAS S WS 4mm nickel plated brass stackable cable plug connector with screw termination and caged spring, simple assembly via the 'Click System', available in a variety of colours. These 4mm safety plug connectors are suitable for leads with a conductor cross section of 0.5mm2 to 1.5mm2 and an outer diameter maximum of 3.2mm.
Rated voltage 1000 VAC/DC
CAT II (600 Vac/DC), CAT III
Rated current 24A
Spring loaded pin
CAT II (600 Vac/DC), CAT III
Rated current 24A
Spring loaded pin
Standards
IEC 61010 CAT II
