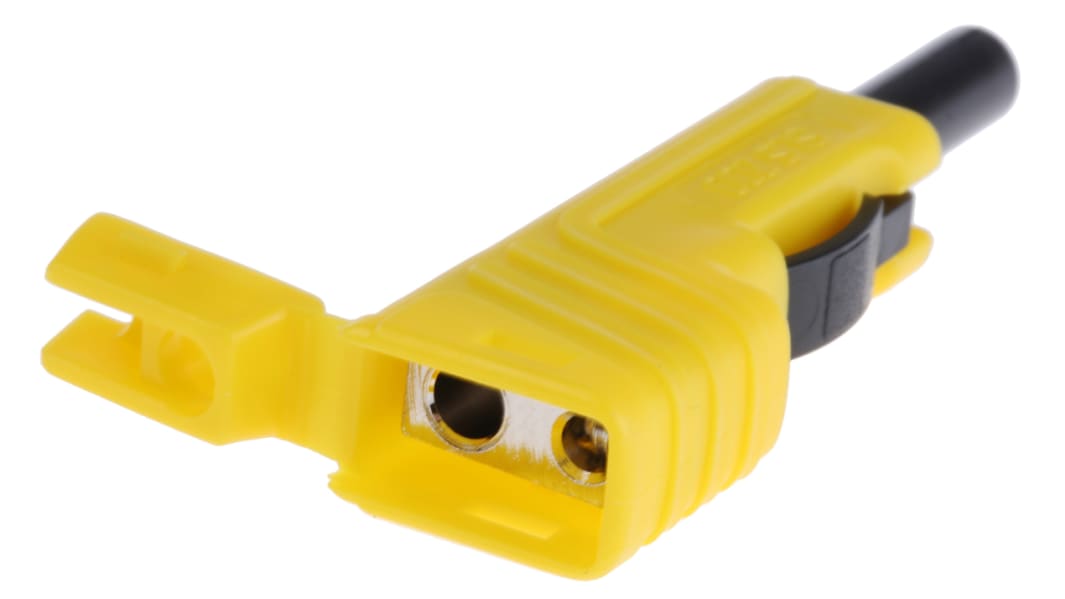

Hirschmann Test & Measurement Yellow Male Banana Plug, 4 mm Connector, Screw Termination, 30A, 30 V ac, 60V dc, Nickel
- RS Stock No.:
- 787-2495
- Mfr. Part No.:
- 932153103
- Brand:
- Hirschmann Test & Measurement
211 In stock - FREE next working day delivery available
95 available from Europe for delivery within 1 working day(s).
Added
Price Each
£6.34
(exc. VAT)
£7.61
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £6.34 |
| 10 - 24 | £5.86 |
| 25 - 49 | £5.40 |
| 50 + | £4.92 |
- RS Stock No.:
- 787-2495
- Mfr. Part No.:
- 932153103
- Brand:
- Hirschmann Test & Measurement
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
SLS 200, CAT I Banana Plugs Retractable Shroud - Stackable
Hirschmann Test and Measurement 4mm Banana plug part of the SLS 200 series, touch-protected screw terminated, stackable 4mm plugs with retractable shroud that is released only through pressure on the side-mounted locking-spring. Accepts conductors up to 2.5mm diameter.
Rated voltage 30 VAC/ 60 VDC
Rated Current 30A
CAT I
Spring loaded pin
Rated Current 30A
CAT I
Spring loaded pin
Specifications
Attribute | Value |
|---|---|
| Colour | Yellow |
| Gender | Male |
| Termination Method | Screw |
| Voltage Rating | 30 V ac, 60V dc |
| Current Rating | 30A |
| Connector Size | 4 mm |
| Contact Plating | Nickel |
| Spring Contact | Yes |
| Length | 65mm |
| Contact Material | Beryllium Copper, Brass |
| Type | Banana Plug |
| Insulation Material | PP |
