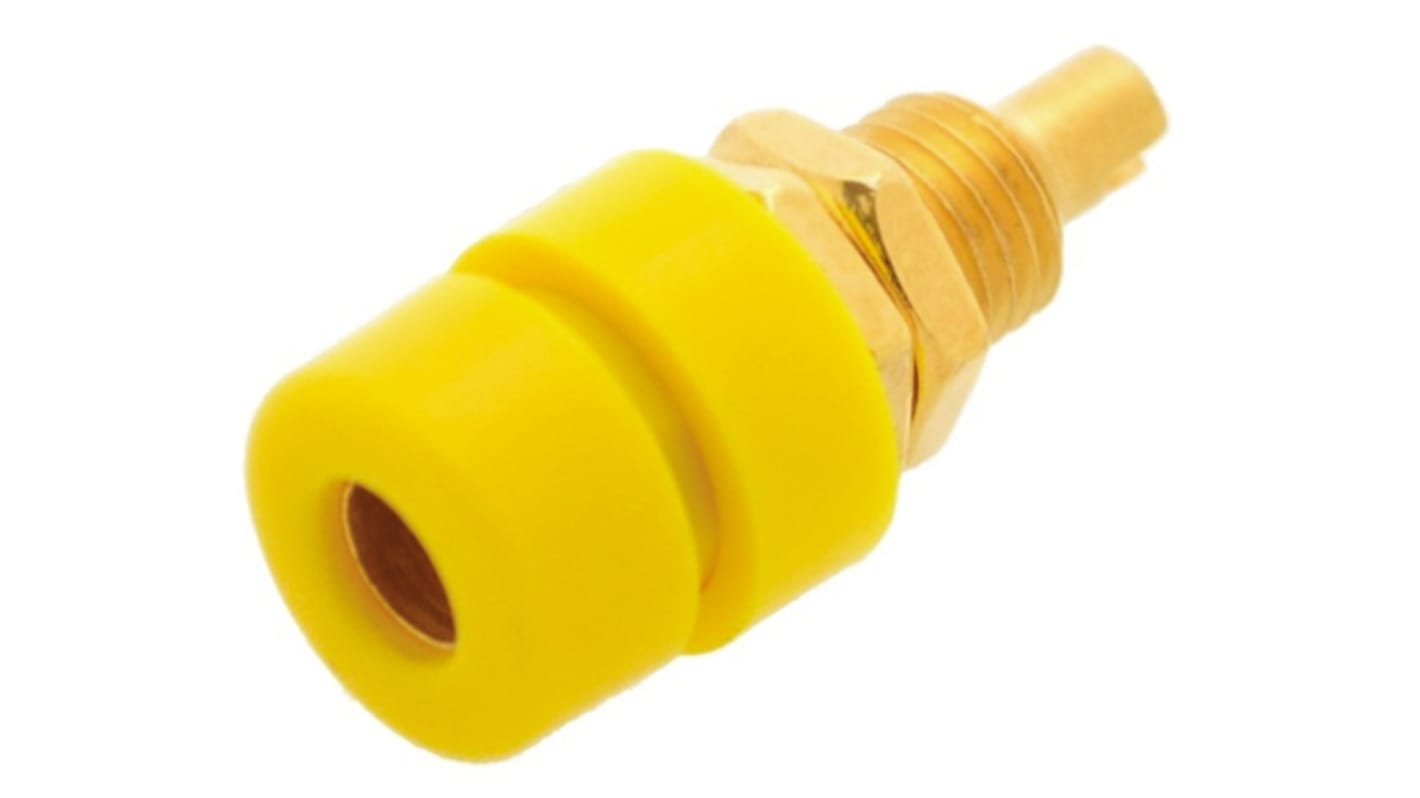

Hirschmann Test & Measurement Yellow Female Banana Socket, 4 mm Connector, Solder Termination, 32A, 30 V ac, 60V dc,
- RS Stock No.:
- 787-2408
- Mfr. Part No.:
- 930176703
- Brand:
- Hirschmann Test & Measurement
Bulk discount available
Subtotal (1 unit)*
£3.93
(exc. VAT)
£4.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 32 unit(s) ready to ship
- Plus 29 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £3.93 |
10 - 24 | £3.67 |
25 - 49 | £3.35 |
50 + | £3.03 |
*price indicative
- RS Stock No.:
- 787-2408
- Mfr. Part No.:
- 930176703
- Brand:
- Hirschmann Test & Measurement
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hirschmann Test & Measurement | |
Colour | Yellow | |
Gender | Female | |
Termination Method | Solder | |
Voltage Rating | 30 V ac, 60V dc | |
Connector Size | 4 mm | |
Current Rating | 32A | |
Contact Plating | Gold | |
Length | 23.5mm | |
Contact Material | Brass | |
Type | Banana Socket | |
Insulation Material | Polyamide | |
Select all | ||
---|---|---|
Brand Hirschmann Test & Measurement | ||
Colour Yellow | ||
Gender Female | ||
Termination Method Solder | ||
Voltage Rating 30 V ac, 60V dc | ||
Connector Size 4 mm | ||
Current Rating 32A | ||
Contact Plating Gold | ||
Length 23.5mm | ||
Contact Material Brass | ||
Type Banana Socket | ||
Insulation Material Polyamide | ||
- COO (Country of Origin):
- DE
BIL 20 / BIL 20 Au, CAT I 4mm Chassis Mount Test Sockets
Hirschmann Test and Measurement BIL 20 / BIL 20 Au, CAT I 4mm gold plated and nickel plated chassis mount test sockets with insulated head and ring, solder connection and M6 threaded body. These BIL 20 series 4mm test sockets are ideally suited for use in equipment chassis and switch panels with a wall thickness of up to 2mm.
Rated voltage 30 VAC/ 60 VDC
Rated Current 32A
CAT I
Screw mounting M6x0.75mm
Solder termination
Rated Current 32A
CAT I
Screw mounting M6x0.75mm
Solder termination
