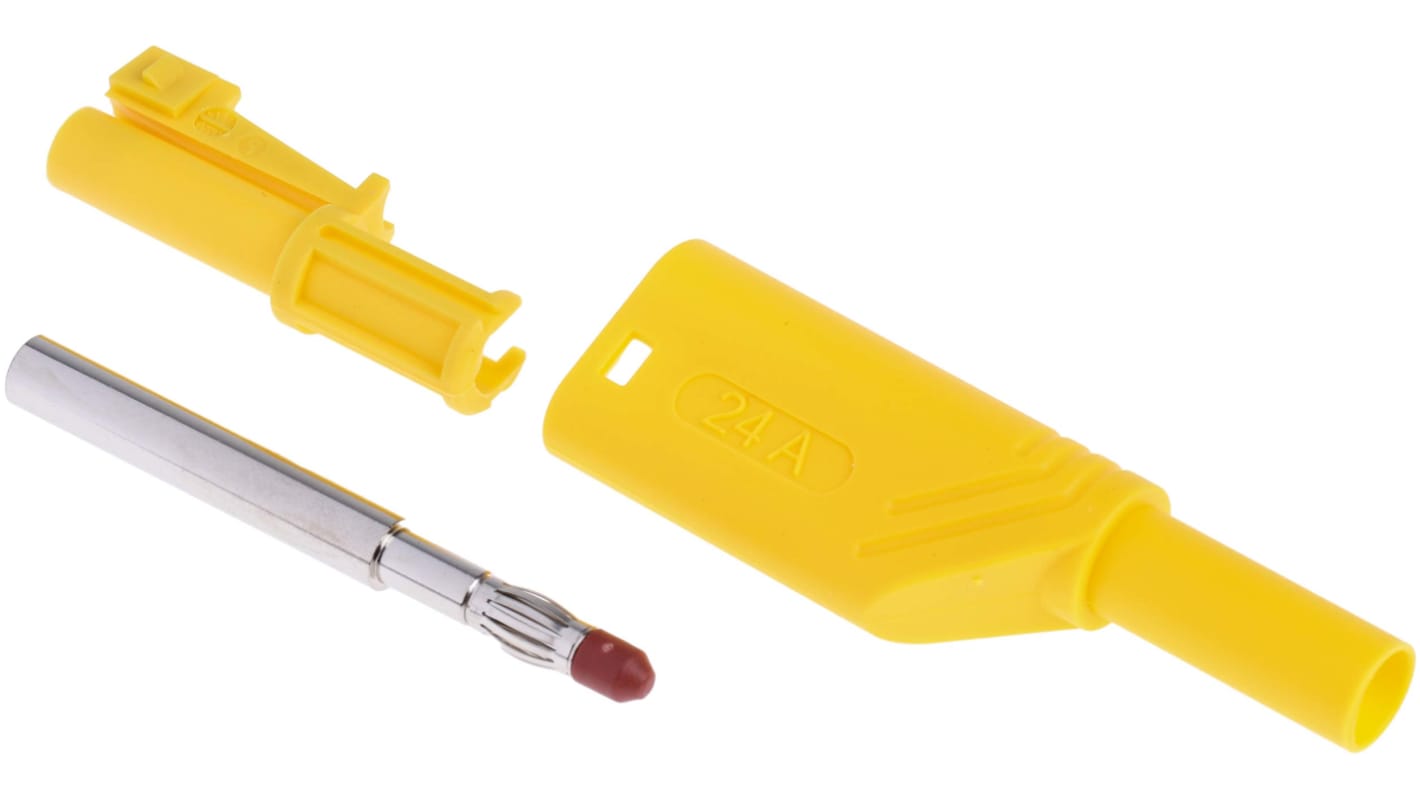

Hirschmann Test & Measurement Yellow Male Banana Plug, 4 mm Connector, Screw Termination, Nickel Plating
- RS Stock No.:
- 511-4665
- Mfr. Part No.:
- 934099103
- Brand:
- Hirschmann Test & Measurement
Bulk discount available
Subtotal (1 unit)*
£3.04
(exc. VAT)
£3.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 484 unit(s) ready to ship
- Plus 105 unit(s) ready to ship from another location
- Plus 451 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £3.04 |
10 - 24 | £2.81 |
25 - 49 | £2.55 |
50 + | £2.35 |
*price indicative
- RS Stock No.:
- 511-4665
- Mfr. Part No.:
- 934099103
- Brand:
- Hirschmann Test & Measurement
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hirschmann Test & Measurement | |
Colour | Yellow | |
Gender | Male | |
Termination Method | Screw | |
Connector Size | 4 mm | |
Contact Plating | Nickel | |
Type | Banana Plug | |
Contact Material | Beryllium Copper | |
Select all | ||
---|---|---|
Brand Hirschmann Test & Measurement | ||
Colour Yellow | ||
Gender Male | ||
Termination Method Screw | ||
Connector Size 4 mm | ||
Contact Plating Nickel | ||
Type Banana Plug | ||
Contact Material Beryllium Copper | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
LAS S WS series stackable 4 mm sockets
Hirschmann Test and Measurement LAS S WS 4mm nickel plated brass stackable cable plug connector with screw termination and caged spring, simple assembly via the 'Click System', available in a variety of colours. These 4mm safety plug connectors are suitable for leads with a conductor cross section of 0.5mm2 to 1.5mm2 and an outer diameter maximum of 3.2mm.
Rated voltage 1000 VAC/DC
CAT II (600 Vac/DC), CAT III
Rated current 24A
Spring loaded pin
CAT II (600 Vac/DC), CAT III
Rated current 24A
Spring loaded pin
Standards
IEC 61010 CAT II
