Staubli Black Female Banana Socket, 6 mm Connector, Crimp Termination, 100A, 600V, Silver Plating
- RS Stock No.:
- 281-7181
- Mfr. Part No.:
- 15.0084-21
- Brand:
- Staubli
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 281-7181
- Mfr. Part No.:
- 15.0084-21
- Brand:
- Staubli
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Staubli | |
| Colour | Black | |
| Gender | Female | |
| Termination Method | Crimp | |
| Voltage Rating | 600V | |
| Current Rating | 100A | |
| Connector Size | 6 mm | |
| Contact Plating | Silver | |
| Length | 67mm | |
| Type | Banana Socket | |
| Contact Material | Brass | |
Select all | ||
|---|---|---|
Brand Staubli | ||
Colour Black | ||
Gender Female | ||
Termination Method Crimp | ||
Voltage Rating 600V | ||
Current Rating 100A | ||
Connector Size 6 mm | ||
Contact Plating Silver | ||
Length 67mm | ||
Type Banana Socket | ||
Contact Material Brass | ||
- COO (Country of Origin):
- CH
90° Cable Socket
Mates with the 6mm panel mount and surface mount plugs (1)
Can be crimped (by means of a ring terminal) onto a cable conductor with a max . cross-section of 16mm2

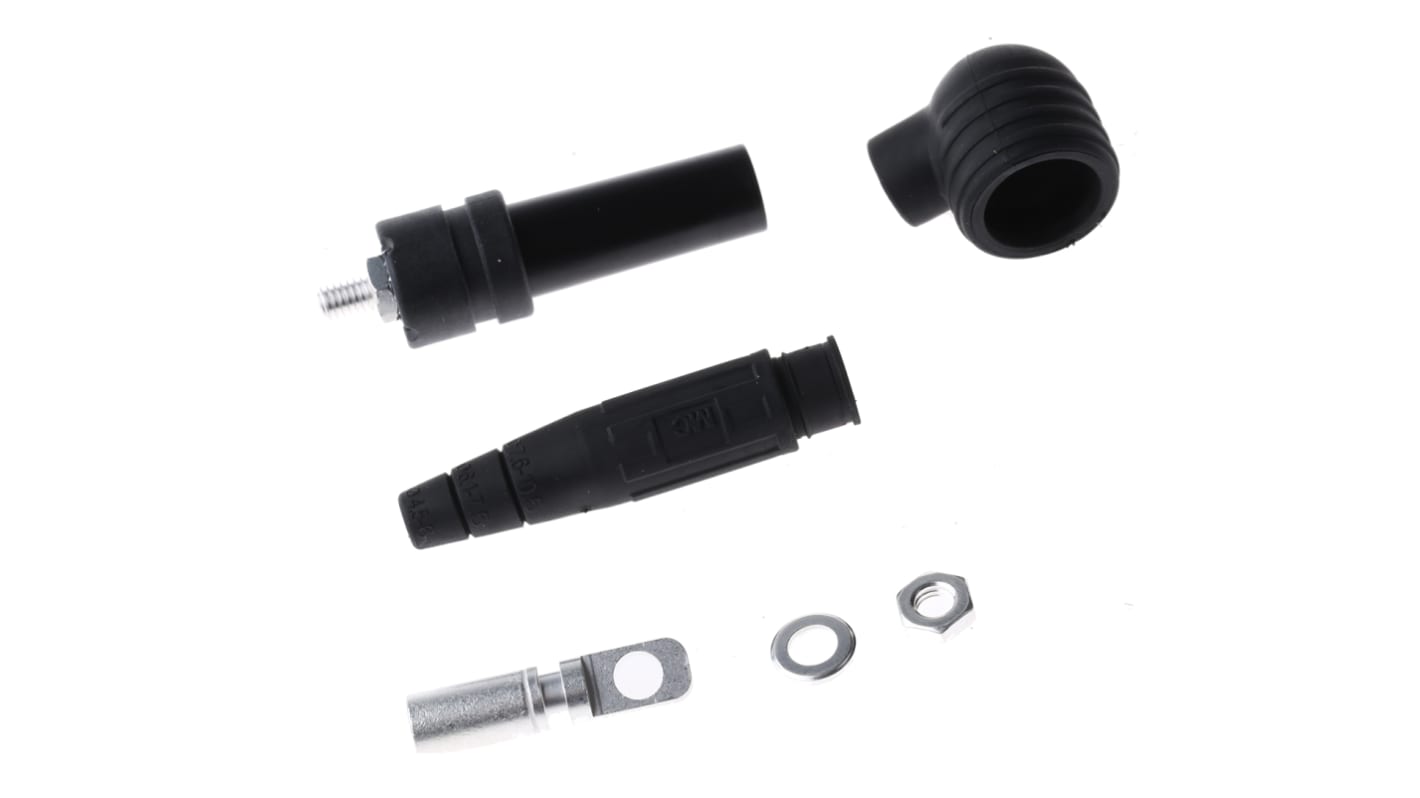

The connector is made up of these: Socket body, Washer, M6 16mm2 ring terminal, M6 nut, Heat-shrink form insulator, Heat-shrink sleeve
Current rating: 100A (with a 16mm2 cable)
Lantern Style Contacts
Touch-proof
Self Locking 'Push-Pull' principle
Can be crimped (by means of a ring terminal) onto a cable conductor with a max . cross-section of 16mm2
The connector is made up of these: Socket body, Washer, M6 16mm2 ring terminal, M6 nut, Heat-shrink form insulator, Heat-shrink sleeve
Current rating: 100A (with a 16mm2 cable)
Lantern Style Contacts
Touch-proof
Self Locking 'Push-Pull' principle
Note
6mm Multi-Contact
6mm plugs and sockets with a plastic insulation and fitted with lantern style contacts. They are suited idealy where higher power connections are required, such as for use in laboratories, test facilities, schools and industry. All parts incorporate a self locking system that operates on a push-pull principle. The snap-in lock engages when the plug is inserted. However, in order to disconnect the plug it must first be pushed and then pulled.
