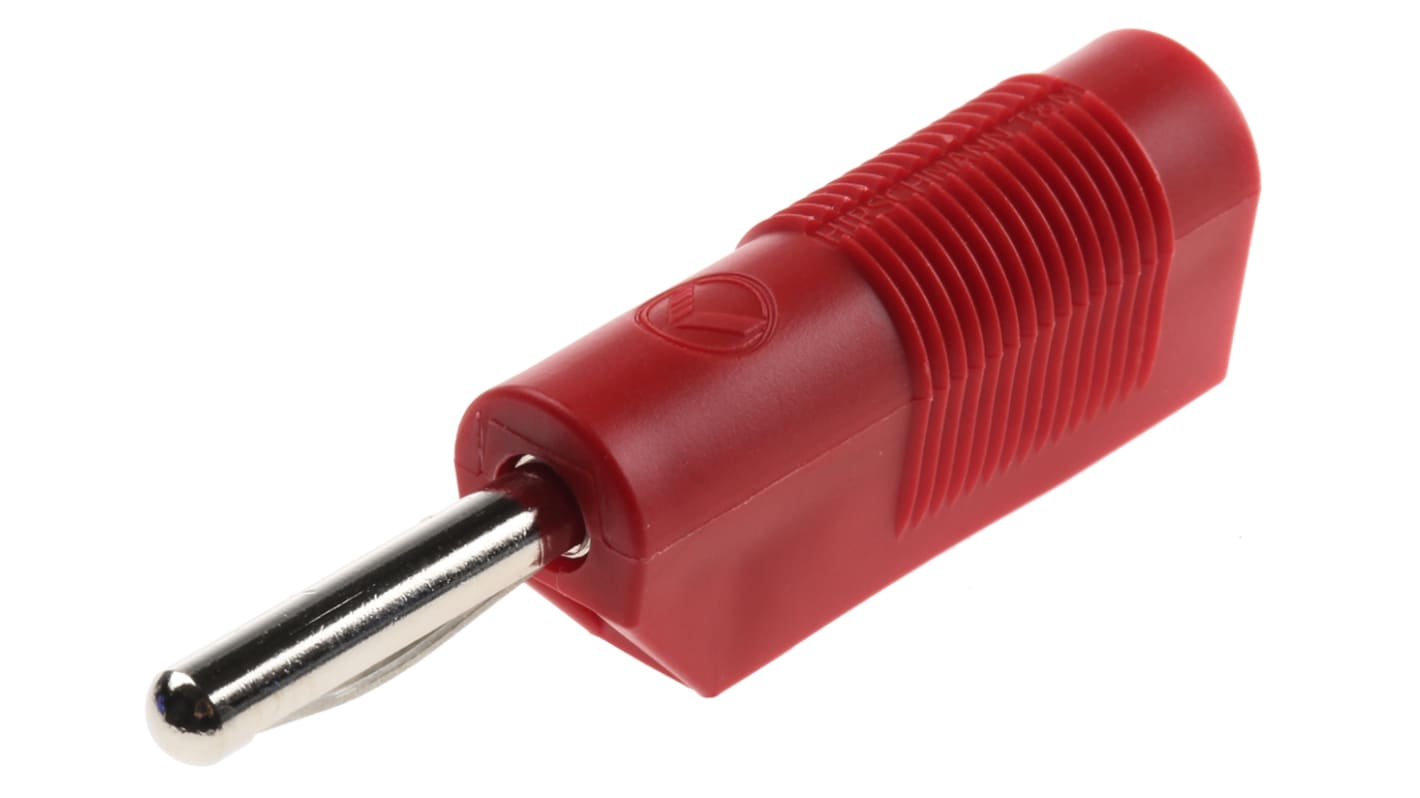

Hirschmann Test & Measurement Red Male Banana Plug, 4 mm Connector, Screw Termination, 30A, 60V dc, Nickel Plating
- RS Stock No.:
- 190-2647
- Mfr. Part No.:
- 930435101
- Brand:
- Hirschmann Test & Measurement
Subtotal (1 box of 500 units)*
£848.50
(exc. VAT)
£1,018.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,000 unit(s) shipping from 08 October 2025
- Plus 4,500 unit(s) shipping from 05 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 500 + | £1.697 | £848.50 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£2.76
(exc. VAT)
£3.31
(inc. VAT)
- RS Stock No.:
- 190-2647
- Mfr. Part No.:
- 930435101
- Brand:
- Hirschmann Test & Measurement
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirschmann Test & Measurement | |
| Colour | Red | |
| Gender | Male | |
| Termination Method | Screw | |
| Voltage Rating | 60V dc | |
| Connector Size | 4 mm | |
| Current Rating | 30A | |
| Contact Plating | Nickel | |
| Spring Contact | Yes | |
| Length | 55mm | |
| Contact Material | Brass | |
| Type | Banana Plug | |
| Insulation Material | PP | |
Select all | ||
|---|---|---|
Brand Hirschmann Test & Measurement | ||
Colour Red | ||
Gender Male | ||
Termination Method Screw | ||
Voltage Rating 60V dc | ||
Connector Size 4 mm | ||
Current Rating 30A | ||
Contact Plating Nickel | ||
Spring Contact Yes | ||
Length 55mm | ||
Contact Material Brass | ||
Type Banana Plug | ||
Insulation Material PP | ||
VSB 20 Fully Mating Connector
Fully mating connector with cable entries lengthways or transverse
Touch-safe tower construction
Screw connection up to maximum conductor cross-section of 2.5 mm2
External diameter for the cable to be connected max. Ø 4 mm
Inflammability in accordance with UL 94 V-2
Touch-safe tower construction
Screw connection up to maximum conductor cross-section of 2.5 mm2
External diameter for the cable to be connected max. Ø 4 mm
Inflammability in accordance with UL 94 V-2
Hirschmann Test & Measurement Banana Plug
The Hirschmann test & measurement red, male banana plug is a fully mating 4mm, connector with cable entries. It has a voltage rating of 60VDC and a current rating of 30A.
Features and Benefits
Nickel plated brass contacts
Insulation material is PP
Screw termination up to maximum conductor cross-section of 2.5mm²
Spring contact
Length is 55mm
Insulation material is PP
Screw termination up to maximum conductor cross-section of 2.5mm²
Spring contact
Length is 55mm
Applications
Electrical connections
Electronic connections
Electronic connections
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL 94 V-2 approved
BS EN 61340-5-1:2007
UL 94 V-2 approved
