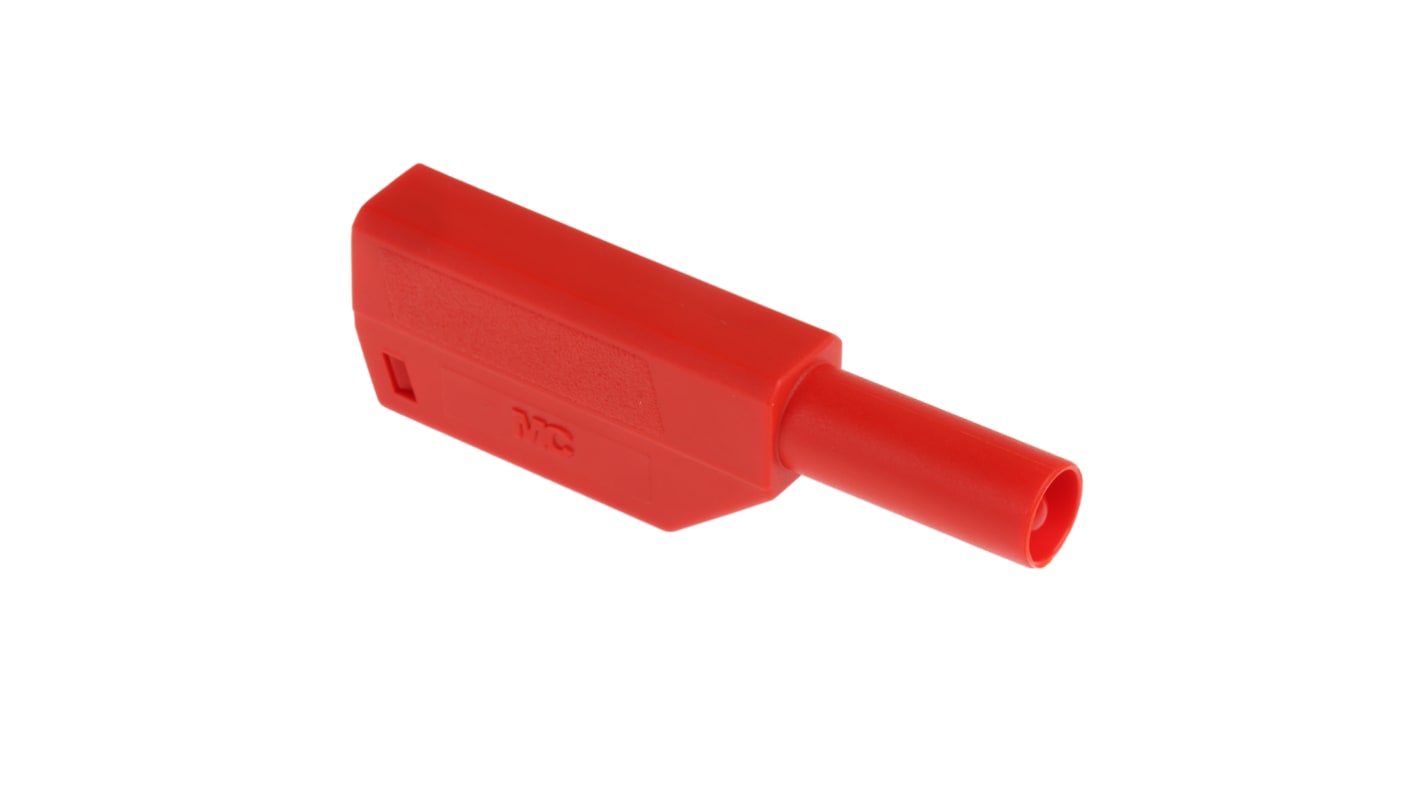

Staubli Red Male Banana Plug, 4 mm Connector, Solder Termination, 32A, 1000V, Gold Plating
- RS Stock No.:
- 446-844
- Mfr. Part No.:
- 22.2380-22 22.1203
- Brand:
- Staubli
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£3.10
(exc. VAT)
£3.72
(inc. VAT)
- RS Stock No.:
- 446-844
- Mfr. Part No.:
- 22.2380-22 22.1203
- Brand:
- Staubli
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Staubli | |
| Colour | Red | |
| Gender | Male | |
| Termination Method | Solder | |
| Voltage Rating | 1000V | |
| Connector Size | 4 mm | |
| Current Rating | 32A | |
| Contact Plating | Gold | |
| Spring Contact | Yes | |
| Length | 56.3mm | |
| Contact Material | Brass | |
| Type | Banana Plug | |
| Insulation Material | Polyamide | |
Select all | ||
|---|---|---|
Brand Staubli | ||
Colour Red | ||
Gender Male | ||
Termination Method Solder | ||
Voltage Rating 1000V | ||
Connector Size 4 mm | ||
Current Rating 32A | ||
Contact Plating Gold | ||
Spring Contact Yes | ||
Length 56.3mm | ||
Contact Material Brass | ||
Type Banana Plug | ||
Insulation Material Polyamide | ||
- COO (Country of Origin):
- CH
Multi Contact Male Banana Plug
The Multi Contact red, male banana plug is a 4 mm connector and is used for joining wires to electronic equipment. It has spring-loaded Multilam for self-assembly of test leads and a rigid insulating sleeve. The male plug incorporates enhanced cable retention system and has a voltage rating of 1kV and current rating of 32A.
Features and Benefits
Solder termination
Lantern style spring contacts
Non-retractable shrouds
Designed for 2.5 mm² cable
Up to 5000 insertions/withdrawals
Shrouded centre contacts
Maximum cable diameter is 4.1 mm
Gold plated brass or copper alloy contact material
Length is 56.3 mm
Insulation material polyamide
Lantern style spring contacts
Non-retractable shrouds
Designed for 2.5 mm² cable
Up to 5000 insertions/withdrawals
Shrouded centre contacts
Maximum cable diameter is 4.1 mm
Gold plated brass or copper alloy contact material
Length is 56.3 mm
Insulation material polyamide
Applications
These 4 mm connectors are popular as they can be connected and disconnected quickly and provide a high-quality connection in many applications such as:
Automotive (car manufacturing plant equipment)
Motorsports
Aeronautics (plant equipment)
Automotive (car manufacturing plant equipment)
Motorsports
Aeronautics (plant equipment)
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IEC1010
BS EN 61340-5-1:2007
IEC1010
What is MULTILAM technology?
MULTILAM is a high-power contact solution used in a socket or plug, which is continuously being developed further. Inserted between two surfaces the MULTILAM is a band which forms a contact cage. Ideal for connectors which require linear or rotary movements due to its ability to excel in performance from signal currents up to extremely high currents. MULTILAM bands significantly reduce the overall contact resistance due to the numerous contact points provided, this is because the design creates many louvres (slats). Stäubli describe these bands as torsion or leaf spring contact elements.
MULTILAM is a high-power contact solution used in a socket or plug, which is continuously being developed further. Inserted between two surfaces the MULTILAM is a band which forms a contact cage. Ideal for connectors which require linear or rotary movements due to its ability to excel in performance from signal currents up to extremely high currents. MULTILAM bands significantly reduce the overall contact resistance due to the numerous contact points provided, this is because the design creates many louvres (slats). Stäubli describe these bands as torsion or leaf spring contact elements.
