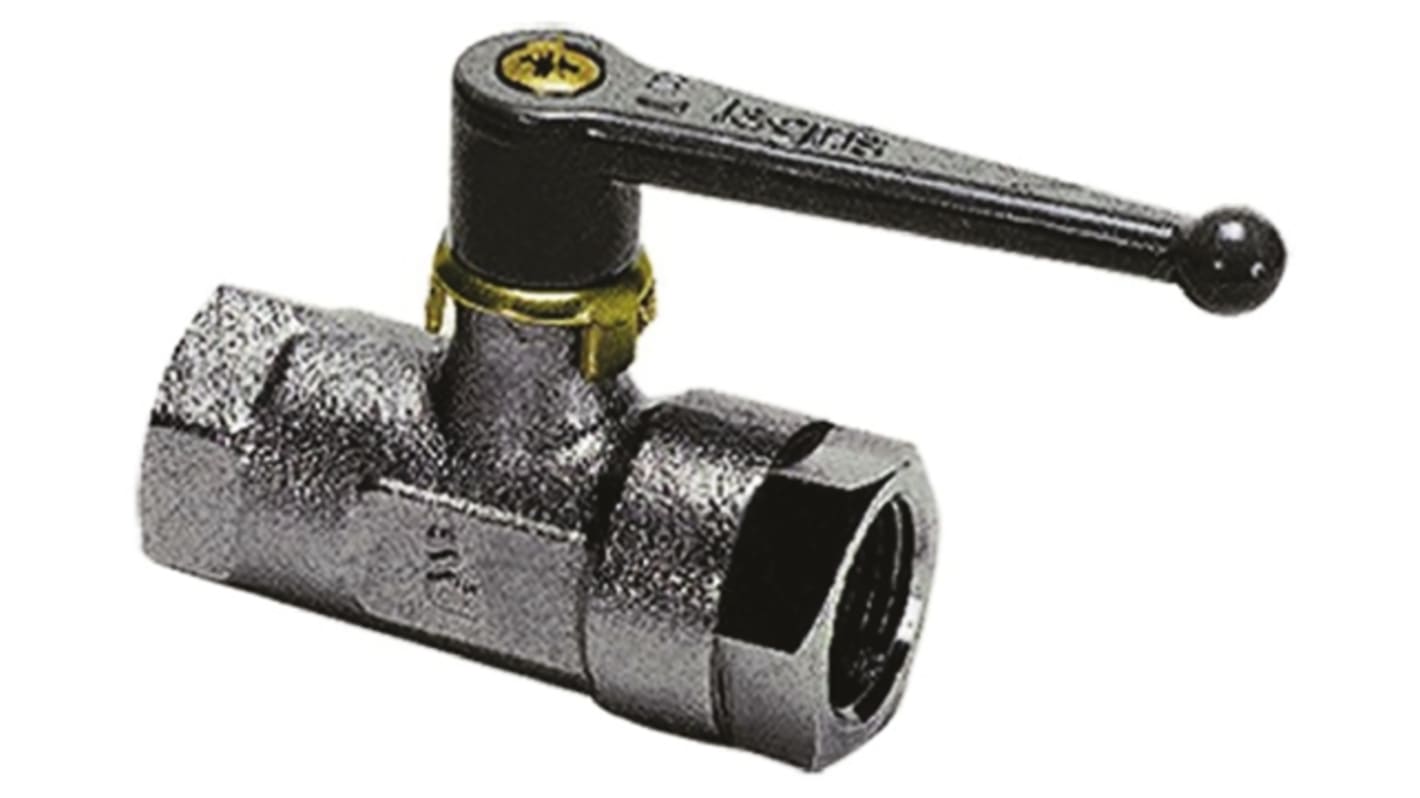

Legris Sand Blasted Nickel Plated Brass Threaded Threaded, Ball Valve, G

View all Ball Valves
Bulk discount available

Subtotal (1 box of 5 units)*

£171.44

(exc. VAT)

£205.73

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 02 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 - 4£171.44£34.288
5 - 9£166.29£33.258
10 +£161.33£32.266

*price indicative

RS Stock No.:
756-6825
Mfr. Part No.:
0402 13 21
Brand:
Legris
Find similar products by selecting one or more attributes.
Select all

Brand

Legris

Product Type

Ball Valve

Inlet Connection Type

Threaded

Outlet Connection Type

Threaded

Ball Material

Polished Brass

Seal Material

Graphite

Outlet Port Size

12.7 mm

Body Material

Sand Blasted Nickel Plated Brass

Outlet Thread Standard

G

Maximum Operating Temperature

80°C

Handle Material

Zinc Alloy

Standards/Approvals

CE

COO (Country of Origin):
FR

In-Line Ball Valve Double Female


The standard Legris ball valve provides a reliable means of opening and closing fluid systems. It requires a simple quarter turn of the handle to operate the two-way version

In-line ball valve for closing fluid systems with a simple quarter turn of the handle.

Full flow

Optimum sealing due to compensating "O" rings

Excellent resistance to scaling due to ball seal configuration

Maximum working pressure: 40 bar

Working temperature: -20 → 80 °C

Retaining nut: Nickel plated brass

Ball Valve, Standard, Padlockable and Panel Mount


These nickel plated brass ball valves have seals designed to remove scale deposits with each operation. The polished brass ball is sealed on both sides by nylon ring seals that are supported by compensating nitrile ’O’ rings. This arrangement keeps the seal in contact with the ball, preventing leakage should seal wear occur. A single threaded insert forms part of the valve body, maintaining the required seal compression and allowing the valve to be disassembled easily for inspection.
