RS PRO Brass Full Bore, 2 Way, Ball Valve, Threaded, BSPP 6.35mm, 40 → 30bar Operating Pressure
- RS Stock No.:
- 733-5230
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£9.31
(exc. VAT)
£11.17
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 29 unit(s) ready to ship
- Plus 44 unit(s) ready to ship from another location
- Plus 196 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £9.31 |
5 - 9 | £9.05 |
10 + | £8.72 |
*price indicative
- RS Stock No.:
- 733-5230
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Type | Full Bore, 2 Way | |
Ball Material | Chrome Plated Brass | |
Attachment Type | Threaded | |
Thread Standard | BSPP | |
Thread Size | 6.35mm | |
Body Material | Brass | |
Pipe Diameter | 8mm | |
Safe for Use With | Air, Oil, Steam, Water | |
Handle Type | Lever | |
Handle Material | PVC Coated Steel | |
Maximum Working Pressure psi | 580psi | |
Operating Pressure | 40 → 30bar | |
Maximum Working Pressure bar | 40bar | |
Handle Colour | Red | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Type Full Bore, 2 Way | ||
Ball Material Chrome Plated Brass | ||
Attachment Type Threaded | ||
Thread Standard BSPP | ||
Thread Size 6.35mm | ||
Body Material Brass | ||
Pipe Diameter 8mm | ||
Safe for Use With Air, Oil, Steam, Water | ||
Handle Type Lever | ||
Handle Material PVC Coated Steel | ||
Maximum Working Pressure psi 580psi | ||
Operating Pressure 40 → 30bar | ||
Maximum Working Pressure bar 40bar | ||
Handle Colour Red | ||
- COO (Country of Origin):
- IT

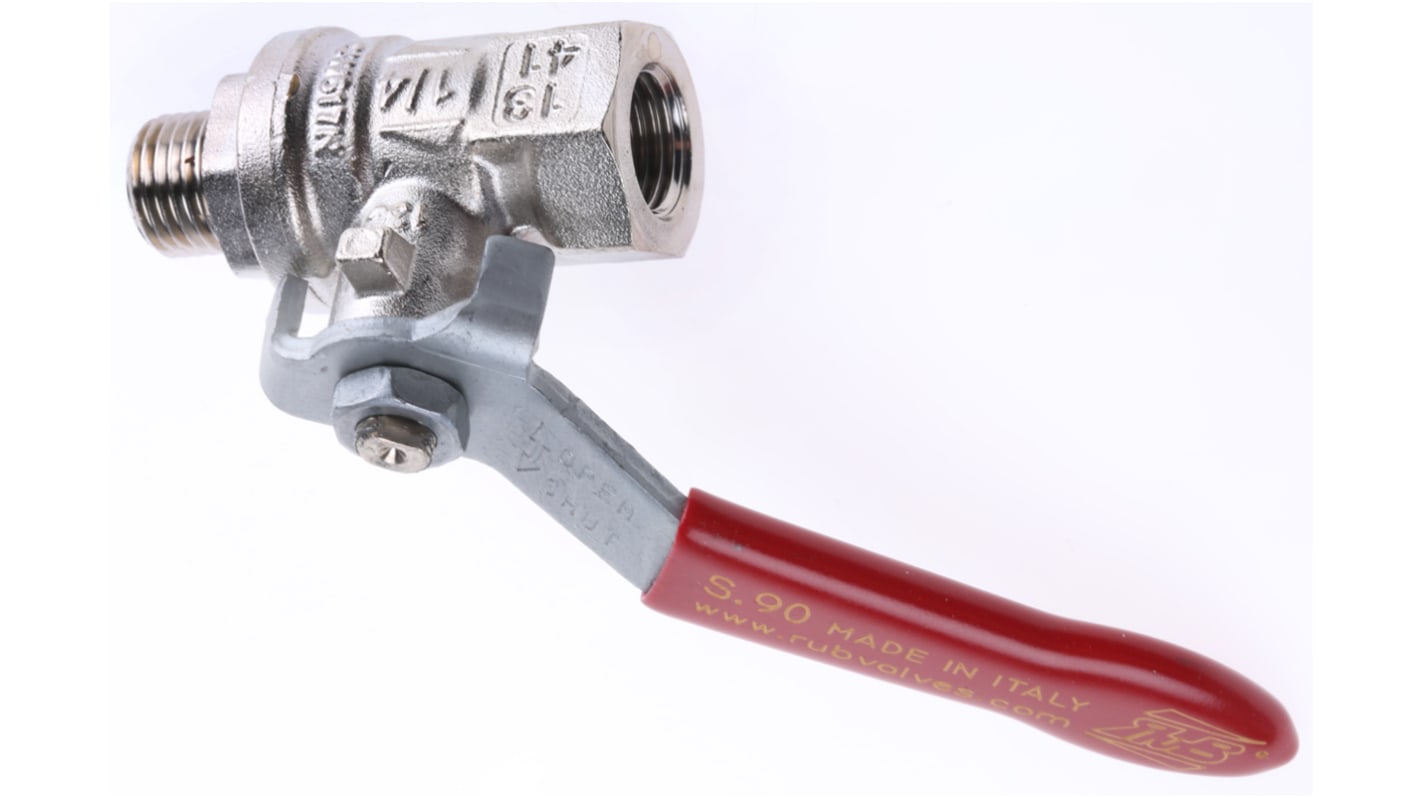

RS PRO Brass High-Pressure Ball Valve 1/4 in BSPP 2 Way
This brass high-pressure ball valve from RS PRO gives you a reliable, lever-operated system for controlling flow and pressure rates. It's simple to open and close the valve using the quarter-turn lever handle. You can also install it in either direction for added versatility.
Thanks to its maximum operating temperature of +170°C, the valve is suitable for high-temperature hot water services in industrial applications. The steel handle is coated in insulating polyvinyl chloride (PVC), making it safe to touch in high temperatures and giving you a firm grip so you can easily turn the handle.
The brass stem is blowout-proof in high-pressure applications and is nickel-plated for corrosion resistance. You'll commonly find this type of valve used in applications such as heating, water treatment and gas and liquid flow control systems.
Thanks to its maximum operating temperature of +170°C, the valve is suitable for high-temperature hot water services in industrial applications. The steel handle is coated in insulating polyvinyl chloride (PVC), making it safe to touch in high temperatures and giving you a firm grip so you can easily turn the handle.
The brass stem is blowout-proof in high-pressure applications and is nickel-plated for corrosion resistance. You'll commonly find this type of valve used in applications such as heating, water treatment and gas and liquid flow control systems.
Features and Benefits
• Threaded attachment type
• Brass ball material
• Brass body material
• Connection size of 1/4 in
• Red handle colour
• PVC (polyvinyl chloride) coated steel handle material
• Lever handle type
• Maximum working pressure of 32 bar
• Safe for use with air, oil, steam and water
• Threaded connection of 1/4 in BSPP (British Standard Parallel Pipe)
• Two-way
• Brass ball material
• Brass body material
• Connection size of 1/4 in
• Red handle colour
• PVC (polyvinyl chloride) coated steel handle material
• Lever handle type
• Maximum working pressure of 32 bar
• Safe for use with air, oil, steam and water
• Threaded connection of 1/4 in BSPP (British Standard Parallel Pipe)
• Two-way
