RS PRO Brass Threaded Threaded Ball 40 bar, Ball Valve

View all Ball Valves
Bulk discount available

Subtotal (1 unit)*

£54.97

(exc. VAT)

£65.96

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 39 unit(s) shipping from 11 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£54.97
5 - 9£53.31
10 +£51.55

*price indicative

RS Stock No.:
733-5173
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Valve Type

Ball

Outlet Connection Type

Threaded

Inlet Connection Type

Threaded

Product Type

Ball Valve

Inlet Port Size

1-1/2 in

Outlet Port Size

1-1/2 in

Body Material

Brass

Inlet Port Gender

Female

Minimum Operating Temperature

-40°C

Outlet Port Gender

Female

Handle Material

Polyvinyl Chloride Coated Steel

Maximum Operating Temperature

170°C

Standards/Approvals

SVGW (Switzerland), RoHS (EU), The Australian Gas Association (Australia), GOST-R (Russia), Factory Mutual (United States), PED Directive Assessment according to Pressure Equipment Directive 2014/68/UE module B+D by ICIM (0425), DIN-DVGW (Germany) - MOP 5 B 0,1,EAC - Declaration ofity (Russia,Kazakhstan,Belarus), ARGB-KVBG (Belgium) - MOP 5 bar for outside building gas installation, BSI Group (United Kingdom)

Maximum Operating Pressure

40 bar

COO (Country of Origin):
IT

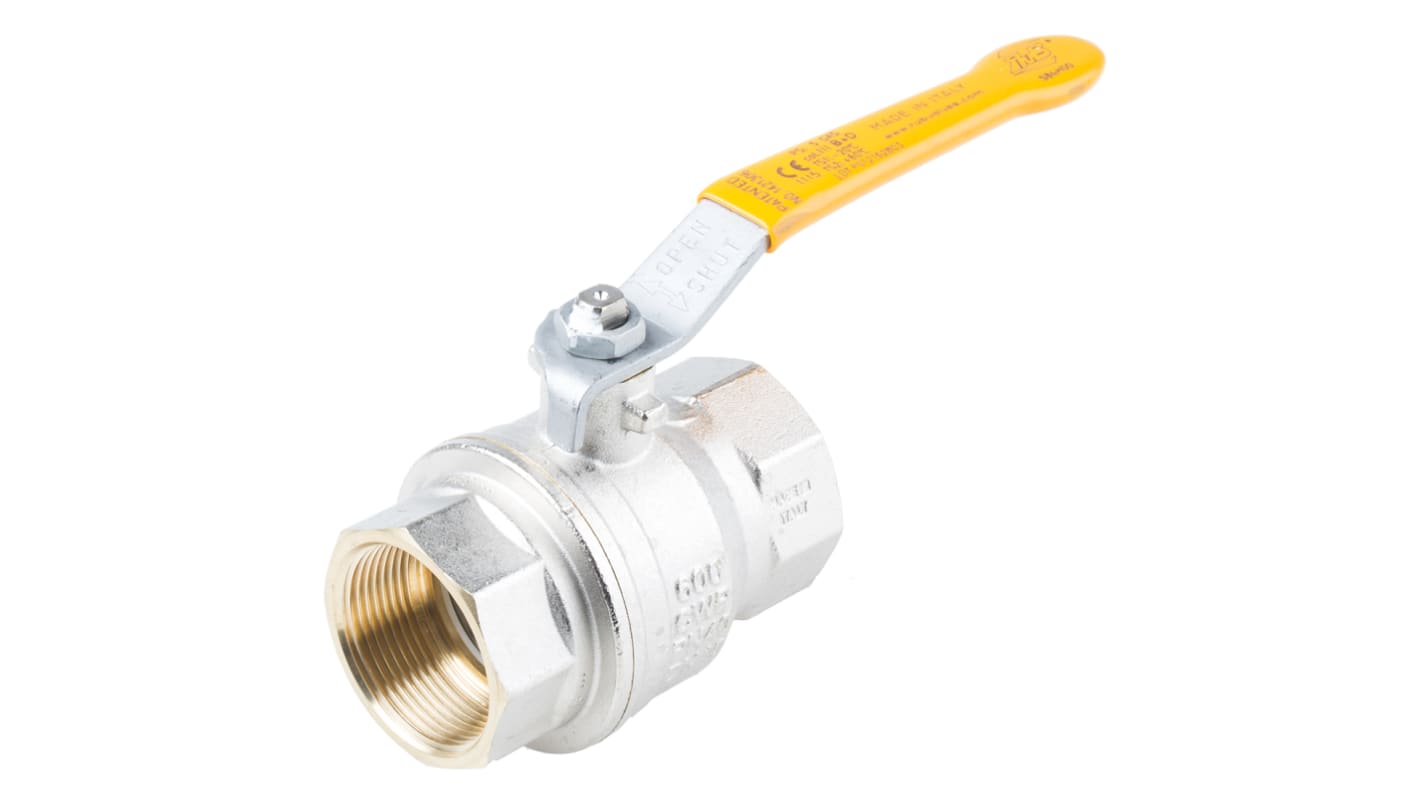

RS PRO Brass High-Pressure Ball Valve 1-1/2 in BSPP 2 Way


Need to regulate water flow and pressure while operating shut-off valves? Choose this manual ball valve from RS PRO. For ease of use, simply give the lever a quarter turn to open or close the valve. The engraved handle is clearly marked so you can easily tell whether the valve is open or closed.

This valve has no metal-to-metal moving parts, significantly reducing the risk of abrasion and making this valve virtually maintenance-free. Travel stops on the valve's body prevent stress at the stem to keep the valve in top working condition.

The seals are also greased with a silicone-free lubricant to prevent wear on the components and minimise the risk of leaks.

The valve is certified for use with gas and is safe for use with pipes carrying drinking water. As it can handle high temperatures and pressures, it's suitable for hot water services in domestic, commercial and industrial environments.

Features and Benefits


  • Threaded attachment type

  • Brass ball material

  • Brass body material

  • Connection size of 40 mm or 1-1/2 in

  • Yellow handle colour

  • PVC (polyvinyl chloride) coated steel handle material

  • Lever handle type

  • Maximum working pressure of 40 bar

  • Safe for use with gas

  • Threaded connection of 1-1/2 in BSPP (British Standard Parallel Pipe)

  • Two-way
