Sferaco Nickel Plated Brass Threaded Threaded Ball, BSP 40 bar, Manual Ball Valve
- RS Stock No.:
- 648-723
- Mfr. Part No.:
- 610008
- Brand:
- Sferaco
Subtotal (1 unit)*
£71.71
(exc. VAT)
£86.05
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 30 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £71.71 |
*price indicative
- RS Stock No.:
- 648-723
- Mfr. Part No.:
- 610008
- Brand:
- Sferaco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sferaco | |
| Outlet Connection Type | Threaded | |
| Inlet Connection Type | Threaded | |
| Product Type | Manual Ball Valve | |
| Valve Type | Ball | |
| Inlet Port Size | 1-1/2 in | |
| Outlet Port Size | 1-1/2 in | |
| Body Material | Nickel Plated Brass | |
| Inlet Port Gender | Female | |
| Outlet Port Gender | Female | |
| Outlet Thread Standard | BSP | |
| Minimum Operating Temperature | -5°C | |
| Handle Material | Galvanised Steel | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | ISO 228-1, A.C.S. N° 22 ACC LY 825, ISO 9001:2015, directive 2014/68/EU, 4MS, NF079, NF, ACS | |
| Maximum Operating Pressure | 40 bar | |
| Series | 610 | |
| Select all | ||
|---|---|---|
Brand Sferaco | ||
Outlet Connection Type Threaded | ||
Inlet Connection Type Threaded | ||
Product Type Manual Ball Valve | ||
Valve Type Ball | ||
Inlet Port Size 1-1/2 in | ||
Outlet Port Size 1-1/2 in | ||
Body Material Nickel Plated Brass | ||
Inlet Port Gender Female | ||
Outlet Port Gender Female | ||
Outlet Thread Standard BSP | ||
Minimum Operating Temperature -5°C | ||
Handle Material Galvanised Steel | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals ISO 228-1, A.C.S. N° 22 ACC LY 825, ISO 9001:2015, directive 2014/68/EU, 4MS, NF079, NF, ACS | ||
Maximum Operating Pressure 40 bar | ||
Series 610 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT

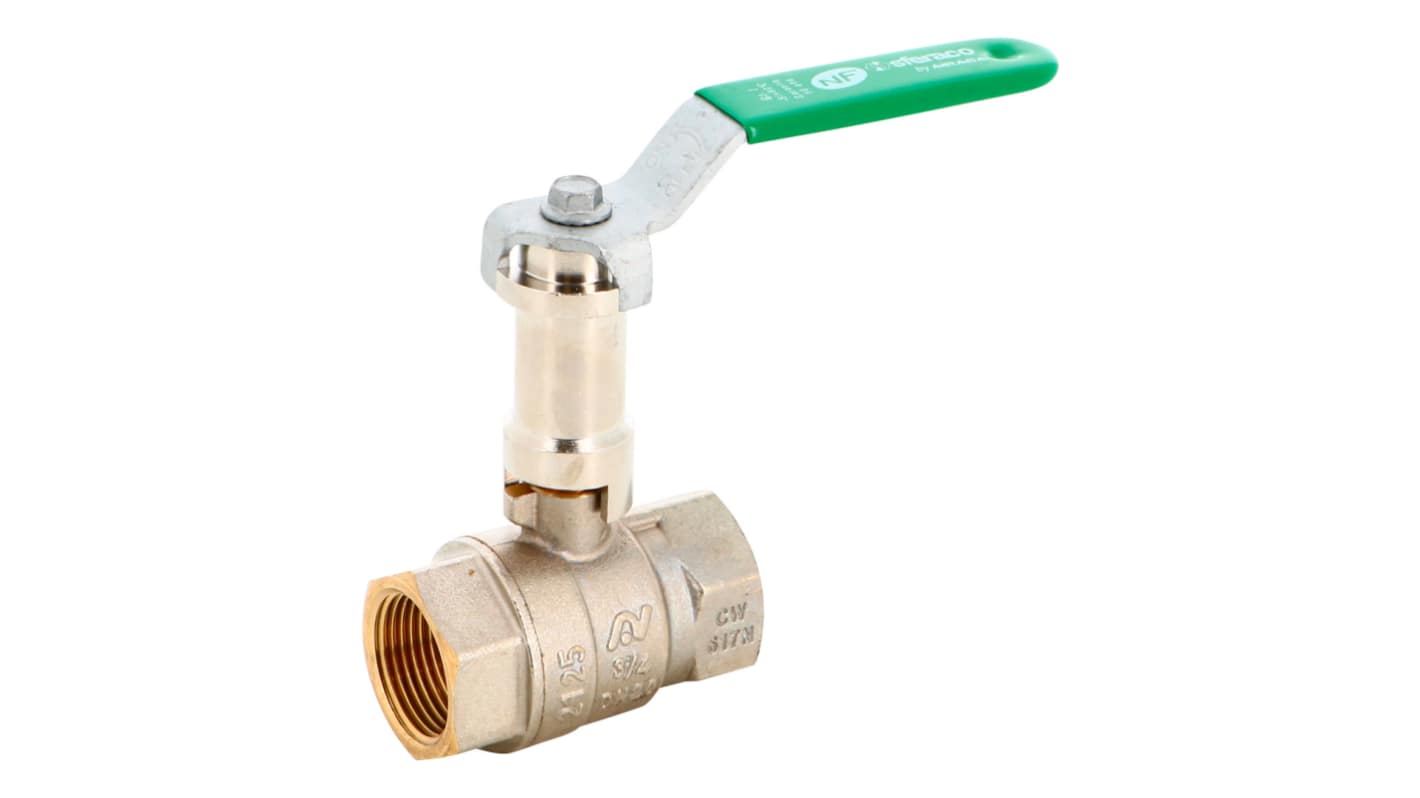

The Sferaco NF brass ball valve with stem extension ACS 4MS and green handle features a full bore design with flat sealing end, suitable for closing networks of drinking water, heating, watering, water distribution, and cooling systems. Certified by the French CSTB and compliant with NF079, it offers a 10-year warranty. The valve includes a stem extension for added insulation protection, PTFE packing, and an EPDM O-ring on the anti blow-out stem. It is equipped with a reversible anti-corrosion handle and a drilled ball to reduce bacteria growth and scaling.
Full bore
Anti blow-out stem
Solid ball
Anti-corrosion coating handle
