Sferaco Nickel Plated Brass Threaded Threaded Ball, BSP 30 bar, Manual Ball Valve

View all Ball Valves

Subtotal (1 unit)*

£12.03

(exc. VAT)

£14.44

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 30 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£12.03

*price indicative

RS Stock No.:
648-670
Mfr. Part No.:
616004
Brand:
Sferaco
Find similar products by selecting one or more attributes.
Select all

Brand

Sferaco

Inlet Connection Type

Threaded

Valve Type

Ball

Product Type

Manual Ball Valve

Outlet Connection Type

Threaded

Inlet Port Size

1/2 in

Outlet Port Size

14.5 mm

Body Material

Nickel Plated Brass

Inlet Port Gender

Female

Outlet Port Gender

Female

Minimum Operating Temperature

-10°C

Outlet Thread Standard

BSP

Maximum Operating Temperature

120°C

Handle Material

Steel Q235

Standards/Approvals

directive 2014/68/EU, ISO 228-1, A.C.S. N° 24 ACC LY 629, ISO 14001:2015, ISO 9001:2015, ACS

Series

616

Maximum Operating Pressure

30 bar

RoHS Status: Exempt

COO (Country of Origin):
CN

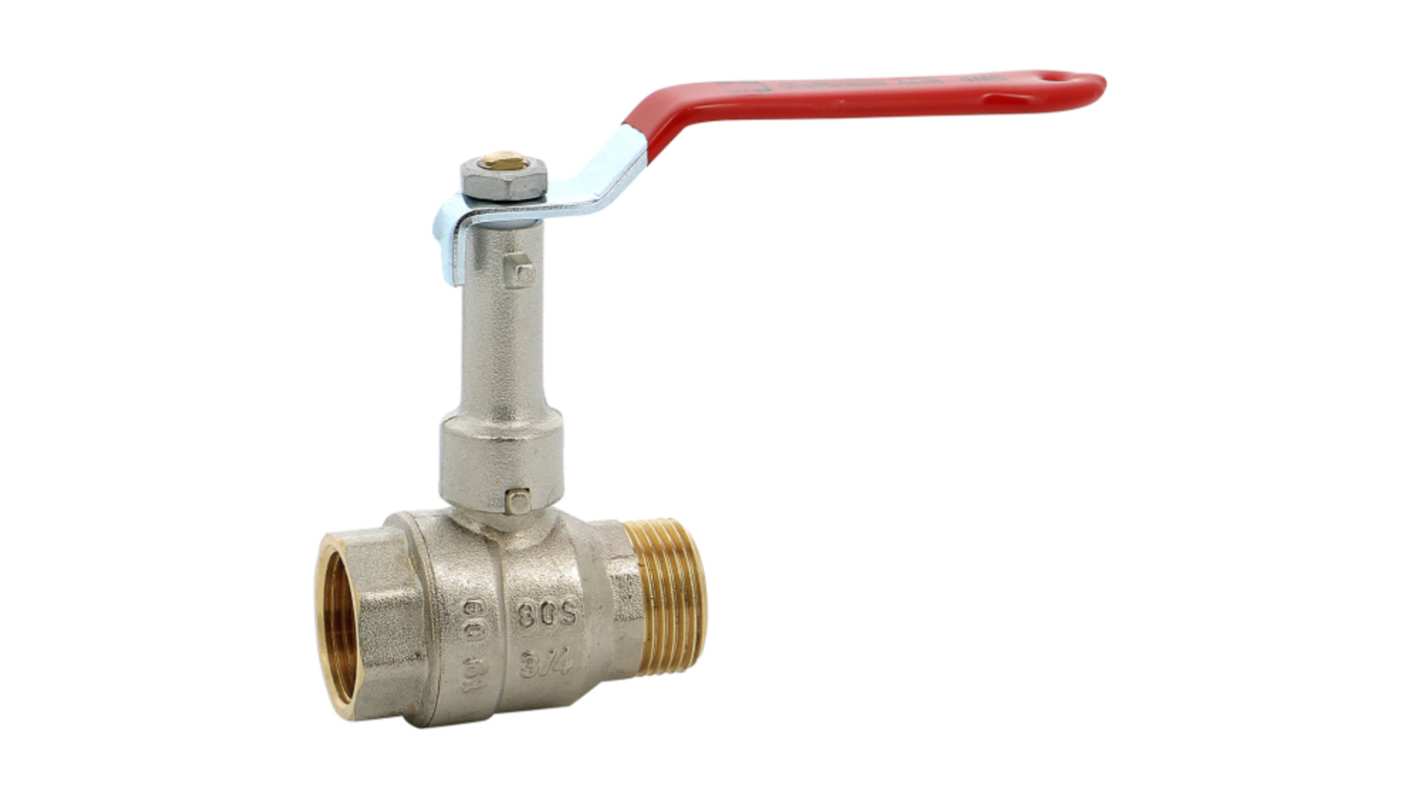

The Sferaco Brass ball valve with fixed stem extension ACS 4MS features a full bore design for drinking water and water distribution systems. It includes PTFE packing and a solid ball for reliable performance. The fixed stem extension is designed to protect the insulation, while the reversible steel handle with a Decrement coated nut ensures durability and resistance to external conditions.

Large flat sealing face

Fixed stem extension

Solid ball

PTFE packing

Flat steel or butterfly handle
