- RS Stock No.:
- 719-2086
- Mfr. Part No.:
- E2.6207-2Z/C3
- Brand:
- SKF
Available to back order for despatch 13/08/2024, delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£14.04
(exc. VAT)
£16.85
(inc. VAT)
Units | Per unit |
1 - 4 | £14.04 |
5 - 9 | £13.65 |
10 - 24 | £13.28 |
25 + | £12.92 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 719-2086
- Mfr. Part No.:
- E2.6207-2Z/C3
- Brand:
- SKF
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

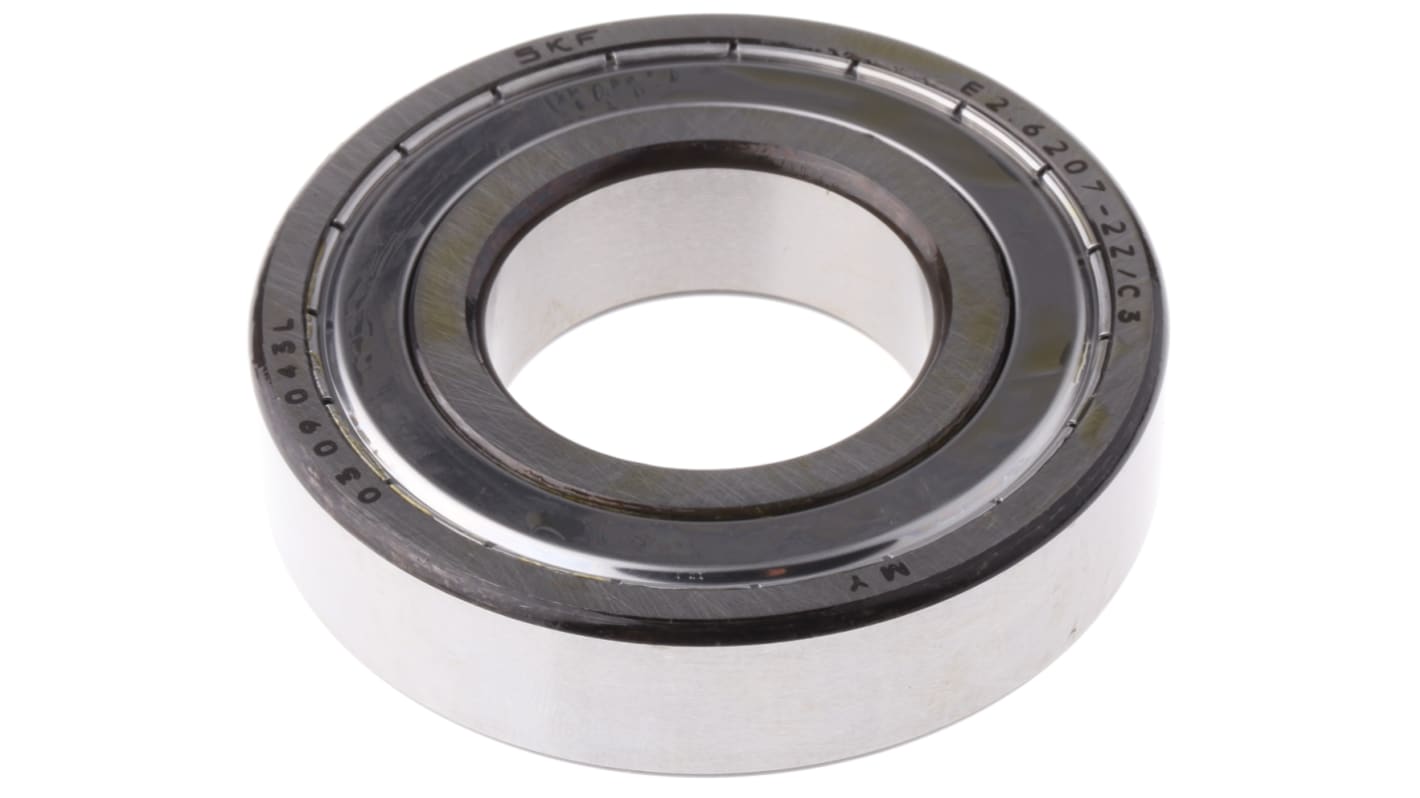

SKF E2 Energy Efficient Bearings
SKF E2 Energy Efficient Bearings are deep-groove, shielded, ultra-low friction bearings that feature an optimised design, balanced between internal geometry, grease and cage type.
With 30 to 50% lower friction when compared with standard SKF bearings, the energy savings achievable when using SKF Energy Efficient Bearings are substantial, and the bearing life is extended significantly - in most cases more than double.
SKF E2 Energy Efficient Bearings offer ultra-low friction and typically generate less heat and can operate at higher speeds than ISO or SKF Explorer Bearings.
Dimensionally fully-compatible with standard bearings
Typical applications for SKF Energy Efficient Bearings include:
Electric motors up to 37kW (50HP)
Light to medium-loaded machines with shaft diameters up to 60mm
Excellent drop-in replacement for in-service electric motors
Light to medium-loaded machines with shaft diameters up to 60mm
Excellent drop-in replacement for in-service electric motors
Specifications
Attribute | Value |
---|---|
Inside Diameter | 35mm |
Outside Diameter | 72mm |
Race Width | 17mm |
Ball Bearing Type | Single Row Deep Groove Ball Bearing |
Sealing Arrangement | Both Sides Shielded |
Bearing Clearance | C3 |
Material | Steel |
Ball Material | Steel |
Cage Material | Non-metallic |
Number of Rows | 1 |
Static Load Rating | 15.3kN |
Dynamic Load Rating | 25.5kN |
Bore Type | Parallel |
Bearing Series | 2 Light |
Race Type | Plain |
Partial Bearing Code | 6207 |
