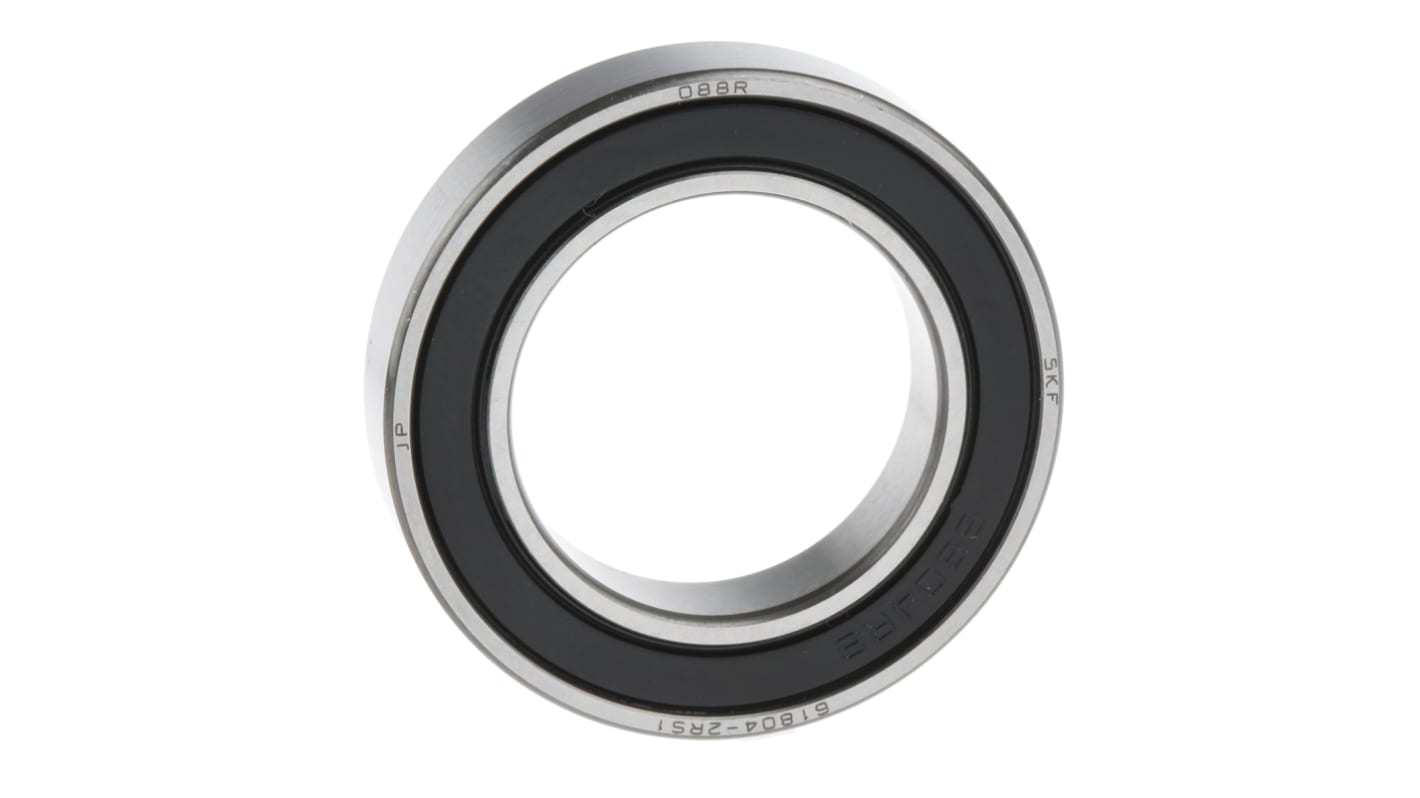

SKF 61804-2RS1 Single Row Deep Groove Ball Bearing- Both Sides Sealed 20mm I.D, 32mm O.D
- RS Stock No.:
- 285-0582
- Mfr. Part No.:
- 61804-2RS1
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£19.44
(exc. VAT)
£23.33
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 99 unit(s) ready to ship
- Plus 114 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £19.44 |
5 - 9 | £18.66 |
10 - 24 | £18.28 |
25 + | £17.90 |
*price indicative
- RS Stock No.:
- 285-0582
- Mfr. Part No.:
- 61804-2RS1
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 20mm | |
Outside Diameter | 32mm | |
Race Width | 7mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 2.32kN | |
Dynamic Load Rating | 4.03kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Race Material | Steel | |
Partial Bearing Code | 61804 | |
Model Number p | 618042RS | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 32mm | ||
Race Width 7mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 2.32kN | ||
Dynamic Load Rating 4.03kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Race Material Steel | ||
Partial Bearing Code 61804 | ||
Model Number p 618042RS | ||
Race Type Plain | ||
RoHS Status: Exempt
SKF Deep-groove Ball Bearing, Plain Race Type, 20 mm ID - 61804-2RS1
This ball bearing from SKF is a low-maintenance option for machinery that needs to handle both radial and axial loads. Thanks to rubber seals that keep dirt out of the bearing and lock the lubricant in, it's a reliable unit that you won't need to re-grease. The bearing is made entirely from steel to improve its durability and lifespan. It produces low levels of friction and won't overheat, making it suitable for use with machinery that operates at high rotational speeds.
• Parallel bore type
• Dynamic load rating of 4.03 kN
• Static load rating of 2.32 kN
• Inside diameter of 20 mm
• Outside diameter of 32 mm
• Single row
• Plain race type
• Race width of 7 mm
• Dynamic load rating of 4.03 kN
• Static load rating of 2.32 kN
• Inside diameter of 20 mm
• Outside diameter of 32 mm
• Single row
• Plain race type
• Race width of 7 mm
Application Information
• Automotive industry
• Packaging and processing plants
• Food and beverage industries
• Packaging and processing plants
• Food and beverage industries
How does the roller bearing work?
A roller bearing is a precision machine element that positions and supports rotating equipment. It minimises friction and noise, which reduces the need for maintenance of a machine's moving parts.
Why is the bearing's initial clearance usually greater than its operating clearance?
The bearing's operating clearance accommodates the thermal expansion of the bearing's parts as it reaches its operational temperature.
