RS PRO 626-2RS/C3 1 Row Ball Bearing - 6 mm ID, 19 mm OD
- RS Stock No.:
- 261-2636
- Distrelec Article No.:
- 304-19-208
- Mfr. Part No.:
- 626-2RS/C3
- Brand:
- RS PRO
Subtotal (1 pack of 10 units)*
£17.72
(exc. VAT)
£21.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 110 unit(s) ready to ship
- Plus 80 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £1.772 | £17.72 |
*price indicative
- RS Stock No.:
- 261-2636
- Distrelec Article No.:
- 304-19-208
- Mfr. Part No.:
- 626-2RS/C3
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Inside Diameter | 6 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 19 mm | |
| Race Width | 6mm | |
| Cage Material | Steel | |
| Race Material | Steel | |
| Ball Material | Steel | |
| End Type | Closed | |
| Number of Rows | 1 | |
| Internal Clearance | C3 | |
| Static Load Rating | 950N | |
| Dynamic Load Rating | 2.34kN | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 24000rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Inside Diameter 6 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 19 mm | ||
Race Width 6mm | ||
Cage Material Steel | ||
Race Material Steel | ||
Ball Material Steel | ||
End Type Closed | ||
Number of Rows 1 | ||
Internal Clearance C3 | ||
Static Load Rating 950N | ||
Dynamic Load Rating 2.34kN | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 24000rpm | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN

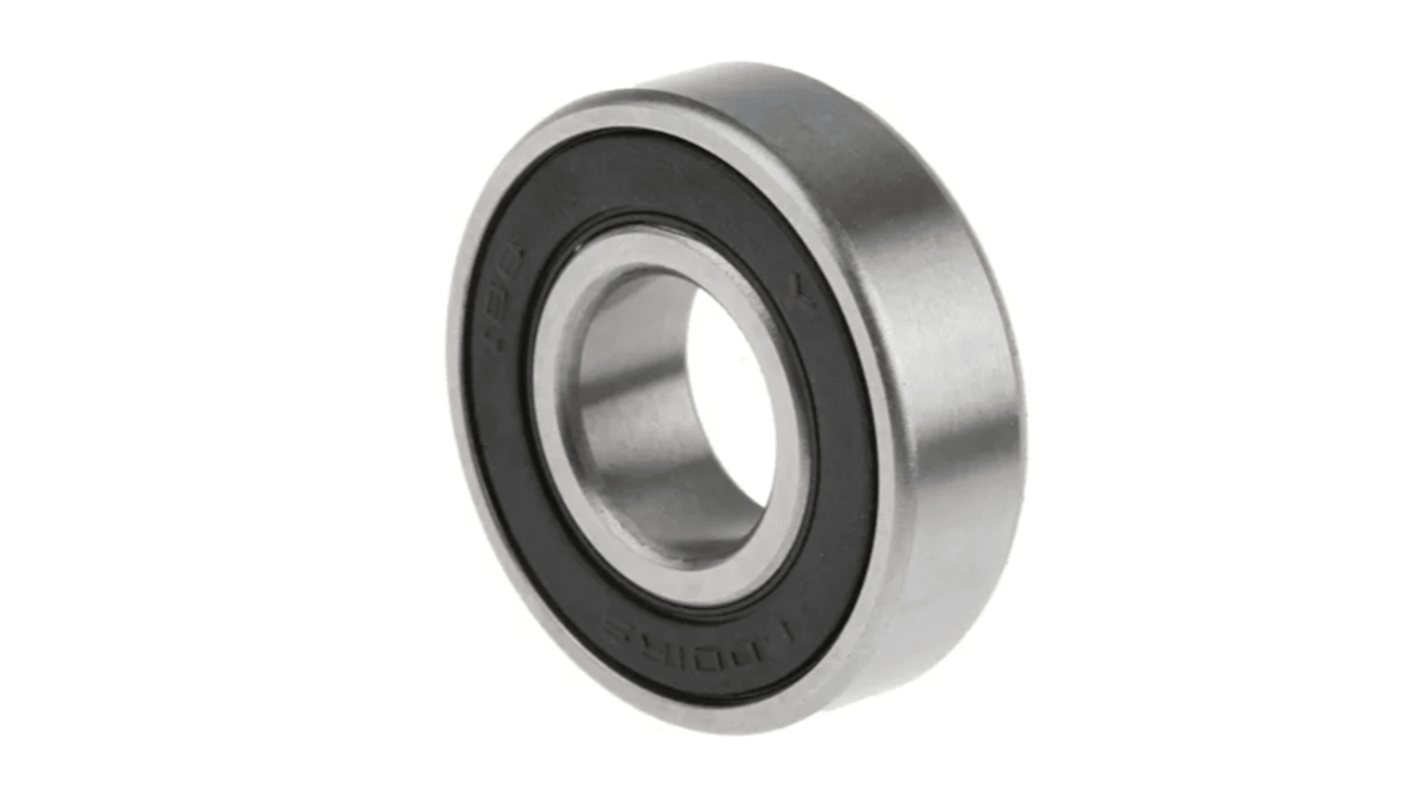

RS PRO Sealed Deep Groove Ball Bearing With C3 Clearance
The RS PRO 626-2RS/C3 6X19X6mm single row, deep groove ball bearing, offers versatility and overall high performance. The sealed ball bearing is fitted with synthetic rubber seals to prevent dirt and other items entering the bearing. It is primarily intended for use where the inner ring rotates.;Other Information:;Why choose a sealed ball bearing?;sealed ball bearing offer reliability as they reduce the risk of dust and dirt entering the ball bearing mechanism. They also help to preserve the lubricant within the bearing and keep it running smoother, for longer.;Why choose a single row deep groove ball bearing?;This type of ball bearing is often the most popular because of its versatility. They are ideal for high speeds and can handle a good radial load capacity, all will very little maintenance required.;“Deep Groove” refers to the race (the groove where the balls rest). There is, therefore, larger space between the inner and outer rings, than the diameter of the ball. This leaves space for the rubber seals.
Features and Benefits
• Shielded;• Good radial load capacity;• Ideal for high speeds;• Long operating life
Applications
• Food and Beverage Industry;• Pharmaceutical;• Medical Industry;• Engines and Pumps;• Medical Industry;• Printing
Certifications
• EN certified
Small Pack Size: 188-3277
Large Pack Size: 261-2636
