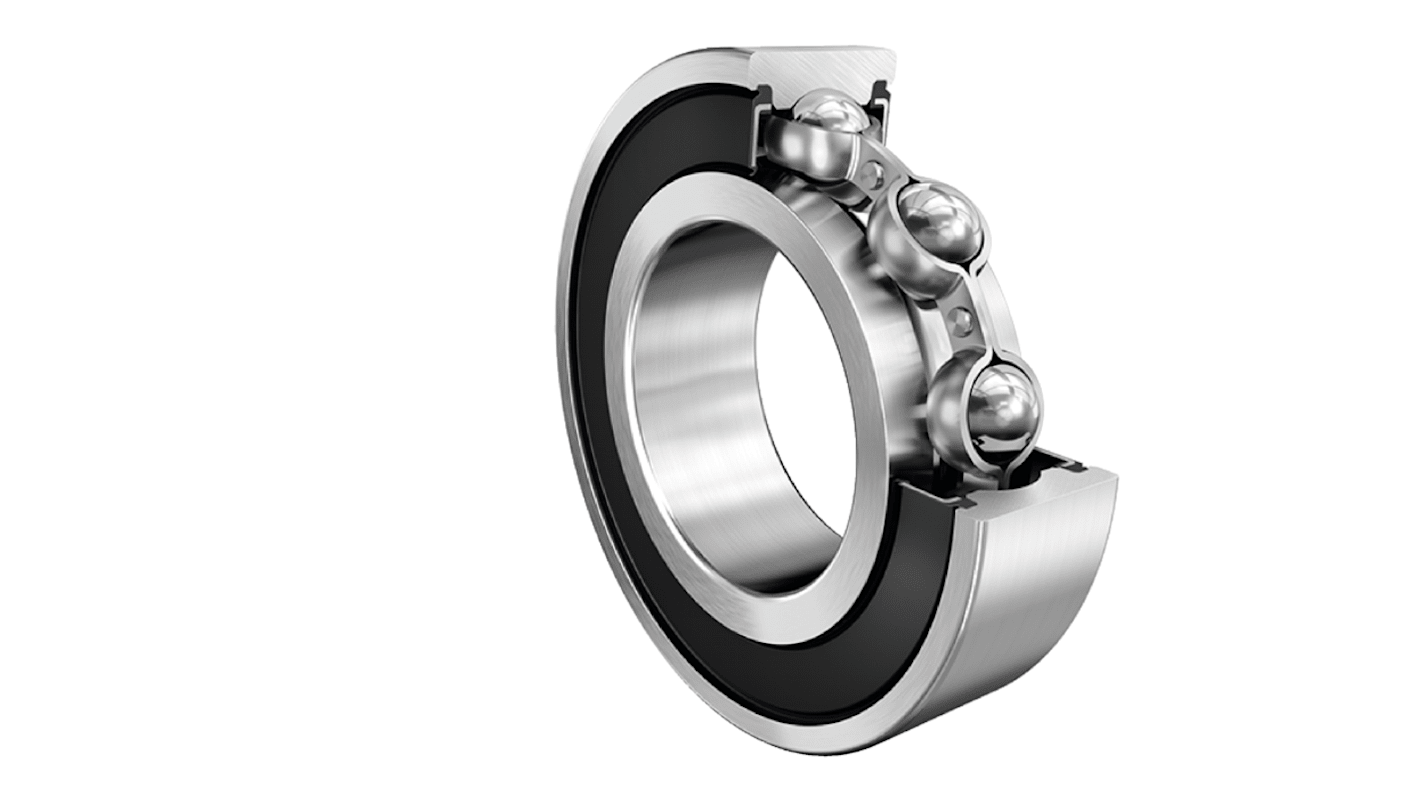

FAG 62305-A-2RSR 1 Row Ball Bearing - 25 mm ID, 62 mm OD
- RS Stock No.:
- 260-0721
- Mfr. Part No.:
- 62305-A-2RSR
- Brand:
- FAG
Subtotal (1 unit)*
£29.67
(exc. VAT)
£35.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 33 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £29.67 |
*price indicative
- RS Stock No.:
- 260-0721
- Mfr. Part No.:
- 62305-A-2RSR
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 25 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 62 mm | |
| Race Width | 24mm | |
| Cage Material | Steel | |
| Ball Material | Steel | |
| End Type | Closed | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 12.13kN | |
| Dynamic Load Rating | 23.62kN | |
| Series | 623-A-2RSR | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 7300rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 25 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 62 mm | ||
Race Width 24mm | ||
Cage Material Steel | ||
Ball Material Steel | ||
End Type Closed | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 12.13kN | ||
Dynamic Load Rating 23.62kN | ||
Series 623-A-2RSR | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 7300rpm | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TR
The FAG deep groove ball bearing has 25 mm bore diameter and 24 mm width with 12.2 calculation factor.
Operating temperature -20 to 100 °C
