SKF 51228 Thrust Ball Bearing- Open Type 140mm I.D, 200mm O.D
- RS Stock No.:
- 207-6308
- Mfr. Part No.:
- 51228
- Brand:
- SKF
Subtotal (1 unit)*
£665.77
(exc. VAT)
£798.92
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £665.77 |
*price indicative
- RS Stock No.:
- 207-6308
- Mfr. Part No.:
- 51228
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 140mm | |
Outside Diameter | 200mm | |
Race Width | 46mm | |
Ball Bearing Type | Thrust Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 630kN | |
Dynamic Load Rating | 208kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Partial Bearing Code | 51228 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 140mm | ||
Outside Diameter 200mm | ||
Race Width 46mm | ||
Ball Bearing Type Thrust Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 630kN | ||
Dynamic Load Rating 208kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Partial Bearing Code 51228 | ||
- COO (Country of Origin):
- CZ

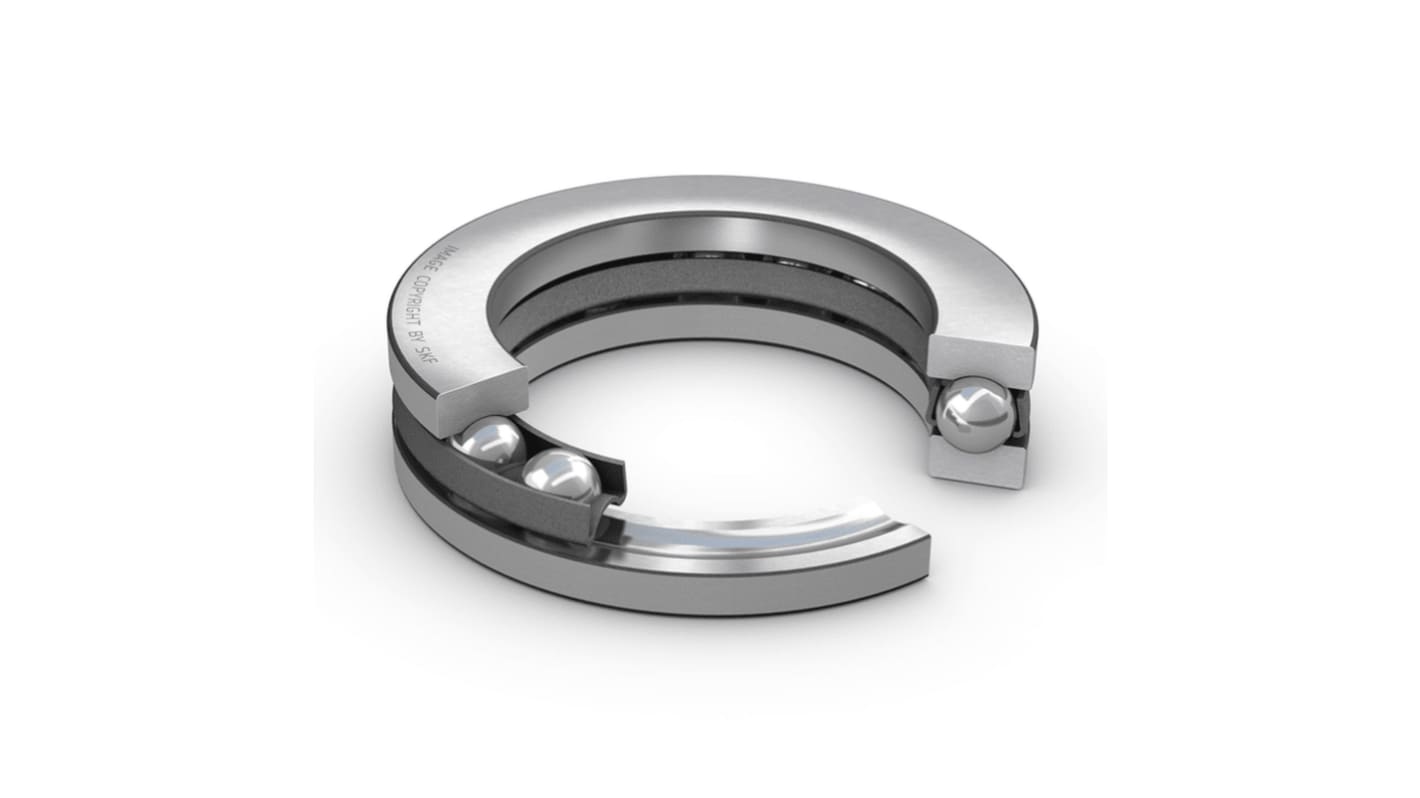

SKF Thrust Ball Bearing, 140 mm ID, 200 mm OD - 51228
This thrust ball bearing from SKF is able to provide a high load-carrying capacity for axial thrust in one direction. It's suitable for use where there's no radial load to accommodate and will prevent the shaft from drifting in the axial direction. It effectively transfers thrust loads applied onto the shaft. The bearing is made of steel and meets both British and EU electrostatic discharge standards, meaning it won't cause damage to equipment through electrostatic discharge. Thrust bearings of this kind, which work in a single direction, are commonly used in demanding automotive, marine and aerospace applications.
• Open end type
• Thrust design to sustain high axial loads
• Inside diameter of 140 mm
• Outside diameter of 200 mm
• Race width of 46 mm
• Thrust design to sustain high axial loads
• Inside diameter of 140 mm
• Outside diameter of 200 mm
• Race width of 46 mm
Application Information
• Agricultural equipment
• Gearboxes and clutches
• Chemical industries
• Gearboxes and clutches
• Chemical industries
What are SKF thrust bearings made of?
SKF thrust bearings are manufactured using specialist bearing steel. This ensures the units are reliable, durable and operate with minimal friction, so they offer a long service life with minimal need for maintenance.
