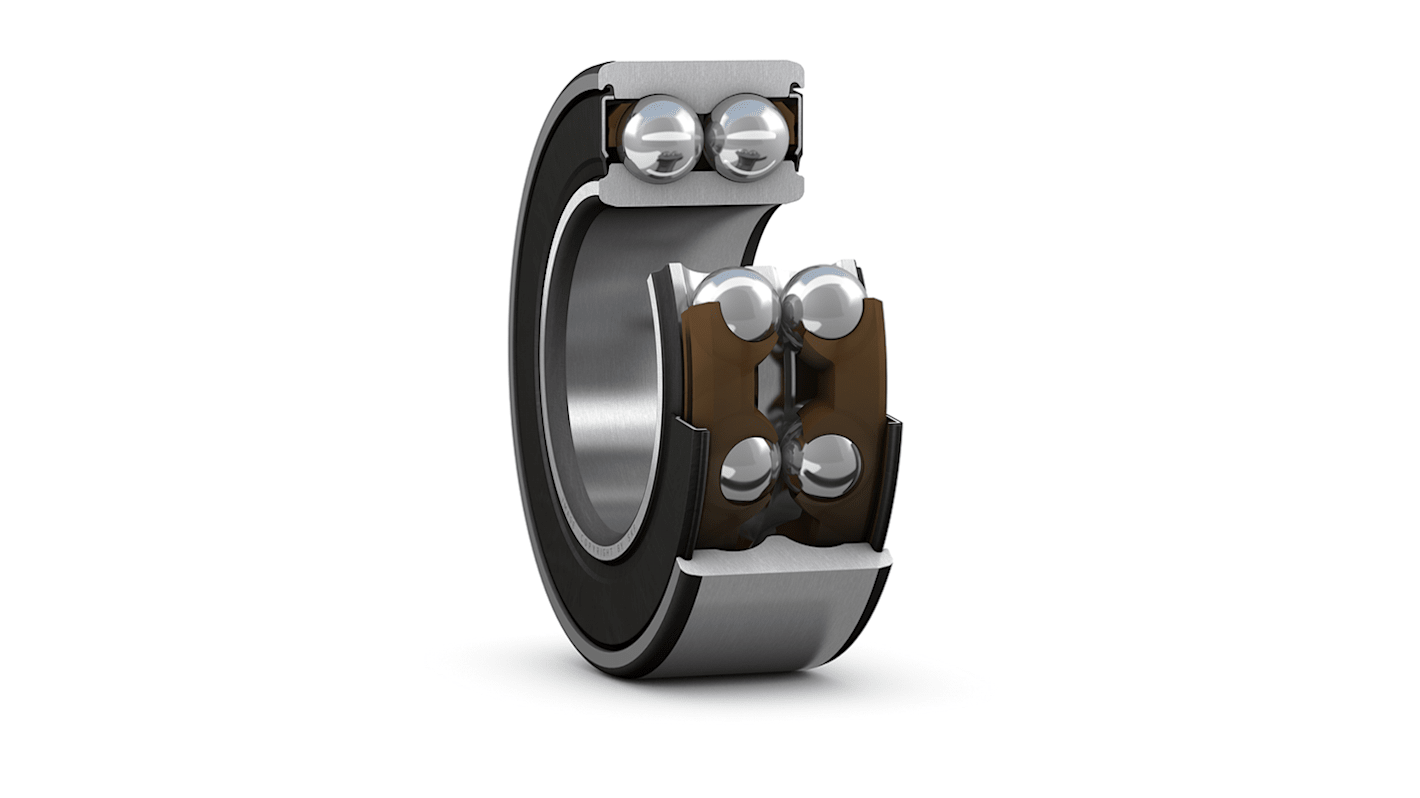

SKF 3309 A-2RS1/MT33 2 Row Ball Bearing - 45 mm ID, 100 mm OD 39.7 mm Race Width
- RS Stock No.:
- 195-9598
- Mfr. Part No.:
- 3309 A-2RS1/MT33
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£242.34
(exc. VAT)
£290.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £242.34 |
| 5 - 9 | £232.67 |
| 10 - 24 | £227.76 |
| 25 + | £222.94 |
*price indicative
- RS Stock No.:
- 195-9598
- Mfr. Part No.:
- 3309 A-2RS1/MT33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 45 mm | |
| Outside Diameter | 100 mm | |
| Race Width | 39.7mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 2 | |
| Static Load Rating | 53kN | |
| Contact Angle | 30° | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 75kN | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 4800rpm | |
| Race Type | Plain | |
| Bearing Type | Double Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 45 mm | ||
Outside Diameter 100 mm | ||
Race Width 39.7mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Sealed | ||
Number of Rows 2 | ||
Static Load Rating 53kN | ||
Contact Angle 30° | ||
Internal Clearance CN | ||
Dynamic Load Rating 75kN | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 4800rpm | ||
Race Type Plain | ||
Bearing Type Double Row Angular Contact Ball | ||
RoHS Status: Exempt
SKF Plain Angular-Contact Ball Bearing, 45mm ID, 100mm OD - 3309 A-2RS1/MT33
Looking for a robust ball bearing to support static loads of up to 53kN and dynamic loads of up to 75kN? This angular contact ball bearing from SKF can support a high axial load combined with a radial load. The sealed ends keep out contamination to ensure the unit runs efficiently and to extend its working life, with no relubrication required. A parallel bore means it can be mounted directly onto the shaft without an adaptor sleeve.
• Steel construction provides strength and resists corrosion
• Double row of bearings offers extra weight-bearing capacity
• Non-stop contact of the balls to both rings means it has a much higher speed than radial bearings
Applications
• Wind energy
• Steel mills
• Materials handling
How does an angular-contact ball bearing differ from other types of bearing?
An angular contact ball bearing consists of inner and outer raceways that are displaced relative to each other. Forces are transmitted from one raceway to another along a specific contact angle.
Can an angular-contact bearing handle axial loads in both directions?
No, angular contact bearings can accept axial loads in one direction only, so they need to be mounted against a second, conventional bearing for applications operating in both directions.
