SKF 29426 E Cylindrical 130 mm I.D Spherical Roller Bearing, 270 mm O.D
- RS Stock No.:
- 461-236
- Mfr. Part No.:
- 29426 E
- Brand:
- SKF
Subtotal (1 unit)*
£2,273.25
(exc. VAT)
£2,727.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,273.25 |
*price indicative
- RS Stock No.:
- 461-236
- Mfr. Part No.:
- 29426 E
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 130 mm | |
| Race Width | 85mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Series | 29426 E | |
| Static Load Rating | 4050kN | |
| Dynamic Load Rating | 1560kN | |
| Outside Diameter | 270 mm | |
| Limiting Speed | 2400rpm | |
| Standards/Approvals | No | |
| Internal Clearance | Normal | |
| Race Type | Cylindrical | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 130 mm | ||
Race Width 85mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Series 29426 E | ||
Static Load Rating 4050kN | ||
Dynamic Load Rating 1560kN | ||
Outside Diameter 270 mm | ||
Limiting Speed 2400rpm | ||
Standards/Approvals No | ||
Internal Clearance Normal | ||
Race Type Cylindrical | ||
- COO (Country of Origin):
- SE
Omkar

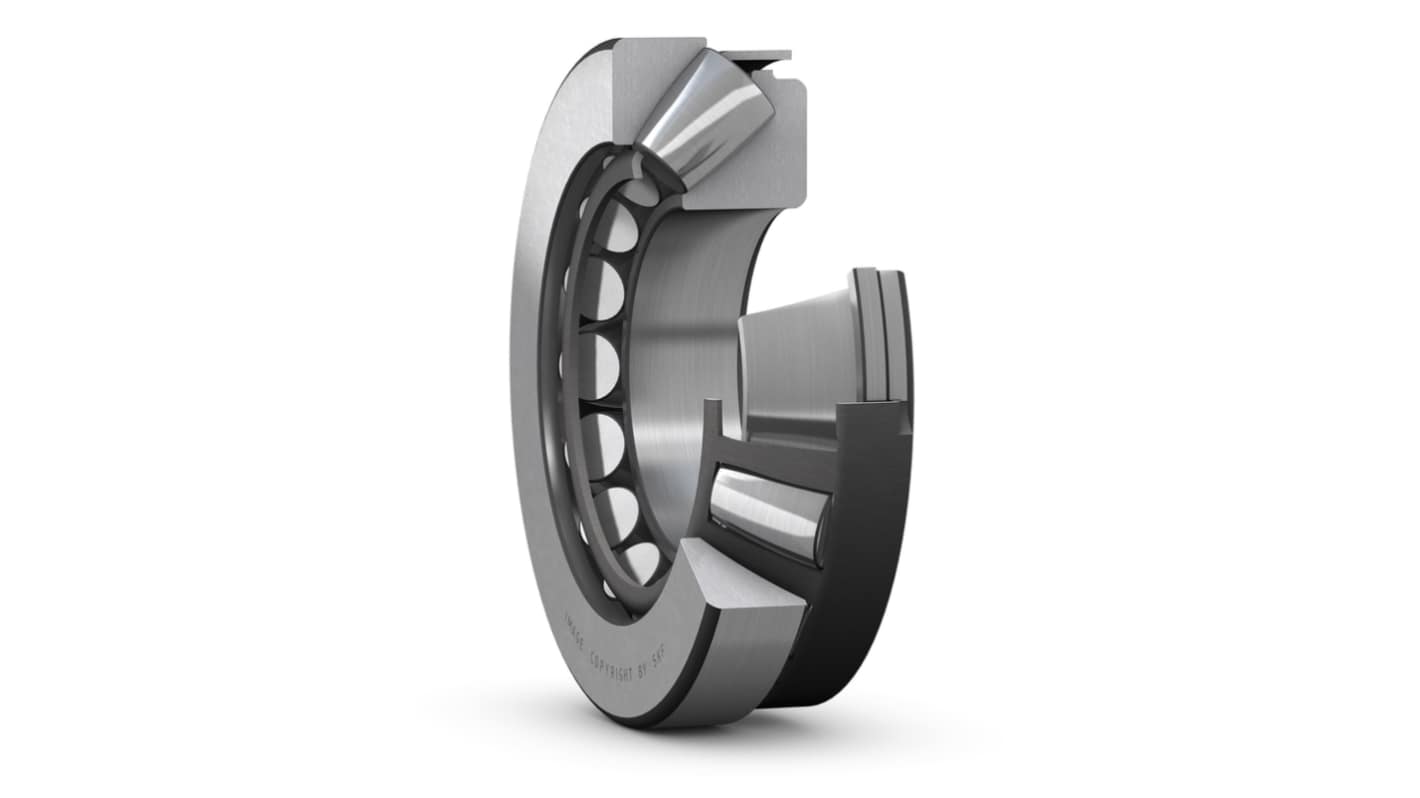

The SKF Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.
High load carrying capacity
Can accommodate combined loads
Allow misalignment or create very stiff bearing arrangements
Long service life and low friction
Separable design
