EDAC, 516 3.81mm Pitch Rectangular Connector, Male, Straight, 20 Way
- RS Stock No.:
- 910-8342
- Mfr. Part No.:
- 516-020-000-101
- Brand:
- EDAC
Bulk discount available
Subtotal (1 unit)*
£14.30
(exc. VAT)
£17.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 48 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £14.30 |
| 15 - 49 | £13.30 |
| 50 - 99 | £12.87 |
| 100 + | £11.44 |
*price indicative
- RS Stock No.:
- 910-8342
- Mfr. Part No.:
- 516-020-000-101
- Brand:
- EDAC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EDAC | |
| Gender | Male | |
| Number of Contacts | 20 | |
| Body Orientation | Straight | |
| Housing Material | DAP | |
| Pitch | 3.81mm | |
| Contact Material | Phosphor Bronze Alloy | |
| Contact Plating | Gold over Nickel | |
| Current Rating | 8.5A | |
| Voltage Rating | 2 kV ac | |
| Series | 516 | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand EDAC | ||
Gender Male | ||
Number of Contacts 20 | ||
Body Orientation Straight | ||
Housing Material DAP | ||
Pitch 3.81mm | ||
Contact Material Phosphor Bronze Alloy | ||
Contact Plating Gold over Nickel | ||
Current Rating 8.5A | ||
Voltage Rating 2 kV ac | ||
Series 516 | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- CN

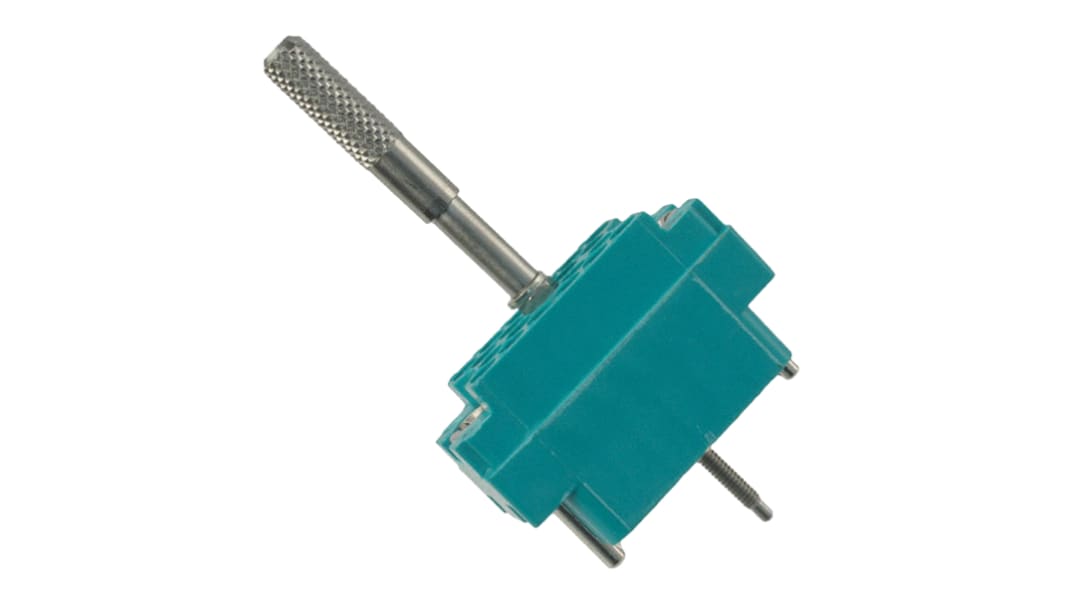

Rack and Panel Plug Connector Housing, with Guide Pin
From EDAC, the cable mounting rack and panel connector housing incorporates an actuating screw to facilitate connection with a corresponding receptacle.
Crimp, solder and wire wrap contacts are available for this connector housing, and are sold separately.
Crimp, solder and wire wrap contacts are available for this connector housing, and are sold separately.
EDAC 516 Range
This extensive range of 8.5A multipole connectors is suitable for use in a wide range of applications where safety and/or ultra-reliability is required. These include audio broadcast, railway signalling, oil and gas industry control systems together with general industrial and automotive control & test systems. These connectors are suitable wherever a multi-pin cable to panel or cable to cable connection is required. The plugs or receptacles of this high density system can form either the fixed or free half of the connector, providing designers with great flexibility.
Guaranteed secure connection
Hermaphroditic metal to metal contact design
Polarized mouldings and metal locators
Crimp, solder or wire wrap contacts
Contacts fit plug and socket
Hermaphroditic metal to metal contact design
Polarized mouldings and metal locators
Crimp, solder or wire wrap contacts
Contacts fit plug and socket
