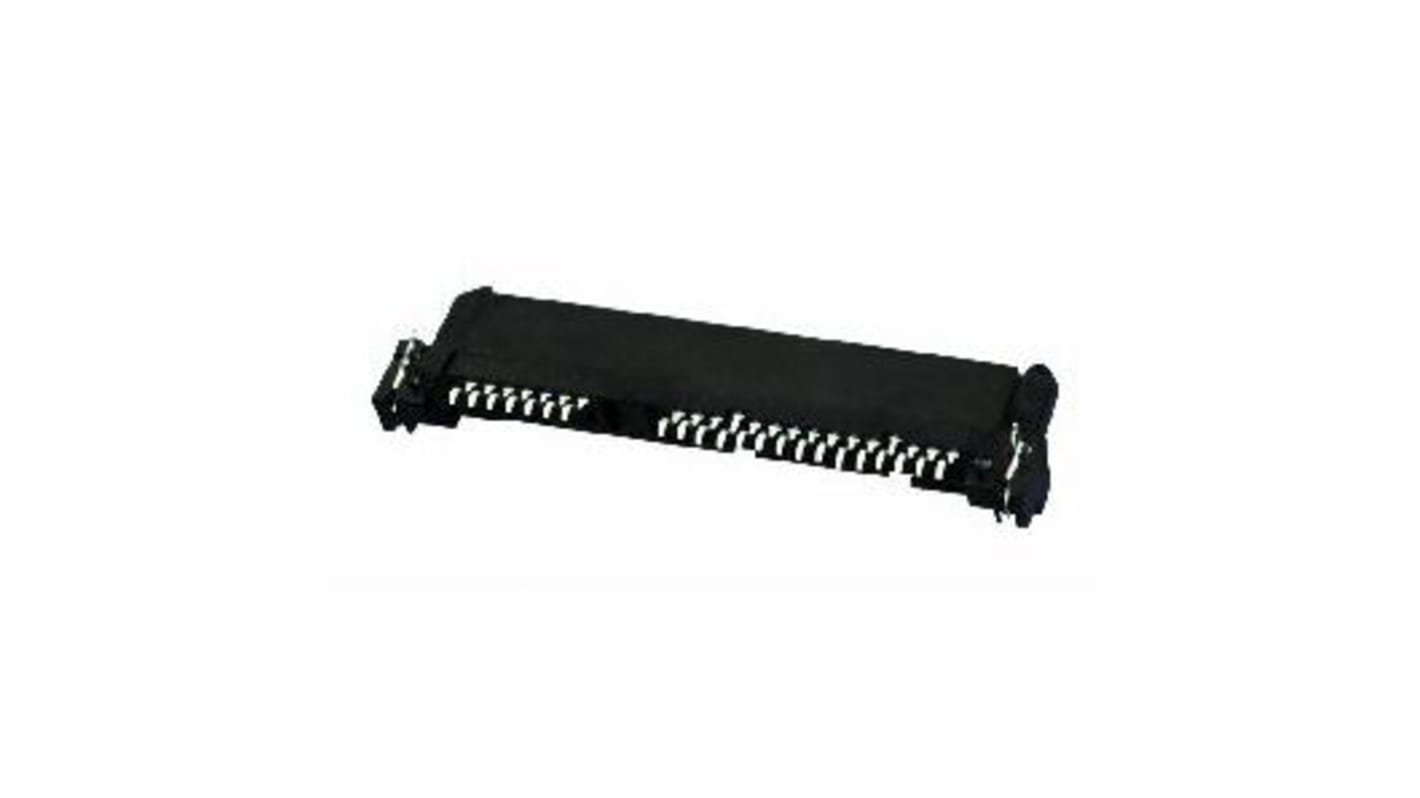

Amphenol Communications Solutions Backplane Connector, Female, Right Angle, 2 Row, 22 Way, 10029364
- RS Stock No.:
- 182-2893
- Mfr. Part No.:
- 10029364-001LF
- Brand:
- Amphenol Communications Solutions
Discontinued
- RS Stock No.:
- 182-2893
- Mfr. Part No.:
- 10029364-001LF
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Gender | Female | |
| Number of Contacts | 22 | |
| Number of Rows | 2 | |
| Body Orientation | Right Angle | |
| Housing Material | Thermoplastic | |
| Contact Material | Copper Alloy | |
| Mounting Type | Surface Mount | |
| Contact Plating | Gold | |
| Current Rating | 1.5A | |
| Voltage Rating | 500 V ac | |
| Termination Method | Solder | |
| Maximum Operating Temperature | +260°C | |
| Minimum Operating Temperature | +30°C | |
| Series Number | 10029364 | |
| Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Gender Female | ||
Number of Contacts 22 | ||
Number of Rows 2 | ||
Body Orientation Right Angle | ||
Housing Material Thermoplastic | ||
Contact Material Copper Alloy | ||
Mounting Type Surface Mount | ||
Contact Plating Gold | ||
Current Rating 1.5A | ||
Voltage Rating 500 V ac | ||
Termination Method Solder | ||
Maximum Operating Temperature +260°C | ||
Minimum Operating Temperature +30°C | ||
Series Number 10029364 | ||
- COO (Country of Origin):
- MY
FCI SATA Connectors
FCI offers a wide range of SATA plug and receptacle connector configurations with vertical or right angle options.
Most backplane connectors also feature stamped retention clips that provide additional mechanical strength for robust PCB attachment and different termination type namely, through-hole solder, press-fit or surface-mount.
Most backplane connectors also feature stamped retention clips that provide additional mechanical strength for robust PCB attachment and different termination type namely, through-hole solder, press-fit or surface-mount.
For implementation of the high-speed serial-ATA storage interface
22 position SATA connectors meet requirements of Serial ATA specification
Provides 7 contacts for signal port and 15 contacts for power
Designed to support hot-plugging and blind-mating of HDDs
Connector retainers provide additional mechanical strength after soldering
22 position SATA connectors meet requirements of Serial ATA specification
Provides 7 contacts for signal port and 15 contacts for power
Designed to support hot-plugging and blind-mating of HDDs
Connector retainers provide additional mechanical strength after soldering
SATA, Storage and Server Connector, Receptacle, Right Angle, Surface Mount, 22 Positions
PCB Mounted
