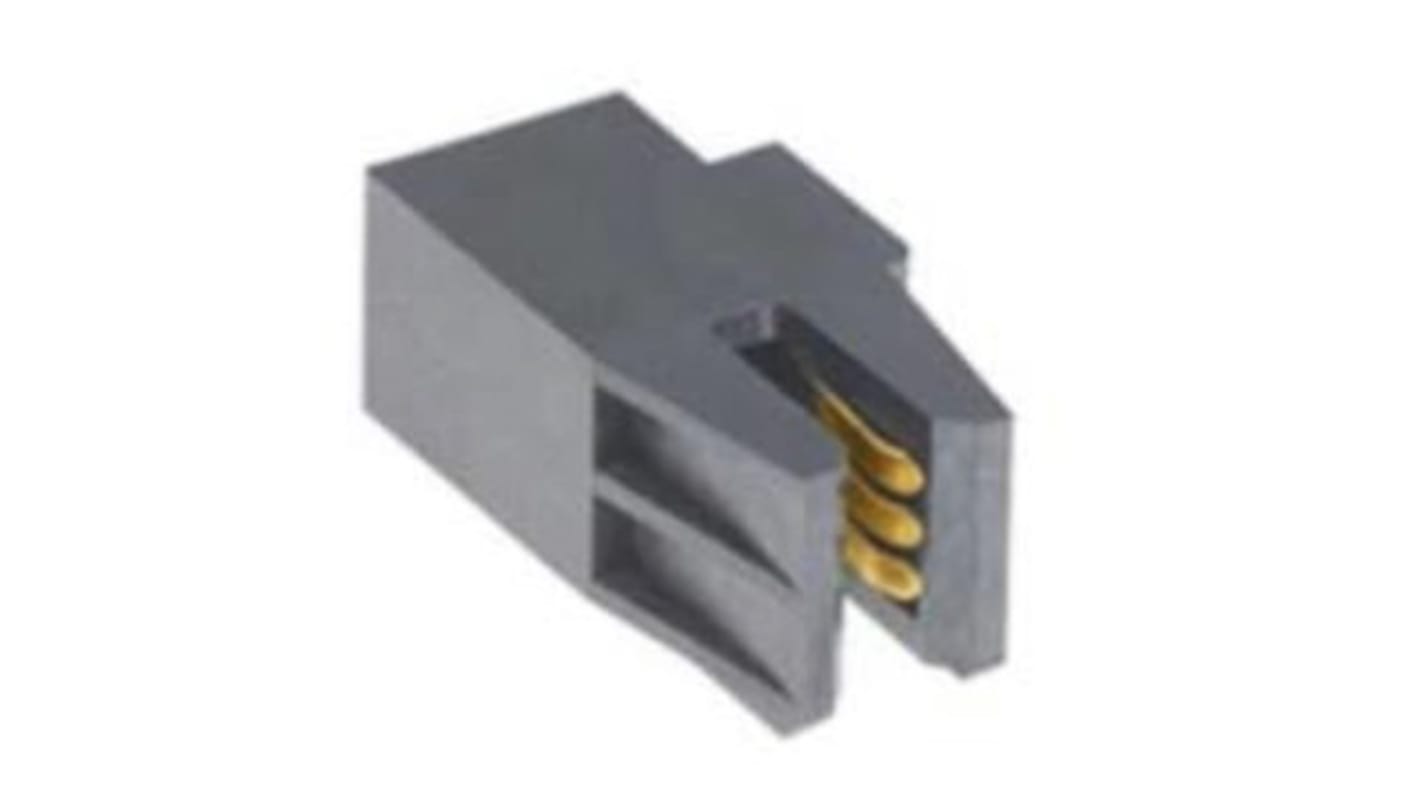

Molex 2.5mm Pitch PCB ACTA Backplane Power Connector, Female, Right Angle, 1 Row, 1 Way 173708

  • RS Stock No. 146-3536
  • Mfr. Part No. 173708-0002
  • Brand Molex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): SG
Product Details

This Product Specification covers the 7.50 mm (.295 inch) centerline Super-Sabre connector system with silver plating and 10 to 12 AWG wire, 4mm2 Cu-R4TPE 19 x 0.53mm wire and 5mm2 Cu-H1PVC 65 x 0.32mm wire using crimp technology.

PowerPlane Low-Profile Bus Bar Receptacle Assembly, Right Angle, Press Fit, 3.28mm Tail Length, Screw Mount, 3.18mm Bus Bar Thickness

Specifications
Attribute Value
Backplane Connector Type PCB
Gender Female
Number of Contacts 1
Number of Rows 1
Body Orientation Right Angle
Housing Material Liquid Crystal Polymer
Pitch 2.5mm
Mounting Type Through Hole
Contact Material Copper Alloy
Contact Plating Gold over Nickel (Mating), Tin over Nickel (Termination)
Current Rating 60A
Voltage Rating 600 V ac
Termination Method Press Fit
Maximum Operating Temperature +105°C
Series Number 173708
Minimum Operating Temperature -40°C
Available to back order for despatch 03/03/2020
Price Each
£ 3.83
(exc. VAT)
£ 4.60
(inc. VAT)
Units
Per unit
1 - 9
£3.83
10 - 19
£3.67
20 - 49
£3.57
50 - 99
£3.44
100 +
£3.35
