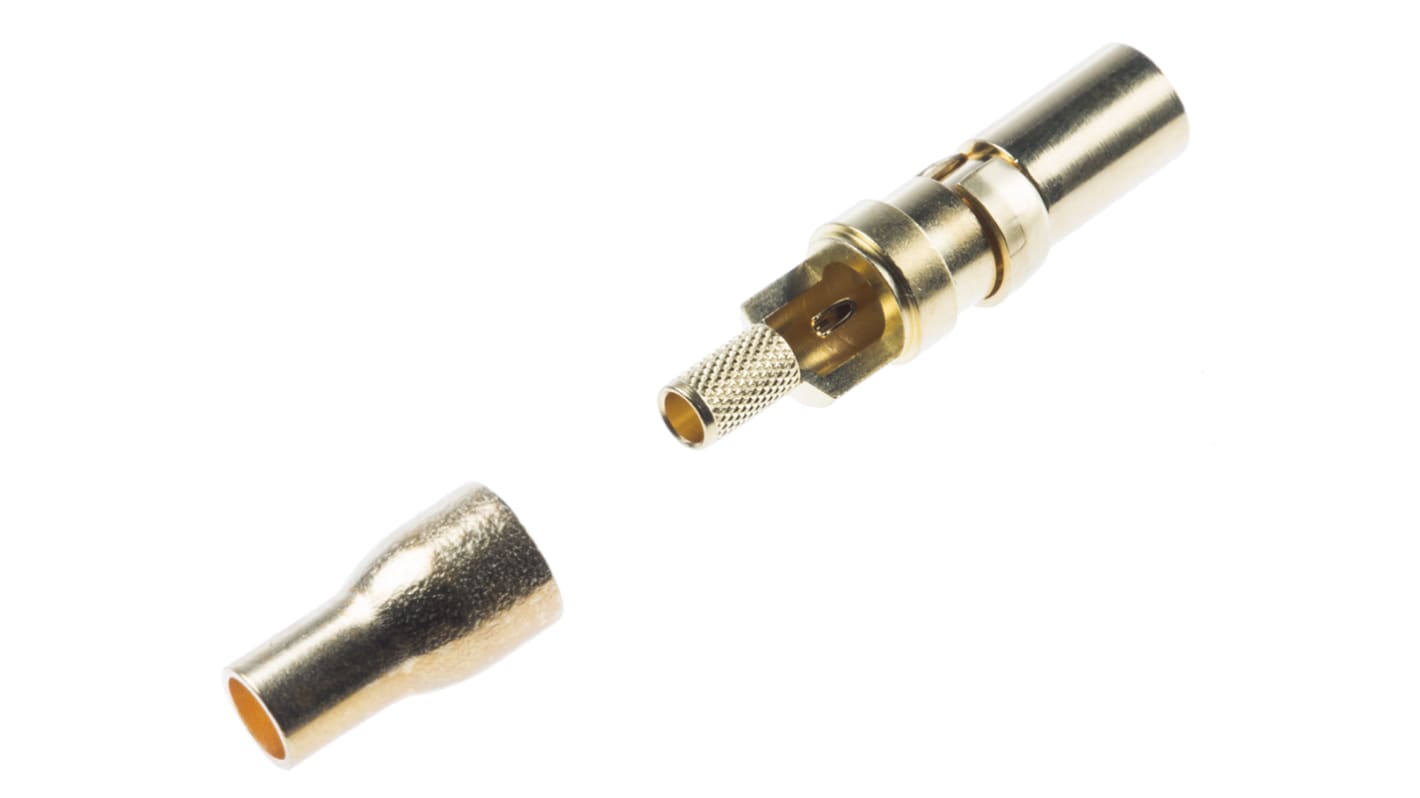

RS PRO , Straight RG179 B/U, RG187 A/U , Female Gold , Copper Alloy , Backplane Connector Contact
- RS Stock No.:
- 477-7209
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 477-7209
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | DIN 41612 | |
| Orientation | Straight | |
| For Use With | DIN41612 Type M Male Connector | |
| Cable Type | RG179 B/U, RG187 A/U | |
| Gender | Female | |
| Contact Plating | Gold | |
| Maximum Contact Resistance | 2.7mΩ | |
| Contact Material | Copper Alloy | |
| Current Rating | 2A | |
| Mounting Type | Cable Mount | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Series DIN 41612 | ||
Orientation Straight | ||
For Use With DIN41612 Type M Male Connector | ||
Cable Type RG179 B/U, RG187 A/U | ||
Gender Female | ||
Contact Plating Gold | ||
Maximum Contact Resistance 2.7mΩ | ||
Contact Material Copper Alloy | ||
Current Rating 2A | ||
Mounting Type Cable Mount | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- DE
DIN 41612 M Contacts
Power plug and socket contacts in both solder bucket and 90° terminations rated up to 40A
Contact resistance <3mΩ
Gold plated class 1
50Ω coaxial contacts accept RG178B/U & RG174A/U (RG316) cables by crimp and solder terminations
75Ω coaxial contacts accept RG179 cables by crimp or solder terminations
Coaxial contact resist. <10mΩ centre, <3Ω outer
High voltage inserts contact resistance, outer conductor = <3 mΩ
Contact resistance <3mΩ
Gold plated class 1
50Ω coaxial contacts accept RG178B/U & RG174A/U (RG316) cables by crimp and solder terminations
75Ω coaxial contacts accept RG179 cables by crimp or solder terminations
Coaxial contact resist. <10mΩ centre, <3Ω outer
High voltage inserts contact resistance, outer conductor = <3 mΩ
DIN41612 - Mixed Contact Range
DIN 41612 / 41617 and module connectors for interconnection in all 19in Eurocard racking systems. Connectors are compatible with RS 19in sub-rack systems. Typical applications include telecommunications, data communications, measurement and control. The different connection variants include:
Connection between plug-in cards at right angle to backplane wiring
Connection between two parallel PCB's arranged one above the other
For front or rear I/O
Connection between two parallel PCB's arranged one above the other
For front or rear I/O
