ebm-papst 4400 Series Axial Fan, 24V dc, 168 m³/h, 3.2 W, 0.12 A Max, IP20 119 mm 38mm 38 mm
- RS Stock No.:
- 878-1085
- Mfr. Part No.:
- 4414ML-RS0
- Brand:
- ebm-papst
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£48.76
(exc. VAT)
£58.51
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 40 unit(s) shipping from 12 October 2026
- Plus 1 unit(s) shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £48.76 |
| 5 - 9 | £44.86 |
| 10 - 24 | £42.91 |
| 25 - 49 | £39.99 |
| 50 + | £35.11 |
*price indicative
- RS Stock No.:
- 878-1085
- Mfr. Part No.:
- 4414ML-RS0
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Product Type | Axial Fan | |
| Supply Voltage | 24V dc | |
| Power Consumption | 3.2W | |
| Maximum Current | 0.12A | |
| Air Flow | 168m³/h | |
| Noise Level | 40dB | |
| Fan Speed | 3000rpm | |
| Terminal Type | Wire | |
| Bearing Type | Ball | |
| Fan Frame Size | 92 mm | |
| Fan Frame Type | Square | |
| Height | 119mm | |
| Depth | 38mm | |
| Standards/Approvals | RoHS | |
| Series | 4400 | |
| Width | 38mm | |
| IP Rating | IP20 | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Product Type Axial Fan | ||
Supply Voltage 24V dc | ||
Power Consumption 3.2W | ||
Maximum Current 0.12A | ||
Air Flow 168m³/h | ||
Noise Level 40dB | ||
Fan Speed 3000rpm | ||
Terminal Type Wire | ||
Bearing Type Ball | ||
Fan Frame Size 92 mm | ||
Fan Frame Type Square | ||
Height 119mm | ||
Depth 38mm | ||
Standards/Approvals RoHS | ||
Series 4400 | ||
Width 38mm | ||
IP Rating IP20 | ||
- COO (Country of Origin):
- HU

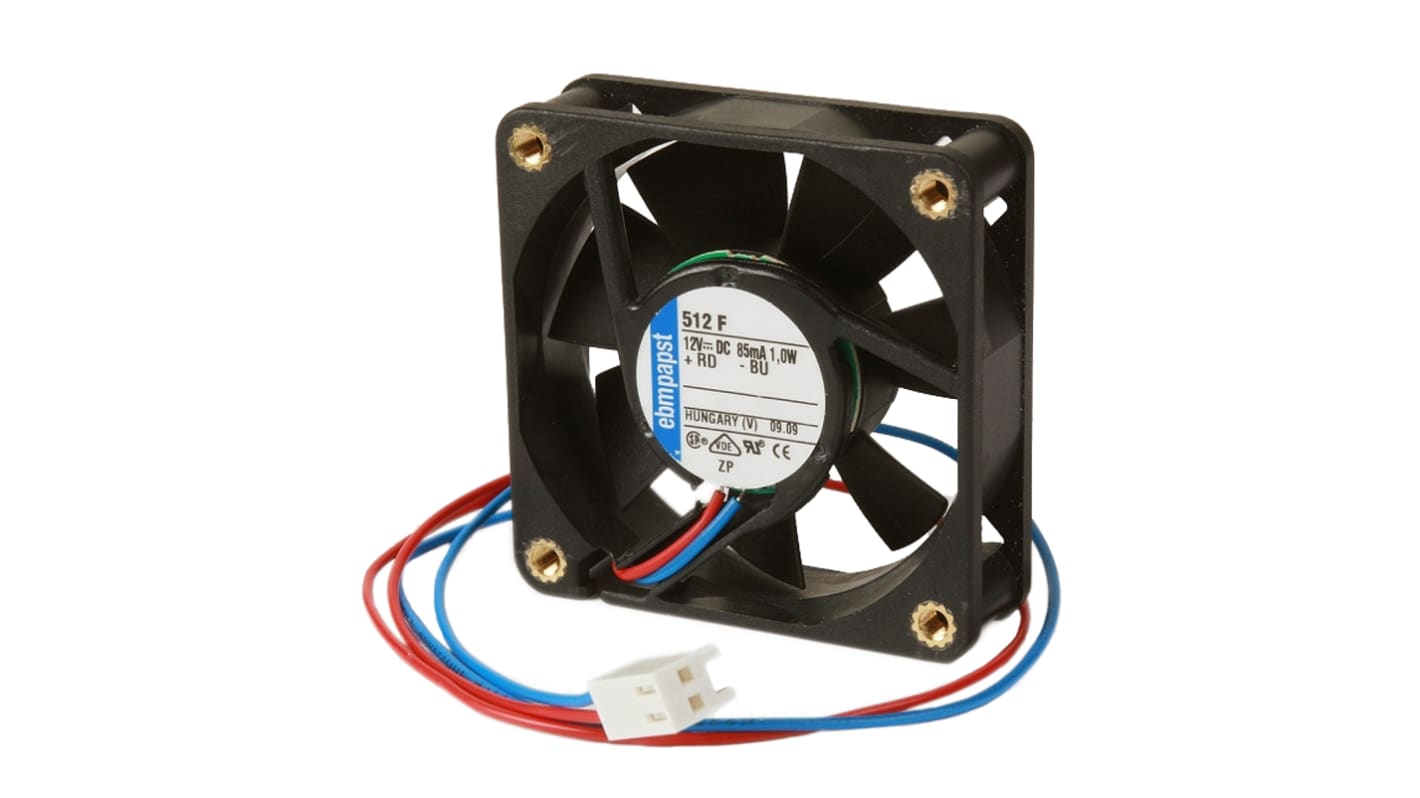

ebm-papst DC Ball Bearing Axial Fan With Inserts
From ebm-papst, a series of compact and durable DC Axial Fans, perfect for cooling purposes. Featuring a plug and plug build, this axial fan is fully assembled with M3 threaded inserts and a hard wired connector, which ensures it can be screwed immediately onto a motherboard and plugged straight in. All models are highly reliable and excellent quality.
Features and Benefits
• Corners have M3 threaded inserts
• IP20 Protection
• Connection lead is 313 mm (+/- 10 mm)
• Blowing over struts
• High-quality plastic housing
What is an Axial Fan?
An axial fan is a type of fan commonly used within everyday applications, such as air conditioners and computers. It causes both air and gas (depending on the application) to flow directly through it in an axial direction. Allowing the air/gas flow to be axial at both entry and exit. The most common versions tend to have fewer blades than a conventional ducted fan which have similar operations.
Do you have any finger guards available?
We do have finger guards, please have a look at RS Stock Number – 826-1363 for a suitable finger guard.
What type of connector is fitted to this fan?
What are some benefits of ball bearing axial fans?
There are many benefits of ball bearing fans as opposed to sleeve bearings. The general selection would be due to their long life. But also: -
• Vastly increased performance of the motor
• Better sealing shield
• Higher operating temperature
