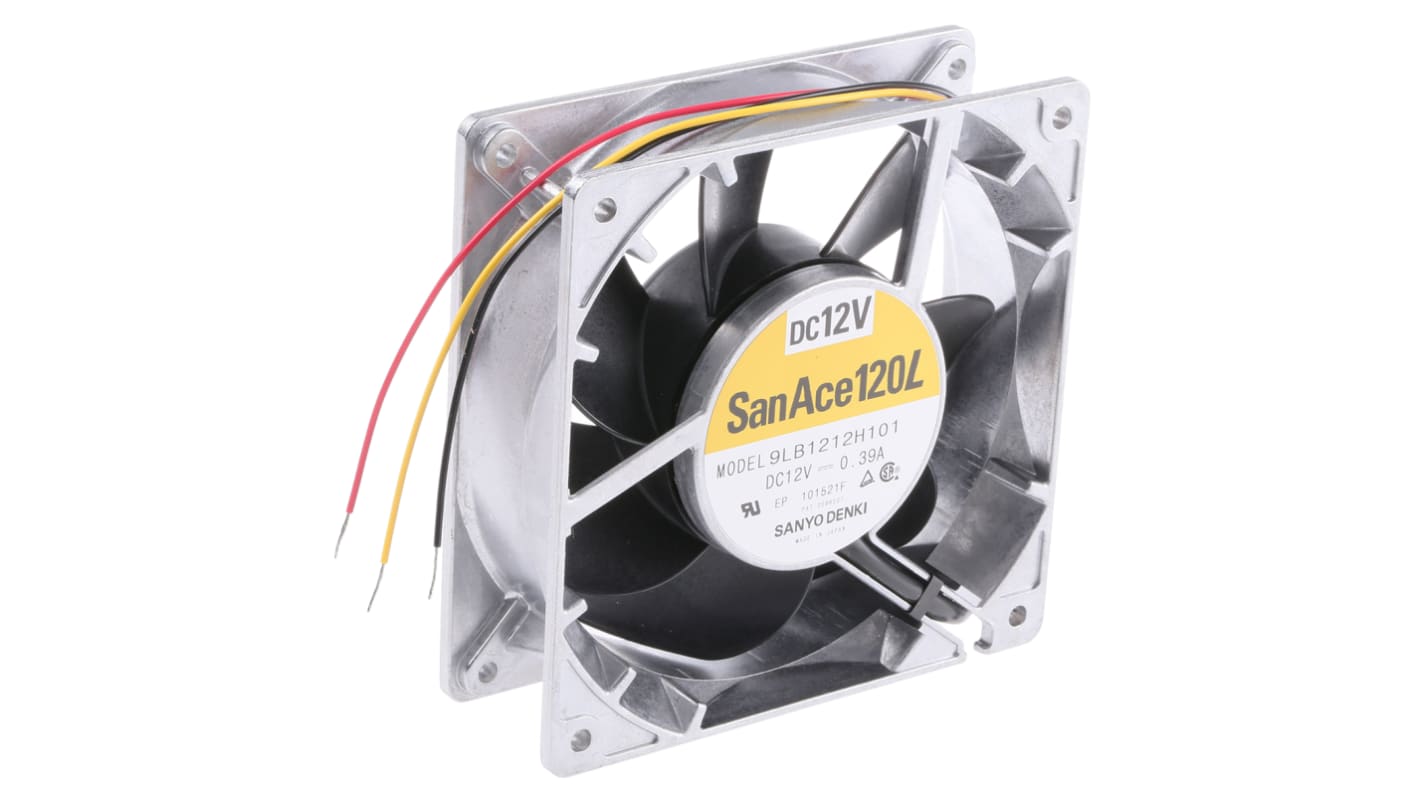

Sanyo Denki San Ace 9LB Series Axial Fan, 12 V dc, DC Operation, 174m³/h, 4.68W, 390mA Max, 120 x 120 x 38mm
- RS Stock No.:
- 793-2428
- Mfr. Part No.:
- 9LB1212H101
- Brand:
- Sanyo Denki
Discontinued
- RS Stock No.:
- 793-2428
- Mfr. Part No.:
- 9LB1212H101
- Brand:
- Sanyo Denki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sanyo Denki | |
| Supply Voltage | 12 V dc | |
| Height | 120mm | |
| AC or DC Operation | DC | |
| Width | 120mm | |
| Power Consumption | 4.68W | |
| Depth | 38mm | |
| Maximum Current | 390mA | |
| Termination Type | Lead Wire | |
| Dimensions | 120 x 120 x 38mm | |
| Air Flow | 174m³/h | |
| Noise Level | 39dB | |
| Fan Speed | 2600rpm | |
| Sensor Type | Tachometer | |
| Bearing Type | Ball | |
| Select all | ||
|---|---|---|
Brand Sanyo Denki | ||
Supply Voltage 12 V dc | ||
Height 120mm | ||
AC or DC Operation DC | ||
Width 120mm | ||
Power Consumption 4.68W | ||
Depth 38mm | ||
Maximum Current 390mA | ||
Termination Type Lead Wire | ||
Dimensions 120 x 120 x 38mm | ||
Air Flow 174m³/h | ||
Noise Level 39dB | ||
Fan Speed 2600rpm | ||
Sensor Type Tachometer | ||
Bearing Type Ball | ||
- COO (Country of Origin):
- JP
San Ace Long Life High Air Flow DC Fans - L Series
Sanyo Denki San Ace long life, low power DC fans are high air flow and are designed to meet the requirements for applications that must operate without maintenance for extended periods.
Long life
High air flow
High static pressure
Low power consumption
Low noise
PWM speed control function
High air flow
High static pressure
Low power consumption
Low noise
PWM speed control function
