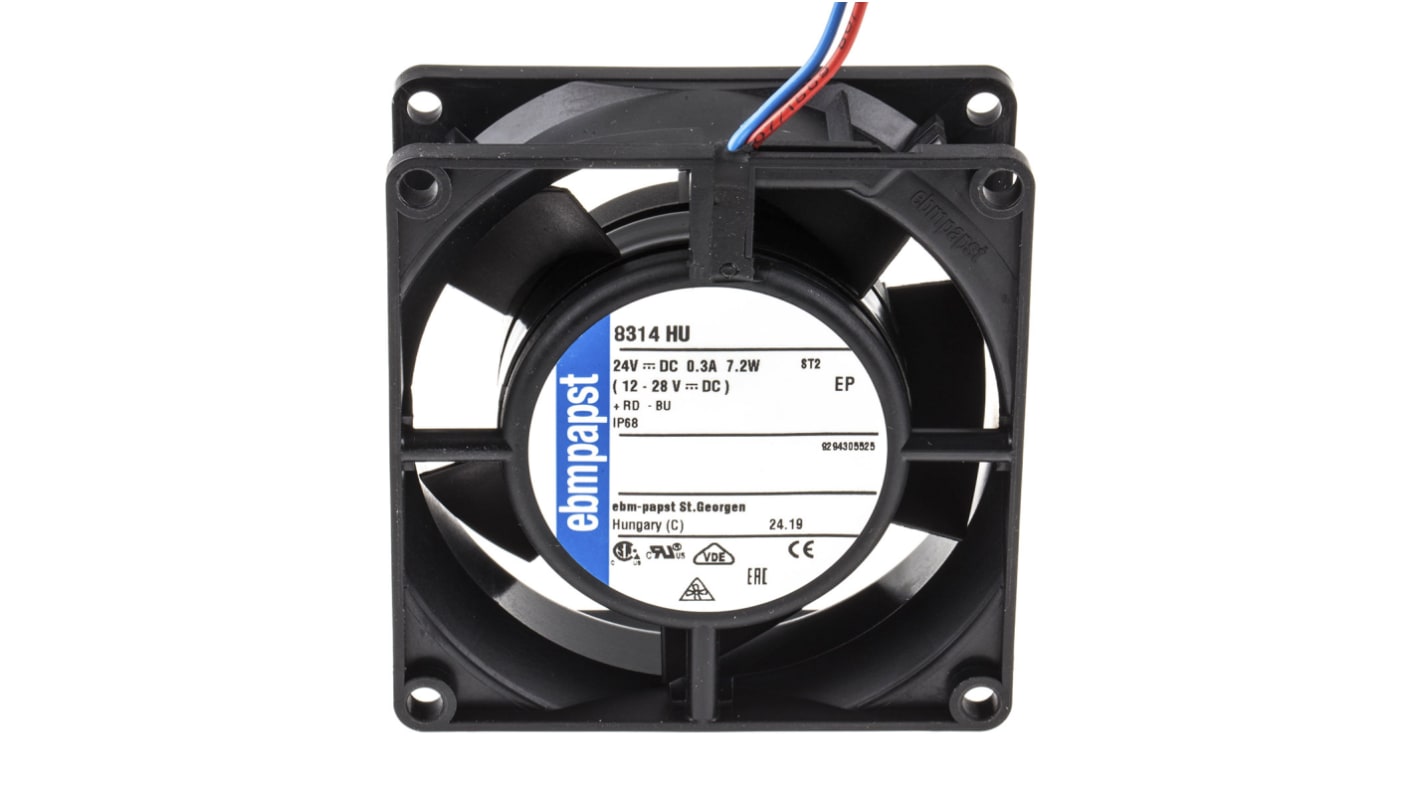

ebm-papst 8300 Series Axial Fan, 24 V dc, DC Operation, 80m³/h, 6W, IP68, 80 x 80 x 32mm
- RS Stock No.:
- 776-1294
- Distrelec Article No.:
- 304-01-806
- Mfr. Part No.:
- 8314HU
- Brand:
- ebm-papst
Bulk discount available
Subtotal (1 unit)*
£50.05
(exc. VAT)
£60.06
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 10 left, ready to ship
- Plus 30 left, ready to ship from another location
- Plus 99,999,989 left, shipping from 06 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £50.05 |
| 5 - 9 | £46.04 |
| 10 - 24 | £44.04 |
| 25 - 49 | £41.05 |
| 50 + | £36.04 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£34.98
(exc. VAT)
£41.98
(inc. VAT)
- RS Stock No.:
- 776-1294
- Distrelec Article No.:
- 304-01-806
- Mfr. Part No.:
- 8314HU
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Supply Voltage | 24 V dc | |
| Height | 80mm | |
| AC or DC Operation | DC | |
| Power Consumption | 6W | |
| Width | 80mm | |
| Depth | 32mm | |
| Air Flow | 80m³/h | |
| Dimensions | 80 x 80 x 32mm | |
| Noise Level | 48dB | |
| Fan Speed | 5000rpm | |
| Bearing Type | Ball | |
| IP Rating | IP68 | |
Select all | ||
|---|---|---|
Brand ebm-papst | ||
Supply Voltage 24 V dc | ||
Height 80mm | ||
AC or DC Operation DC | ||
Power Consumption 6W | ||
Width 80mm | ||
Depth 32mm | ||
Air Flow 80m³/h | ||
Dimensions 80 x 80 x 32mm | ||
Noise Level 48dB | ||
Fan Speed 5000rpm | ||
Bearing Type Ball | ||
IP Rating IP68 | ||
- COO (Country of Origin):
- HU
ebm-papst IP68 Protected DC Compact Fans
Ebm-papst ingress protected IP68 fans are ideal for operation in the harshest of environments. These fans are designed to perform subject to high dust, high humidity and direct water exposure both in and outdoors. They are ideal for wash-down situations and cannot be damaged by continuous immersion in water making them suitable for a broad range of applications. With a construction based on the entire motor (winding and PCB) being completely coated in plastic, the integrated operating electronics of ebm-papst IP68 fans are completely encased and the cable connection is specially sealed.
Features and Benefits
• IP68 compliant DC fans with electronic rotor switching and integrated electronic switching regulation
• Fibreglass-reinforced plastic, PBTP housing and PA vane
• Protected against polarity reversal and overload
• Electric connection with two 22 AWG rated wires
• Fibreglass-reinforced plastic, PBTP housing and PA vane
• Protected against polarity reversal and overload
• Electric connection with two 22 AWG rated wires
Note
A manufacturer part number suffixed 'U' denotes either IP54 or IP68 rating
Approvals
UL Approved
