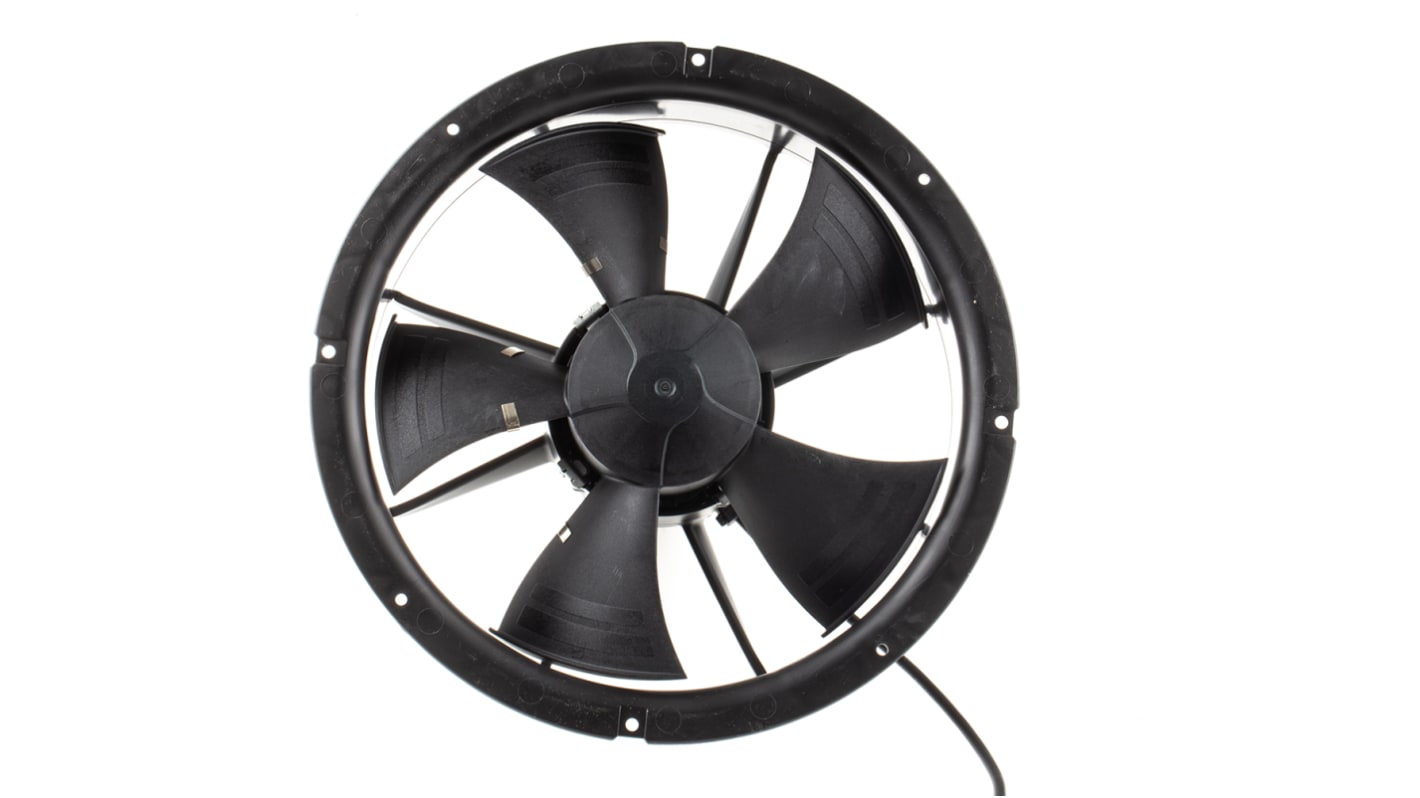

ebm-papst W1G230 Series Axial Fan, 230 V ac, AC Operation, 1000m³/h, 26W, 260mA Max, 230 x 78.5mm
- RS Stock No.:
- 701-3592
- Distrelec Article No.:
- 303-76-270
- Mfr. Part No.:
- W1G230-EB89-01
- Brand:
- ebm-papst
Subtotal (1 unit)*
£149.20
(exc. VAT)
£179.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 585 unit(s) ready to ship
- Plus 64 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £149.20 |
*price indicative
- RS Stock No.:
- 701-3592
- Distrelec Article No.:
- 303-76-270
- Mfr. Part No.:
- W1G230-EB89-01
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ebm-papst | |
Supply Voltage | 230 V ac | |
AC or DC Operation | AC | |
Power Consumption | 26W | |
Maximum Current | 260mA | |
Depth | 78.5mm | |
Air Flow | 1000m³/h | |
Dimensions | 230 x 78.5mm | |
Noise Level | 53dB | |
Fan Speed | 1500rpm | |
Bearing Type | Ball | |
Select all | ||
---|---|---|
Brand ebm-papst | ||
Supply Voltage 230 V ac | ||
AC or DC Operation AC | ||
Power Consumption 26W | ||
Maximum Current 260mA | ||
Depth 78.5mm | ||
Air Flow 1000m³/h | ||
Dimensions 230 x 78.5mm | ||
Noise Level 53dB | ||
Fan Speed 1500rpm | ||
Bearing Type Ball | ||
- COO (Country of Origin):
- HU
Energy Saving EC Axial Fans
These compact axial fans are based on the energy-saving motor (ESM) and offer high efficiency, considerable energy savings and improved service life. They are suitable for use in refrigeration plants, such as refrigerated display cases, refrigeration chests or condensing units. The fans incorporate a new plastic rotor which is aerodynamically efficient and quiet. They are robust, maintenance-free and durable. Service life is rated at more than 40,000 hours, equalling continuous operation of more than 4.5 years.
Energy saving electroncally commutated AC motors
IP54 rated
Maintenance free ball bearings
Rated for continuous operation (S1)
IP54 rated
Maintenance free ball bearings
Rated for continuous operation (S1)
Approvals
VDE
