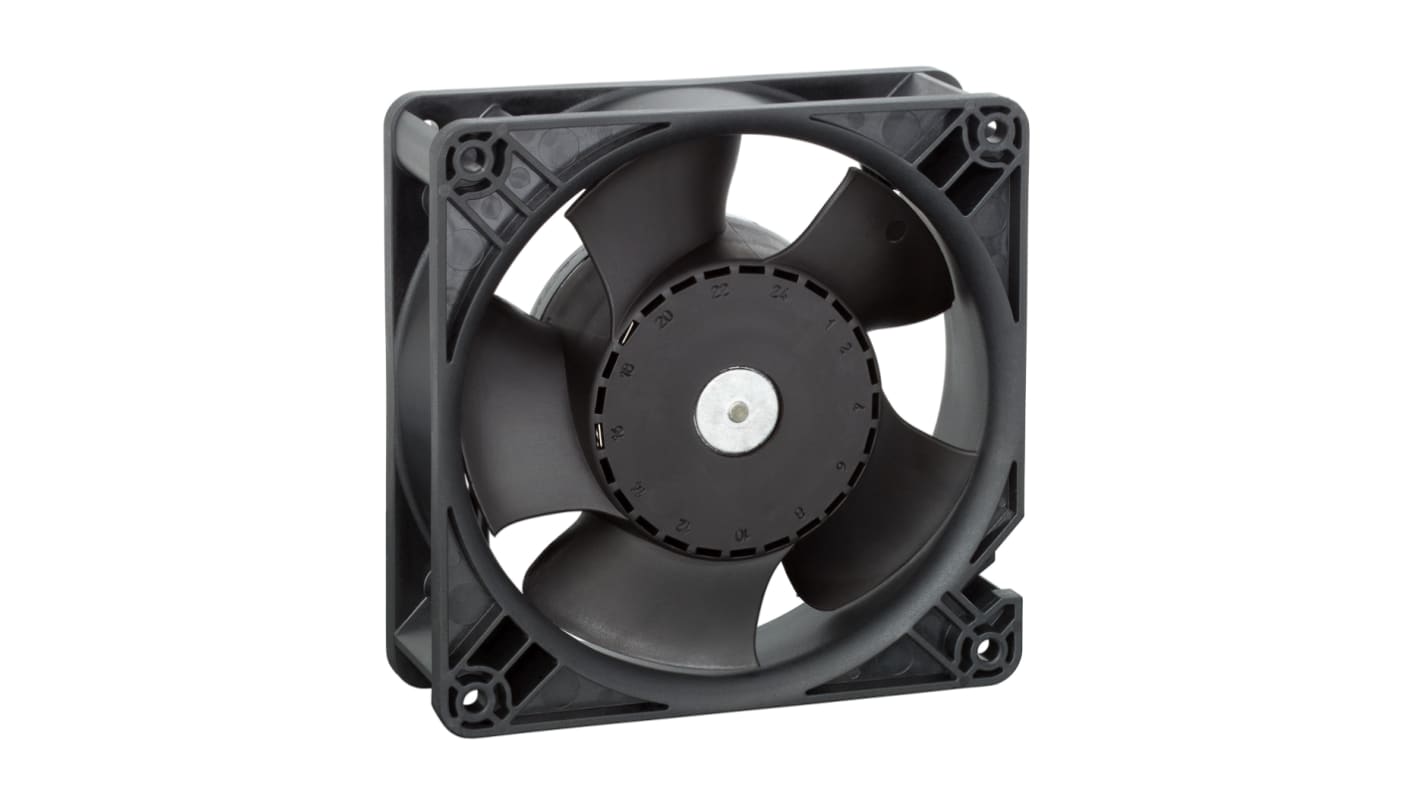

ebm-papst DV 4100 Series Axial Fan, 48V dc, 280 m³/h, 20 W, 420 mA Max 119 mm 119mm 38 mm
- RS Stock No.:
- 696-1992
- Distrelec Article No.:
- 301-48-294
- Mfr. Part No.:
- DV4118N
- Brand:
- ebm-papst
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£100.19
(exc. VAT)
£120.23
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 30 unit(s) shipping from 17 August 2026
- Plus 1 unit(s) shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £100.19 |
| 5 - 9 | £92.18 |
| 10 - 24 | £88.17 |
| 25 - 49 | £82.16 |
| 50 + | £72.14 |
*price indicative
- RS Stock No.:
- 696-1992
- Distrelec Article No.:
- 301-48-294
- Mfr. Part No.:
- DV4118N
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Product Type | Axial Fan | |
| Supply Voltage | 48V dc | |
| Power Consumption | 20W | |
| Maximum Current | 420mA | |
| Air Flow | 280m³/h | |
| Noise Level | 61dB | |
| Fan Speed | 6000rpm | |
| Direction of Curve | Forward | |
| External Depth | 38mm | |
| Terminal Type | Wire | |
| Bearing Type | Ball | |
| Fan Frame Type | Square | |
| Fan Frame Size | 119 mm | |
| Depth | 38mm | |
| Height | 119mm | |
| Width | 119mm | |
| Standards/Approvals | VDE, UL, RoHS, CSA, CE, CCC | |
| Series | DV 4100 | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Product Type Axial Fan | ||
Supply Voltage 48V dc | ||
Power Consumption 20W | ||
Maximum Current 420mA | ||
Air Flow 280m³/h | ||
Noise Level 61dB | ||
Fan Speed 6000rpm | ||
Direction of Curve Forward | ||
External Depth 38mm | ||
Terminal Type Wire | ||
Bearing Type Ball | ||
Fan Frame Type Square | ||
Fan Frame Size 119 mm | ||
Depth 38mm | ||
Height 119mm | ||
Width 119mm | ||
Standards/Approvals VDE, UL, RoHS, CSA, CE, CCC | ||
Series DV 4100 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- HU
DC Diagonal Compact Fan
The operating point of the diagonal compact fan, compared to the axial compact fan, lies in a higher pressure range. The new diagonal compact fans offer more pressure with a significantly higher air flow. This makes them the perfect solution for cooling-intensive applications in very confined spaces.
Sickle-shaped blades (S series)
Low noise with high pressure
Lifetime 70000 hours at 40°C (40000 hours at maximum temperature)
Plastic housing has grounding lug for screw M4 x 8 (Torx)
Locked rotor and reverse polarity protected
Weight 375g
Approvals
VDE, CSA, UL
