RS PRO Axial Fan, 12 V dc, DC Operation, 40.8m³/h, 2.8W, 230mA Max, 60 x 60 x 25mm
- RS Stock No.:
- 624-6599
- Brand:
- RS PRO
441 In stock - FREE next working day delivery available
10 available from Europe for delivery within 1 working day(s).
Added
Price Each
£17.69
(exc. VAT)
£21.23
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £17.69 |
| 5 - 9 | £16.84 |
| 10 - 24 | £16.08 |
| 25 - 49 | £15.37 |
| 50 + | £14.72 |
- RS Stock No.:
- 624-6599
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

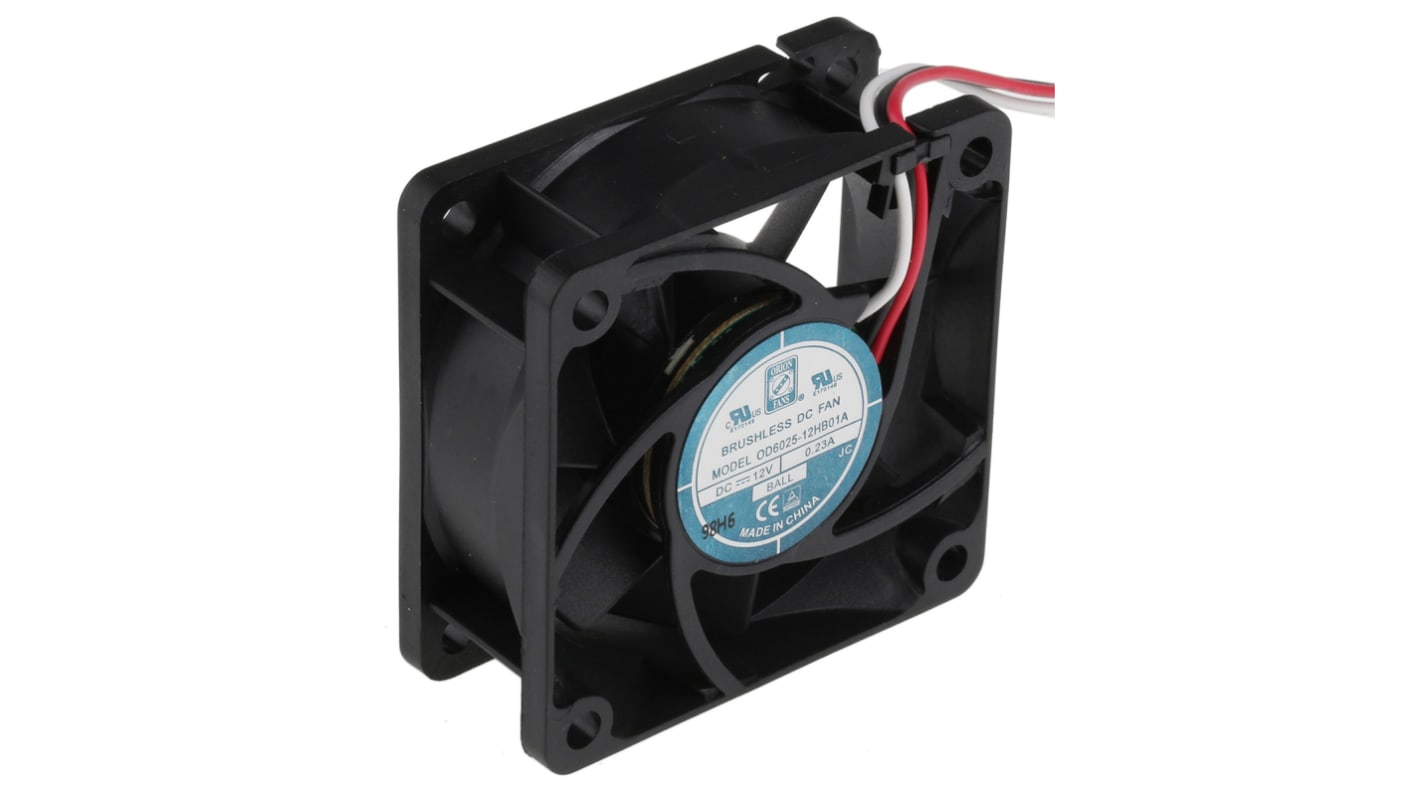

RS PRO 12 V DC, DC Axial Fan, 60 x 60 x 25 mm, 40.8 m³/h, 2.8 W
This axial fan from RS PRO keeps the equipment in your enclosures and cabinets cool to prevent them from overheating. It's commonly used to ventilate server racks to ensure that hubs, routers and patch panels stay cool.
The product's polybutylene terephthalate (PBT) thermoplastic construction won't ignite, minimising the risk of fire hazards in your workspace. As the fan is chemical and stain-resistant, it can be easily wiped clean. The fan is RoHS (Restriction of Hazardous Substances) compliant, meaning it contains only minimal amounts of any harmful materials.
The product's polybutylene terephthalate (PBT) thermoplastic construction won't ignite, minimising the risk of fire hazards in your workspace. As the fan is chemical and stain-resistant, it can be easily wiped clean. The fan is RoHS (Restriction of Hazardous Substances) compliant, meaning it contains only minimal amounts of any harmful materials.
Features and Benefits
- DC operation
- Airflow of 40.8m³/h
- Ball-bearing type
- Dimensions of 60 x 60 x 25 mm
- Backward direction of curve
- Fan speed of 4500 rpm (rotations per minute)
- Maximum current of 230 mA
- Noise level of 33 dB
- Power consumption of 2.8 W
- Open collector sensor output type
- Special features of auto restart, brushless, locked rotor protected and polarity protected
- Static pressure of 0.25 in/H2O
- Supply voltage of 12 V DC
- Lead wire termination type
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 12 V dc |
| Height | 60mm |
| AC or DC Operation | DC |
| Power Consumption | 2.8W |
| Width | 60mm |
| Maximum Current | 230mA |
| Depth | 25mm |
| Termination Type | Lead Wire |
| Air Flow | 40.8m³/h |
| Dimensions | 60 x 60 x 25mm |
| Noise Level | 33dB |
| Fan Speed | 4500rpm |
| Sensor Type | Open Collector |
| Direction of Curve | Backward |
| Bearing Type | Ball |
