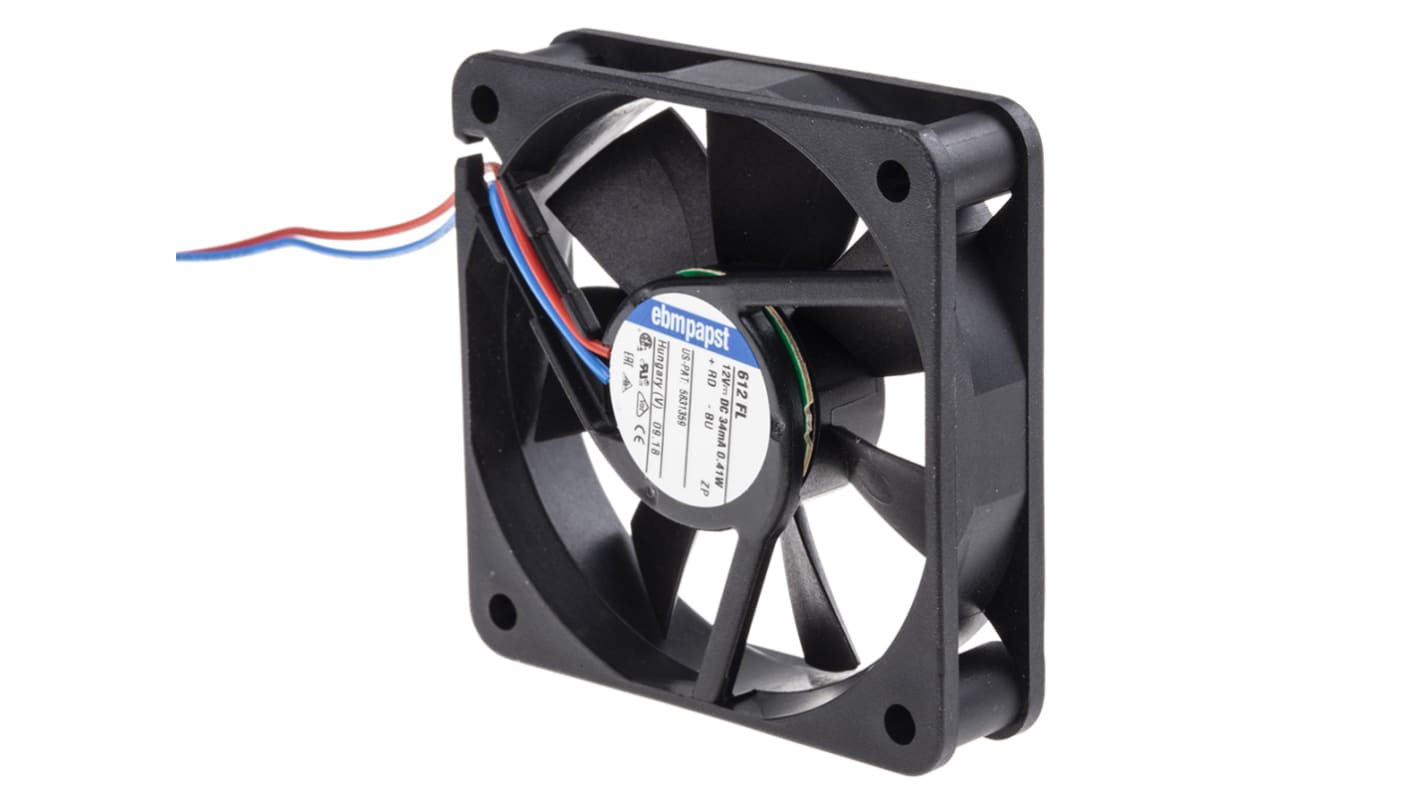

ebm-papst 600 F Series Axial Fan, 12 V dc, DC Operation, 19m³/h, 400mW, 33mA Max, 60 x 60 x 15mm
- RS Stock No.:
- 364-2174
- Distrelec Article No.:
- 301-47-831
- Mfr. Part No.:
- 612FL
- Brand:
- ebm-papst
Bulk discount available
Subtotal (1 unit)*
£19.57
(exc. VAT)
£23.48
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 199 left, ready to ship
- Plus 93 left, ready to ship from another location
- Plus 99,999,800 left, shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £19.57 |
| 5 - 9 | £18.00 |
| 10 - 24 | £17.22 |
| 25 - 49 | £16.05 |
| 50 + | £14.09 |
*price indicative
- RS Stock No.:
- 364-2174
- Distrelec Article No.:
- 301-47-831
- Mfr. Part No.:
- 612FL
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Supply Voltage | 12 V dc | |
| Height | 60mm | |
| AC or DC Operation | DC | |
| Width | 60mm | |
| Power Consumption | 400mW | |
| Maximum Current | 33mA | |
| Depth | 15mm | |
| Air Flow | 19m³/h | |
| Dimensions | 60 x 60 x 15mm | |
| Noise Level | 16dB | |
| Fan Speed | 2650rpm | |
| Bearing Type | Sleeve | |
Select all | ||
|---|---|---|
Brand ebm-papst | ||
Supply Voltage 12 V dc | ||
Height 60mm | ||
AC or DC Operation DC | ||
Width 60mm | ||
Power Consumption 400mW | ||
Maximum Current 33mA | ||
Depth 15mm | ||
Air Flow 19m³/h | ||
Dimensions 60 x 60 x 15mm | ||
Noise Level 16dB | ||
Fan Speed 2650rpm | ||
Bearing Type Sleeve | ||
- COO (Country of Origin):
- HU
ebm-papst 600 Series Sleeve Bearing DC Axial Fans
From ebm-papst, the 600 Series of DC axial fans are designed to deliver high performance while retaining a space saving size. This range of axial fans have sleeve bearings, which offer cost effective protection of the central shaft from environmental factors. This results in a simplified and economic design that is suitable for many thermal management applications.
With efficient brushless drives, and integrated communication electronics that prevent against reverse polarity, this series of fans are both reliable and easy to use.
With efficient brushless drives, and integrated communication electronics that prevent against reverse polarity, this series of fans are both reliable and easy to use.
Features and Benefits
• Low profile
• Low power consumption
• Air exhaust over struts
• Protected against reverse polarity and locking.
• Integrated electronic communication
• Fibreglass reinforced plastic construction
• Low power consumption
• Air exhaust over struts
• Protected against reverse polarity and locking.
• Integrated electronic communication
• Fibreglass reinforced plastic construction
Applications
These compact fans are ideal for installation in ACTA (Advanced Telecommunications Computing Architecture), which means they are suitable for a variety of applications.
• Cabinet Cooling
• Switch Networks
• Power Systems
• Telecom
• Medical
• Cabinet Cooling
• Switch Networks
• Power Systems
• Telecom
• Medical
FAQ
Q: What are the advantages of Sleeve Bearings fans over Ball Bearing fans?
A: While ball bearing fans can typically run for longer and in more harsh conditions than sleeve bearing, sleeve bearing have the advantage of having a simplified, often more cost effective design. Because of their simplified design, sleeve bearings are more impact resistance.
Q: Are these fans easy to use?
A: With simple screw installation, and with their necessary communication electronics integrated into the design, these DC axial fans are easy to install and operate.
Q: What are the advantages of this fan over competitors?
A: The compact and thin design of these fans makes them useful for low profile applications. Where space-saving is a concern, this model of fan is ideal.
Q: Are there accessories available for this fan?
A: There is a finger guard (826-1345) and filter (826-1231) available for this series of fans.
A: While ball bearing fans can typically run for longer and in more harsh conditions than sleeve bearing, sleeve bearing have the advantage of having a simplified, often more cost effective design. Because of their simplified design, sleeve bearings are more impact resistance.
Q: Are these fans easy to use?
A: With simple screw installation, and with their necessary communication electronics integrated into the design, these DC axial fans are easy to install and operate.
Q: What are the advantages of this fan over competitors?
A: The compact and thin design of these fans makes them useful for low profile applications. Where space-saving is a concern, this model of fan is ideal.
Q: Are there accessories available for this fan?
A: There is a finger guard (826-1345) and filter (826-1231) available for this series of fans.
Approvals
UL; CSA
