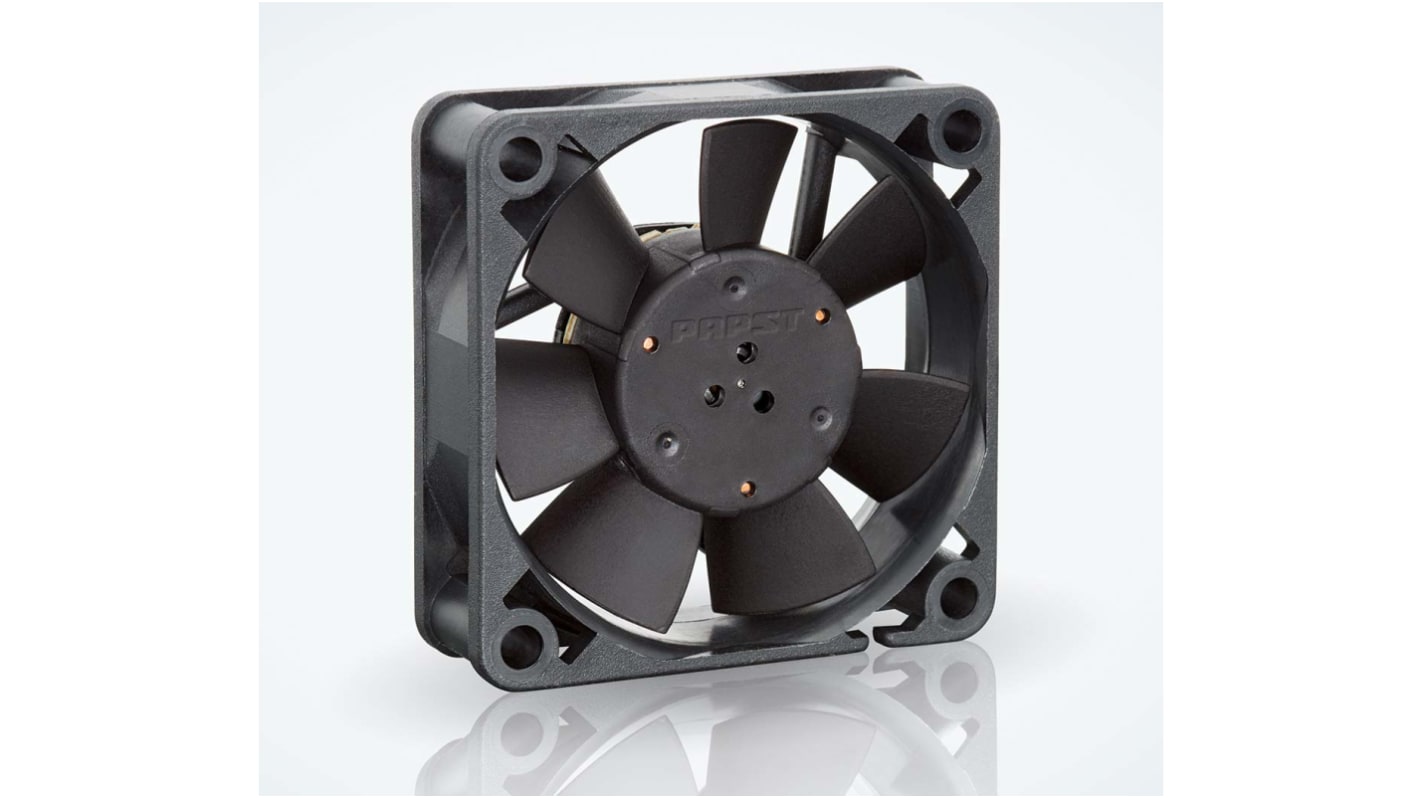

ebm-papst 500 F Series Axial Fan, 24 V dc, DC Operation, 20m³/h, 900mW, 38mA Max, IP20, 50 x 50 x 15mm
- RS Stock No.:
- 299-1504
- Mfr. Part No.:
- 514F
- Brand:
- ebm-papst
3863 In stock - FREE next working day delivery available
36 available from Europe for delivery within 1 working day(s).
Added
Price Each
£20.29
(exc. VAT)
£24.35
(inc. VAT)
Units | Per unit |
1 - 4 | £20.29 |
5 - 9 | £19.44 |
10 - 24 | £18.63 |
25 - 49 | £17.92 |
50 + | £17.23 |
- RS Stock No.:
- 299-1504
- Mfr. Part No.:
- 514F
- Brand:
- ebm-papst
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details
Miniature and Slimline Fans
ebm papst offer a wide range of DC axial fans that can be integrated into a range of concept devices. ebm papst DC fans have electronically commutated drives which protect against reverse polarity. DC fans have the added feature of a long life expectancy due to the increased efficiency of the brushless drives.
• Ideal for low profile applications
• Can be mounted for blowing or extracting
• Can be mounted for blowing or extracting
Approvals
UL; CSA
Specifications
Attribute | Value |
---|---|
Supply Voltage | 24 V dc |
AC or DC Operation | DC |
Height | 50mm |
Power Consumption | 900mW |
Width | 50mm |
Maximum Current | 38mA |
Depth | 15mm |
Air Flow | 20m³/h |
Dimensions | 50 x 50 x 15mm |
Termination Type | Lead Wire |
Noise Level | 30dB |
Fan Speed | 5000rpm |
Sensor Type | Open Collector |
Bearing Type | Sleeve |
IP Rating | IP20 |
