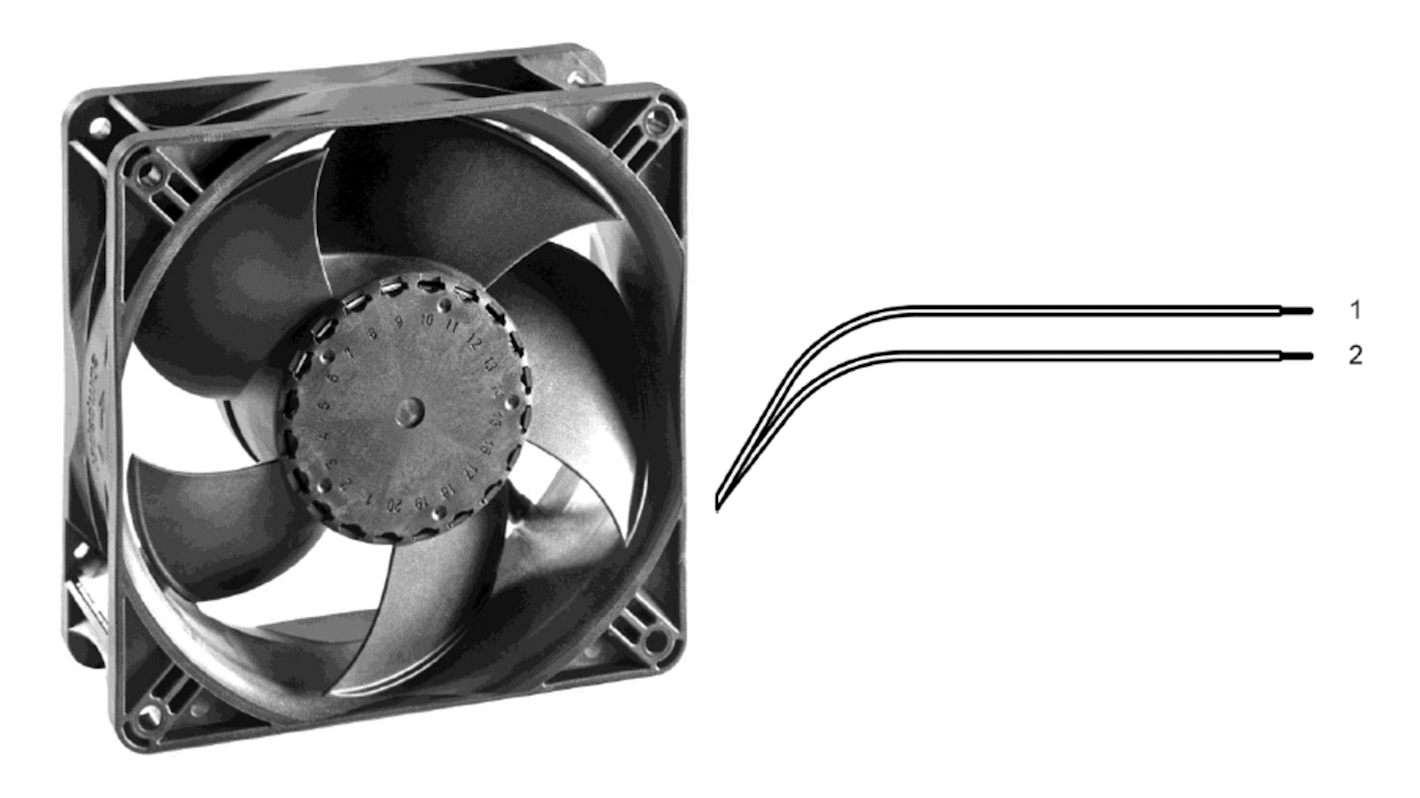

ebm-papst Axial Fan, 115V ac, 158 m³/h, 3.6 W, 53 mA Max, IP65 120 mm, 120mm, 38 mm
- RS Stock No.:
- 264-3404
- Mfr. Part No.:
- AxiACi120-00190
- Brand:
- ebm-papst
Subtotal (1 unit)*
£85.32
(exc. VAT)
£102.38
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 34 unit(s) shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £85.32 |
*price indicative
- RS Stock No.:
- 264-3404
- Mfr. Part No.:
- AxiACi120-00190
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Product Type | Axial Fan | |
| Supply Voltage | 115V ac | |
| Power Consumption | 3.6W | |
| Maximum Current | 53mA | |
| Air Flow | 158m³/h | |
| Noise Level | 40dBA | |
| Fan Speed | 3000rpm | |
| Terminal Type | Cable | |
| Bearing Type | Ball | |
| Depth | 38mm | |
| Standards/Approvals | EAC, CCC, VDE, CE, UL, CSA | |
| Height | 120mm | |
| Width | 120mm | |
| IP Rating | IP65 | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Product Type Axial Fan | ||
Supply Voltage 115V ac | ||
Power Consumption 3.6W | ||
Maximum Current 53mA | ||
Air Flow 158m³/h | ||
Noise Level 40dBA | ||
Fan Speed 3000rpm | ||
Terminal Type Cable | ||
Bearing Type Ball | ||
Depth 38mm | ||
Standards/Approvals EAC, CCC, VDE, CE, UL, CSA | ||
Height 120mm | ||
Width 120mm | ||
IP Rating IP65 | ||
- COO (Country of Origin):
- HU
The ebm-papst Axial fan provide a flexible and dependable cooling solution for applications that require a fan with clockwise rotating direction looking at the rotor which can be mounted in any axial position. It is expertly designed to create airflow with a high flow rate and medium pressure for maximum efficiency and performance.
Aerodynamic blades for low noise level
