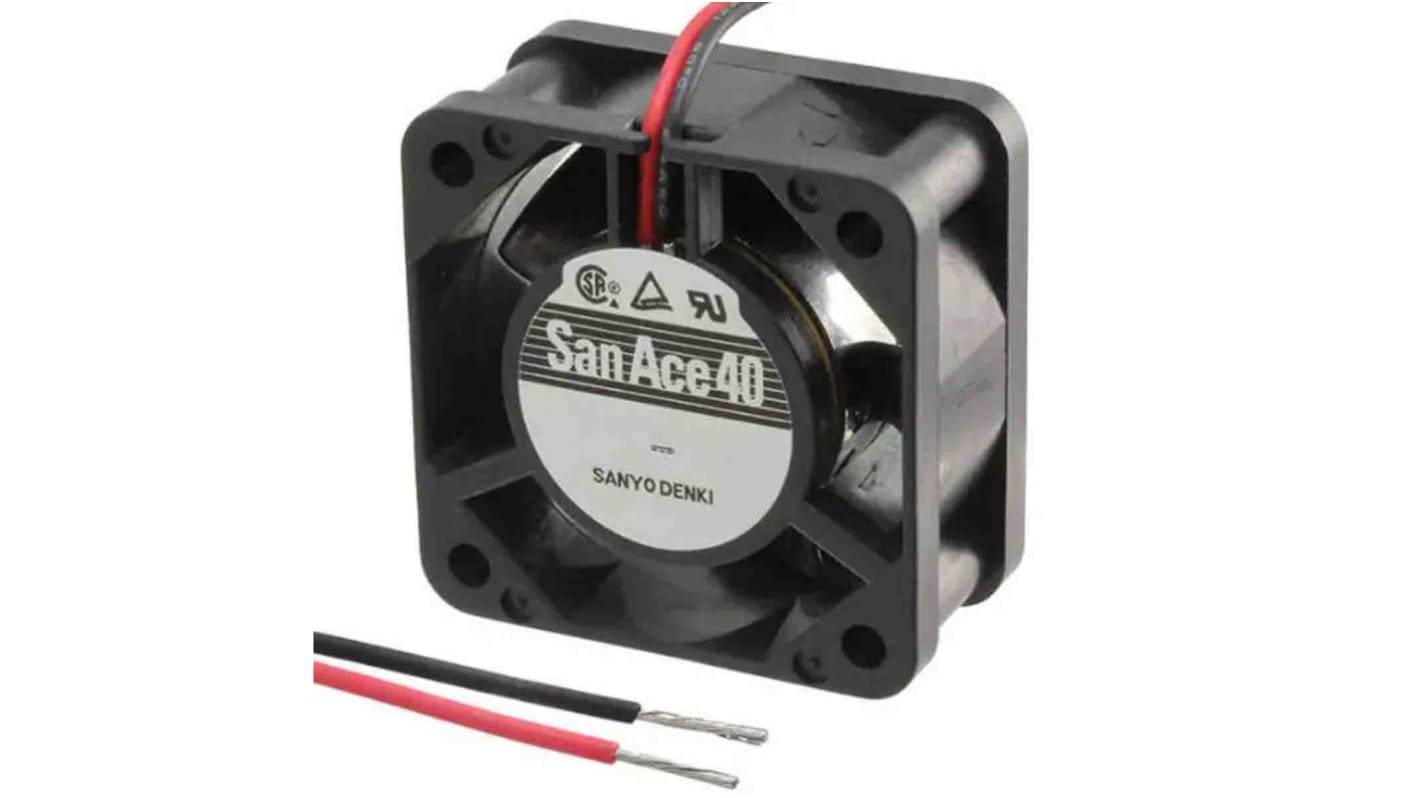

Sanyo Denki 109P Series Axial Fan, 24V dc, 8.2 cfm, 1.68 W, 70 mA Max, IP68 40 mm 40mm 20 mm
- RS Stock No.:
- 191-9238
- Distrelec Article No.:
- 301-40-212
- Mfr. Part No.:
- 109P0424H602
- Brand:
- Sanyo Denki
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£14.05
(exc. VAT)
£16.86
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 171 unit(s) shipping from 13 July 2026
- Plus 305 unit(s) shipping from 13 July 2026
- Plus 140 unit(s) shipping from 23 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £14.05 |
| 5 - 9 | £13.21 |
| 10 - 24 | £12.35 |
| 25 - 49 | £11.80 |
| 50 + | £10.68 |
*price indicative
- RS Stock No.:
- 191-9238
- Distrelec Article No.:
- 301-40-212
- Mfr. Part No.:
- 109P0424H602
- Brand:
- Sanyo Denki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sanyo Denki | |
| Product Type | Axial Fan | |
| Supply Voltage | 24V dc | |
| Power Consumption | 1.68W | |
| Maximum Current | 70mA | |
| Air Flow | 8.2cfm | |
| Noise Level | 35dBA | |
| Fan Speed | 6300rpm | |
| Direction of Curve | Forward | |
| Terminal Type | Wire | |
| Fan Frame Type | Square | |
| Bearing Type | Ball | |
| Fan Frame Size | 40 mm | |
| Depth | 20mm | |
| Height | 40mm | |
| Width | 40mm | |
| Standards/Approvals | RoHS | |
| Series | 109P | |
| IP Rating | IP68 | |
| Select all | ||
|---|---|---|
Brand Sanyo Denki | ||
Product Type Axial Fan | ||
Supply Voltage 24V dc | ||
Power Consumption 1.68W | ||
Maximum Current 70mA | ||
Air Flow 8.2cfm | ||
Noise Level 35dBA | ||
Fan Speed 6300rpm | ||
Direction of Curve Forward | ||
Terminal Type Wire | ||
Fan Frame Type Square | ||
Bearing Type Ball | ||
Fan Frame Size 40 mm | ||
Depth 20mm | ||
Height 40mm | ||
Width 40mm | ||
Standards/Approvals RoHS | ||
Series 109P | ||
IP Rating IP68 | ||
- COO (Country of Origin):
- PH
Our DC cooling fans have features such as high airflow, high reliability, and low noise. They can be used in a wide-ranging applications including servers and ICT equipment.
The San Ace DC Fans feature high airflow, high static pressure, low power consumption, and low vibration. In the development phase, we thoroughly reviewed impeller shape, motor characteristics, operating airflow, and expected life to achieve target performance. We realized excellent cooling performance by leveraging our technology accumulated over a long period of time.
The Sanyo Denki DC fan of series San Ace 109P has a plastic frame having flammability of UL 94V-0. Its impeller is also made up of plastic. It has -30°C to +70°C storage temperature.
Locked rotor burnout protection
Reverse polarity protection
